Mobatime DTS 4128.timeserver Instruction Manual

Network time server
Hide thumbs Also See for DTS 4128.timeserver:
Table of Contents

Advertisement

Quick Links

Download this manual

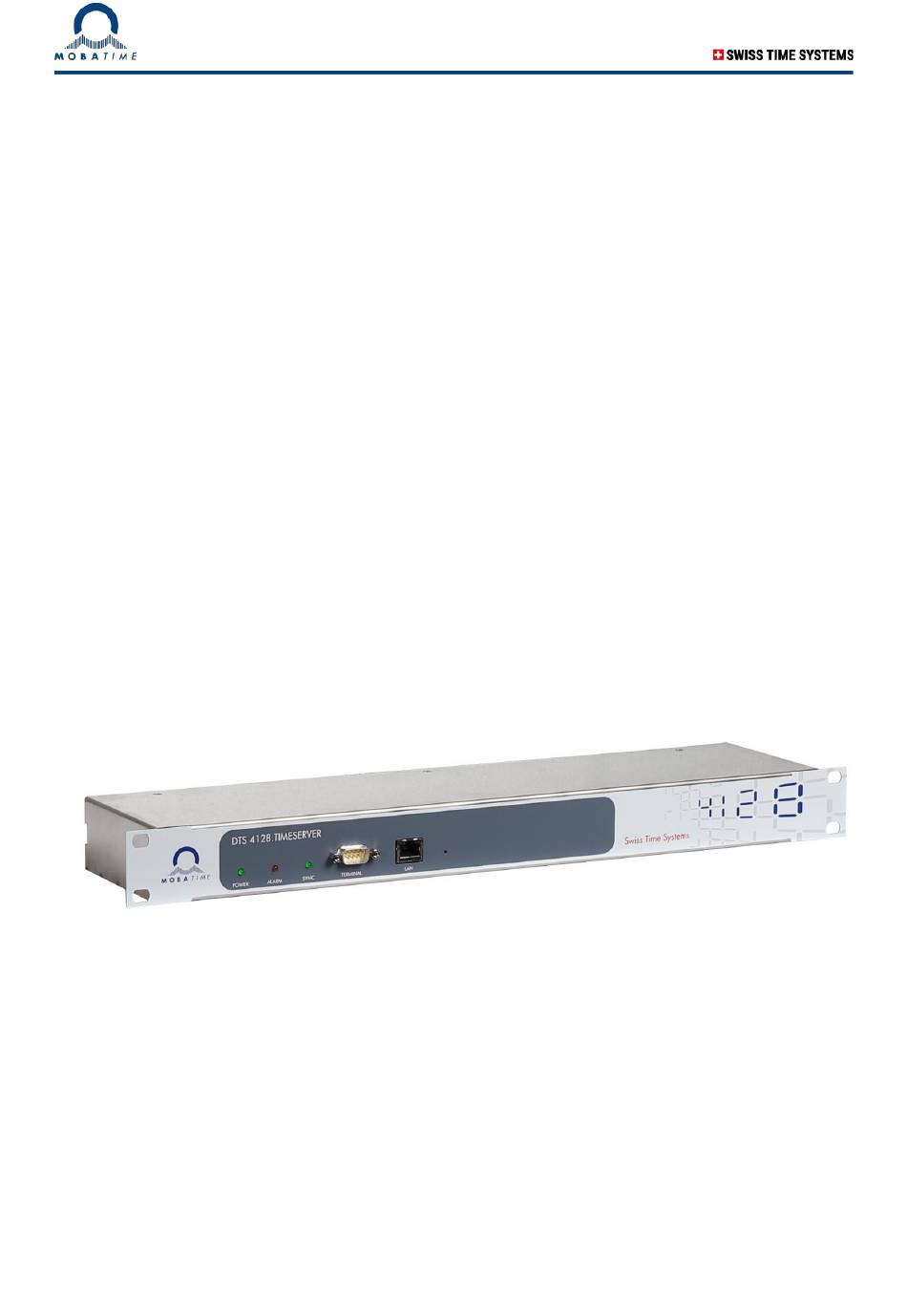

INSTRUCTION MANUAL
DTS 4128.timeserver
Network Time Server
© MOBATIME
BE-800847.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS 4128.timeserver and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobatime DTS 4128.timeserver

Summary of Contents for Mobatime DTS 4128.timeserver

  • Page 1 INSTRUCTION MANUAL DTS 4128.timeserver Network Time Server © MOBATIME BE-800847.08...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    B Time zone table ..........................72 C Alarm list ............................74 D Troubleshooting..........................75 E Copyright notice ..........................76 F Technical data ..........................77 G Index ............................. 79 H Connection table (to fill in) ......................81 © MOBATIME 3 / 84 800847.08...
  • Page 4 6.5.7 Redundant operation ......... 30 G Index ............79 6.5.8 NTP server ..........31 6.5.9 Manual time set / Leap second ....35 H Connection table (to fill in) ......81 6.5.10 Alarms ............36 © MOBATIME 4 / 84 800847.08...

  • Page 5: Safety

    This information must be followed! Intended Use The DTS 4128.timeserver is a time server for the use in network environments. It can be synchronized from NTP and be used as NTP server. In addition, it can read the time from DCF or GPS (e.g. from GNSS 4500).

  • Page 6: Observe Operating Safety

     Use encrypted services (SSH, SCP, SFTP)  All unused services shall be deactivated: FTP, Telnet, ...  Refer to our Security Guidelines TE-801312 (see "http://www.mobatime.com" – Login area: > Customer_area > Product_Resources - 10_Timerserver_TimeCenter).

  • Page 7: Pay Attention To The Instructions For The Connection Of The Power Supply

    Before working on a device or on the electrical installations the corresponding circuits have to be switched off and secured against uncontrolled power on. © MOBATIME 7 / 84 800847.08...

  • Page 8: Maintenance

    Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 8 / 84 800847.08...

  • Page 9: General Information: Introduction

    Technical Data See Appendix F Technical data. Introduction The DTS 4128.timeserver is a NTP Time Server for use in network environments. It can be synchronized by DCF or GPS (e.g. from GNSS4500) and act as a NTP server in a network.

  • Page 10: Device Types

    DTS 4128.timeserver 117973 Device descriptions: The front plate always has DTS 4128.timeserver printed on it. The precise description is made on the identification plate on the back. DTS distributed time system The DTS (Distributed Time System) is a system developed by Moser-Baer AG to connect decentralized master clocks, slave clock lines and time servers.

  • Page 11: Moba-Nms - Network Management System

    MOBA-NMS is a software used for central management and inquiry of state and alarm information. It supports DTS devices as well as all MOBATime analog and digital network clocks and can handle a network with more than 1000 devices. This software provides extensive functions for the configuration, installation, back-up / recovery etc.

  • Page 12: Device Management

    3.6.2 Device management All MOBATime network devices are displayed in the so-called device view. Here, the devices can be grouped according to user-defined criteria. For this, the individual devices can simply be moved to the according groups and sorted using drag and drop. There is no limit to the number of groups and sub-groups.

  • Page 13: Displays

    No connection to network Right Yellow 10 Mbit 100 Mbit LED indication back side DTS Link TX RX 24V DC +20/-10% max: 10W Description Color Status Description DCF reception red Blinking DCF (GPS reception) © MOBATIME 13 / 84 800847.08...

  • Page 14: Installation

    "off" in the network settings. Firmware It is recommended to install the current firmware on your device prior to the definite commissioning. The current firmware can be found under www.mobatime.com  Customer Data  Product Ressources  Time Server. © MOBATIME 14 / 84 800847.08...

  • Page 15: Basic Settings (Factory Settings)

    NTP slave clocks / Time zone server Network DHCP Autoconf IPv6 DHCPv6 Hostname DTS4128 Link auto Alarm Relay all on Mail SNMP traps Trap-Community trapmobatime NW Services Telnet SNMP Modus RO-Community romobatime RW-Community rwmobatime © MOBATIME 15 / 84 800847.08...

  • Page 16: Operation

    Backspace must be set to "delete“ with the serial terminal. Local echo: Some terminals (serial or Telnet) do not display the characters entered. It is, therefore, necessary to switch on the "local echo" in the terminal. © MOBATIME 16 / 84 800847.08...

  • Page 17: Serial Connection

    6.1.2 Telnet Windows 10, 11: e.g. with Putty User: dts Standard Passwort: dts Start console and enter “telnet [IP-address]" Linux: 6.1.3 Windows 10, 11: z.B. mit Putty Start console and enter “ssh dts@[IP-address]“ Linux: © MOBATIME 17 / 84 800847.08...

  • Page 18: Menu Structure

    6.1.4 Menu structure DTS 4128.timeserver Moser-Baer AG parameters ==================================== Menu title TIME SOURCE Source type Alarm delay for failure of the source Menu options 10min DTS stratum (0=auto, 1-15=fix) Stratum limit for synchalarm Stratum TO (0-16) DCF/GPS fail Offset per stratum 50ms Max.

  • Page 19: Moba-Nms Operation

    Important: In order for the communication between MOBA-NMS and the DTS devices to work, SNMP must be activated! Set terminal menu „Configuration  SNMP  SNMP Mode“ to „on“. SNMP is active by default. © MOBATIME 19 / 84 800847.08...

  • Page 20: Main Menu

    Main menu DTS 4128.timeserver Moser-Baer AG ==================================== MAIN SELECTION Status (Actual alarms and history, timesource state, version Configuration (Configuration of the lines, timesources, alarms ...) Maintenance (Update, backup ...) 99 Exit DTS menu Enter desired menu number> Menus: Status: Display of various information regarding operation and environment See Chapter “6.4 Status Menu“...

  • Page 21: Status Menu

    Status menu The status menu consists of 2 pages. Status menu page 1: DTS 4128.timeserver Moser-Baer AG ==================================== STATE Page 1 Alarm state Alarm history Time Source Power Info network config. Internal state Product information Versions of the software Press enter for next part, 99 to leave>...

  • Page 22: Time Information And Status

    Status menu page 2 DTS 4128.timeserver Moser-Baer AG ==================================== STATE Page 2 11 NTP peer state (ntpq -np) 12 NTP state (ntpq -c rl) Press enter for next part, 99 to leave> Path: 1 Status [Enter] Display of information with regard to the internal state of the NTP server.

  • Page 23: Time Source Information

    6.4.2 Time source information DTS 4128.timeserver Moser-Baer AG ==================================== TIMESOURCE INFORMATION Actual measured offset 0us GPS FPGA Last time received DCF 07:18:00 26.08.20 UTC (10) Sec. counter DCF Last time received link 06:49:00 26.08.20 UTC Sec. counter link NTP source...

  • Page 24: Configuration Menu

    Configuration menu DTS 4128.timeserver Moser-Baer AG ==================================== CONFIGURATION Line Time handling Alarms General Network Services (FTP, telnet, SSH) SNMP 99 Return Enter desired menu number> Path: 2 Configuration Configuring the DTS 4128 through various submenus: Configuring the lines / outputs (DCF out, NTP slave clock line) See Chapter "6.5.1 Lines"...

  • Page 25: Dcf - Output

    DCF – output 6.5.2 The DTS 4128 is equipped with one DCF output line. This line is available as an electrical current loop DCF output. The settings of the DCF line: DTS 4128.timeserver Moser-Baer AG ==================================== DCF OUTPUT Mode (0=off, 1=DCF)

  • Page 26: Ntp Slave Clocks / Time Zone Server

    = Send an empty Time zone table and return to previous mode. 2. Multicast adress for NTP and time zone server: 239.192.54.x Group address: x = 1..15 for MOBATIME devices, e.g. NCI, SEN 00. 3. Multicast port for Time zone server (enter an arbitrary value, empty is not allowed ! Value e.g.: 65530).

  • Page 27: Time Administration

    (the DTS with the more frequently NTP send rate gets higher priority for time reception). Time zone table for the NTP slave clock line: DTS 4128.timeserver Moser-Baer AG ==================================== TIME ZONE - TABLE...

  • Page 28: Time Source

    6.5.5 Time source Time source configuration. DTS 4128.timeserver Moser-Baer AG ==================================== TIME SOURCE Source type Alarm delay for failure of the source 10min DTS stratum (0=auto, 1-15=fix) Stratum limit for synchalarm Stratum TO (0-16) DCF/GPS fail Offset per stratum 50ms Max.

  • Page 29: Time-Keeping

    6.5.6 Time-keeping DTS 4128.timeserver Moser-Baer AG ==================================== TIME ADJUSTMENT CONFIGURATION Adjustmode (0=follow, 1=set) Max. catch up speed 100000ns/s Time core type (0-255, default 0) Synch. only offset 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 30: Redundant Operation

    6.5.7 Redundant operation DTS 4128.timeserver Moser-Baer AG ==================================== REDUNDANT OPERATION Mode (0=single, 1=red., 2=red. LAN1-LAN2) 0 Stratum limit (1-16) Max. offset to slave source 100000us Port for LAN link 14338 IP address 2. timeserver Set master manual 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 31: Ntp Server

    (redundancy) to the actual time source. The exact behavior of NTP time sources is described in chapter "8.3 Time acceptance from NTP". Further two multicast or broadcast addresses can be configured. DTS 4128.timeserver Moser-Baer AG ==================================== NTP SERVER CONFIGURATION Configuration timeserver address 1 10.241.17.1...
  • Page 32 Configuration of the individual server/peer address is as follows: DTS 4128.timeserver Moser-Baer AG ==================================== ENTRY TIMESOURCE Source 10.241.17.1 Minpoll Maxpoll Server/Peer server Prefer Authentication key 98 Return and save 99 Return and discard changes Enter desired menu number>  ...
  • Page 33 Configuration of the Multi- / Broadcast address is as follows: DTS 4128.timeserver Moser-Baer AG ==================================== NTP MULTI- / BROADCAST-ENTRY Multi- or broadcast IP address Interval 4sec TTL (only for multicast) 1hops Authentication key 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 34 Configuration of the NTP authentication: The NTP authentication is described in chapter "8.8 NTP Authentication". DTS 4128.timeserver Moser-Baer AG ==================================== NTP AUTHENTICATION Import keys (from /ram) Export keys (to /ram) Trusted (active) keys 12 8 15 Request keys (ntpq) Control keys (ntpdc)

  • Page 35: Manual Time Set / Leap Second

    6.5.9 Manual time set / Leap second DTS 4128.timeserver Moser-Baer AG ==================================== MANUAL TIME SET Set time (UTC) Adjust time Leap second mode Leap second date (UTC) 00:00:00 01.07.00 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 36: 6.5.10 Alarms

    Alarm relays  see Chapter 6.5.11  E-Mail  see Chapter 6.5.13  SNMP-Traps  see Chapter 6.5.14 6.5.11 Alarm relay DTS 4128.timeserver Moser-Baer AG ==================================== ALARM KONFIGURATION 2 Alarmmaske fuer Relais 98 Zurueck und speichern 99 Zurueck und Aend. verwerfen Gewuenschte Nummer eingeben>...

  • Page 37: 6.5.12 Alarm Mask

    6.5.12 Alarm mask DTS 4128.timeserver Moser-Baer AG ==================================== ALARMMASK Page 1 [ ]=error disabled, [*]=error enabled [*] Bit00: DTS restart [*] Bit01: Error bit1 [*] Bit02: Supply voltage too low [*] Bit03: Error bit3 [*] Bit04: Error bit4 [*] Bit05: Error bit5...

  • Page 38: 6.5.13 E-Mail

    6.5.13 E-mail DTS 4128.timeserver Moser-Baer AG ==================================== MAIL CONFIGURATION Page 1/2 Mailmode Alarmmask for mail ff ff ff ff ff ff ff ff Mailserver 10.241.0.3 Mailport (default 25) Destination mail address1 mail1@test.org Destination mail address2 Reply mail address mail1@test.org From mail address mail1@test.org...
  • Page 39 E-mail configuration page 2: DTS 4128.timeserver Moser-Baer AG ==================================== MAIL CONFIGURATION2 Page 2/2 11 Authentication mode 12 User name User1 13 Password password 98 Return and save, enter for next page 99 Return and discard changes Enter desired menu number>...

  • Page 40: 6.5.14 Snmp Traps

    6.5.14 SNMP traps For a description of SNMP functionality, see also Chapter “9 SNMP“. Traps are also designated as notifications (from SNMP V2) DTS 4128.timeserver Moser-Baer AG ==================================== SNMP-TRAP CONFIGURATION Trap mode Alarmmask for trap ff ff ff ff ff ff ff ff...
  • Page 41 Configuration of the receiving systems DTS 4128.timeserver Moser-Baer AG ==================================== SNMP-TRAP DESTINATION CONFIGURATION Address trap destination 10.240.10.44 Port trap destination (default 162) SNMP version 98 Return and save 99 Return and discard changes Enter desired menu number>  3 Alarms  3 Traps  4-5 Configuration of destination Path: 2 Configuration 1.

  • Page 42: 6.5.15 General Settings

    6.5.15 General settings DTS 4128.timeserver Moser-Baer AG ==================================== GENERAL SETTINGS Language Timezone displayed times [+1] Brussel Password (menu) 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration 4 General Setting the display language Setting the time zone for the display, and also all alarm logs, e-mail and SNMP.

  • Page 43: 6.5.16 Network

    6.5.16 Network DTS 4128.timeserver Moser-Baer AG ==================================== NETWORK GENERAL IPV4 Configuration IPV6 Configuration Host name (Device name) DTS4128 Domain name Network Interface auto 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration 5 Network...
  • Page 44 Notice: Only one DNS server should be configured (IPv4 or IPv6). Notice: Modifications to the network must be coordinated with the network administrator! Network configuration IPv4: DTS 4128.timeserver Moser-Baer AG ==================================== NETWORK IPV4 DHCP IP address 10.242.17.28 Subnet mask 255.240.0.0 Gateway 10.240.2.1...
  • Page 45 Network configuration IPv6: DTS 4128.timeserver Moser-Baer AG ==================================== NETWORK IPV6 Mode / Autoconf DHCPv6 IP address 1 / Prefix 0::0/64 Gateway 1 0::0 DNS server 0::0 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration 5 Network  2 IPV6 Configuration...

  • Page 46: Services (Network Services Ftp, Telnet, Ssh

    6.5.17 Services (network services FTP, telnet, SSH...) Network services configuration: DTS 4128.timeserver Moser-Baer AG ==================================== NETWORK SERVICES telnet 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration 6 Services (FTP, telnet, SSH) 1-3. Switch the individual services off or on.

  • Page 47: 6.5.18 Snmp

    6.5.18 SNMP For a description of SNMP functionality, see also Chapter “9 SNMP“. DTS 4128.timeserver Moser-Baer AG ==================================== SNMP CONFIGURATION SNMP mode Alarmmask for SNMP ff ff ff ff ff ff ff ff DTS location Contact information SNMP V1/V2c security configuration...

  • Page 48: 6.5.19 Snmp V1 / V2C

    6.5.19 SNMP V1 / V2c DTS 4128.timeserver Moser-Baer AG ==================================== SNMP V1/V2c CONFIGURATION Readonly community string romobatime Read/write community string rwmobatime 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration 7 SNMP  5 SNMP V1/V2c security configuration Community string for read only (Group membership for GET).

  • Page 49: 6.5.20 Snmp V3

    6.5.20 SNMP V3 DTS 4128.timeserver Moser-Baer AG ==================================== SNMP V3 CONFIGURATION User 1 configuration (dtsUser1) User 2 configuration (dtsUser2) Access 1 configuration (viewDTS1) Access 2 configuration (viewDTS2) 99 Return Enter desired menu number> Path: 2 Configuration 7 SNMP  6 SNMP V3 security configuration 1.
  • Page 50 User configuration SNMP V3: DTS 4128.timeserver Moser-Baer AG ==================================== SNMP V3 USER CONFIGURATION dtsUser1 Password for authent. and privacy mobatime Min security level priv Read access (read view) viewDTS1 Write access (write view) viewDTS2 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 51 Access configuration SNMP V3: DTS 4128.timeserver Moser-Baer AG ==================================== SNMP V3 ACCESS CONFIGURATION viewDTS1 Include OID 1 .1.3.6.1.4.1.8072 Include OID 2 .1.3.6.1.4.1.2021 Include OID 3 .1.3.6.1.4.1.13842.4 Exclude OID 1 Exclude OID 2 Exclude OID 3 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 52: 6.5.21 Time Zone Selection

    6.5.21 Time zone selection DTS 4128.timeserver Moser-Baer AG ==================================== SELECTION TIME ZONE Page 1 00: [0] UTC 01: [0] London * 02: [+1] Brussel 03: [+2] Athens 04: [+2] Bucharest 05: [+2] Cairo 06: [+2] Amman 07: [0] UTC 08: [+3] Kuwait...

  • Page 53: Maintenance Menu

    Maintenance menu DTS 4128.timeserver Moser-Baer AG ==================================== MAINTENANCE Update software Backup configuration Restore configuration (backup) Restore configuration (default MOBA) Restart device 99 Return Enter desired menu number> Path: 3 Maintenance 1. Initiating a software update (files must have been copied into the directory /ram of the DTS 4128 before).

  • Page 54: Updates

    2. During an update of the device the configuration of DTS 4128 is overwritten. To save dts4128.conf / dtsdevice.conf existing configuration, save file from directory /etc. After updating, rewrite the file to DTS 4128 (see chapter 5.2 Updating applications or configurations). © MOBATIME 54 / 84 800847.08...

  • Page 55: Updating Configurations

    (<5 min) and must not be interrupted under any circumstances. If interrupted, the software on the DTS 4128 will be destroyed and it has to be returned to the manufacturer for repairing. © MOBATIME 55 / 84 800847.08...

  • Page 56: Ftp Connection

    (as user dts). Change to the DTS 4128 directory /etc. Save the dts4128.conf / dtsdevice.conf (configuration) to the user PC (e.g. copy the file to the Desktop or to the directory My Documents). © MOBATIME 56 / 84 800847.08...
  • Page 57 Important: There is no compatibility between the configuration of a hardware V1 and V2 DTS 4128 device. The configuration can not be transfered . © MOBATIME 57 / 84 800847.08...

  • Page 58: Time Administration

    If St_fix > 0: then stratum = St_fix applies If Tst > 0 AND St_fix = 0: then stratum = MIN(Tdiff/Tst, St_max) applies If Tst = 0 AND St_fix = 0: then stratum = 1 (auto) applies © MOBATIME 58 / 84 800847.08...

  • Page 59: Time Acceptance From Ntp

    NTP provides two variants for authentication in version 4:  NTP symmetric keys (i.e. symmetric keys)  NTP autokeys NTP authentication assures a correct time source and prevents manipulation of NTP information. NTP data itself is, however, not encoded. © MOBATIME 59 / 84 800847.08...

  • Page 60: Ntp Symmetric Keys

    The signs ' ', '#', '\t', '\n' and '\0' are not used in the MD5 ASCII key! Key 0 is reserved for special purposes and should therefore not be used here. ntp.keys: man page for ntp.keys to be noted (check the internet) © MOBATIME 60 / 84 800847.08...

  • Page 61: Ntp Autokey

    The slave is always synchronized to the master in operation. The slave supervises the system time on the basis of its own GPS time and generates an error message, should the time difference amount exceed the configurable value of n milliseconds. © MOBATIME 61 / 84 800847.08...
  • Page 62 If the master is no longer accessible, no longer sends out any SINEC telegrams, or has a worse status, the slave assumes the master function. The NTP clients select the server with the lower stratum. © MOBATIME 62 / 84 800847.08...

  • Page 63: Snmp

    General DTS definition, always required DTS4128 (DTS4128-MIBv1.TXT) Device specific DTS definitions The MIB files can be copied from the DST 4128 with FTP (For FTP use, see Chapter “7.5 FTP Connection“): DTS-MIB: /etc/snmp/mibs/ Standard MIBS: /usr/share/snmp/mibs/ © MOBATIME 63 / 84 800847.08...

  • Page 64: Device Configuration With Snmp

    9.3.2 Shutdown [dts4128Shutdown] Sent out when the subagent for the DTS is stopped. This Notification is always sent out, as soon as SNMP is activated and a destination address is configured. © MOBATIME 64 / 84 800847.08...

  • Page 65: Status Changed [Dts4128Statuschanged]

    TimeTicks 4 Bytes The ConfigChangedTime variables show the time of the last change of the relevant configuration group. The management system can decide on the basis of these time values, which configurations need to be reloaded. © MOBATIME 65 / 84 800847.08...
  • Page 66 (Address, min/max poll, mode, prefer) dts4128RelayConfigChangedTime dts4128RelayAlarmMask dts4128MailConfigChangedTime dts4128MailMode dts4128MailAlarmMask dts4128MailServerIPAddress dts4128MailServerPort dts4128MailAddrDestination1 dts4128MailAddrDestination2 dts4128MailAddrReply dts4128MailAddrFrom dts4128MailUser dts4128MailPassword dts4128MailAuthMode dts4128SnmpConfigChangedTime dts4128SnmpMode © MOBATIME 66 / 84 800847.08...

  • Page 67: Alive Notification [Dts4128Alive]

    4 Bytes Contains the internal system status FFF870FF.FFFFFFFF dts4128SysAlarms Byte Array 8 Bytes 64 Bit Alarm flags ¦ ¦ ¦ 1.Byte Bit 0..7 ¦ ¦ 5.Byte 2.Byte Bit 8..15 ¦ 2.Byte 1.Byte 8.Byte Bit 56..63 © MOBATIME 67 / 84 800847.08...

  • Page 68: Alarm Notification [Dts4128Alarm]

    1 Bytes 0 = alarm bit was deleted 1 = alarm bit was set 946684805 dts4128TrapAlMsgErrorTime Unsigned 4 Bytes PC-time in seconds since 01.01.1970 00:00:00 Failure supply 1 dts4128TrapAlMsgErrorText Text 59 Bytes Error text © MOBATIME 68 / 84 800847.08...

  • Page 69: A Connection Diagrams

    Data Terminal Ready Request to Send Clear to Send Clear to Send Request to Send * At least needed connections. LAN Connection: Plug: RJ45 Interface: Ethernet, 10/100Mbit half or full duplex Use only shielded cables! © MOBATIME 69 / 84 800847.08...

  • Page 70: Connections (Rear View)

    DTS Link TX RX 24 V 24V DC +20/-10% +20%/-10% max: 10W 0.5 A DTS 4128.timeserver connections For technical data see in Appendix "F Technical data" Clamp Connection Description Earth connection DC in power supply + Input for external DC supply...

  • Page 71: Plug-In Spring Terminals

    2 operation tools are delivered with the accessory bag. Connection GNSS 4500 or DCF 450 DTS Link TX RX 24 V 24V DC +20/-10% +20%/-10% max: 10W 0.5 A white DCF receiver brown yellow GNSS 4500 green © MOBATIME 71 / 84 800847.08...

  • Page 72: B Time Zone Table

    Sun. Mar. (02:00) Sun. Nov. (02:00) La Paz Bogota, Lima, Quito New York, Eastern Time (US & Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) Chicago, Central Time (US & Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) © MOBATIME 72 / 84 800847.08...
  • Page 73 The Time Zone Table is usually updated as needed. The current table is available for download under the following address: www.mobatime.com  Customer Area  Customer Support  Support Resources  Time Zone Table. In case your device is equipped with a newer version than shown in this manual, the current time zone settings should be checked.

  • Page 74: C Alarm List

    Difference between slave and In slave mode only: check time sources local time source too large Local time source lost In slave mode only: check time sources 35 - 63 Error bit35 - 63 Not used © MOBATIME 74 / 84 800847.08...

  • Page 75: D Troubleshooting

    Needed information to Device type, part number, production number contact your and serial number: MOBATIME service Details are given on the adhesive type label. The following files must be provided for the analysis: All files (in .zip folders, separate for each device) from the directories /var/log/ and /etc/ and the file: /ram/trim.log.

  • Page 76: E Copyright Notice

    Licence text GPL, BSD and MIT: GPL version 2: http://www.gnu.org/licenses/gpl-2.0.html BSD: http://www.opensource.org/licenses/bsd-license.php http://www.opensource.org/licenses/with-license.php The source code of the open source projects running under GPL can be requested from Moser-Baer AG (support@mobatime.com). Handling costs will be charged! © MOBATIME 76 / 84 800847.08...

  • Page 77: F Technical Data

    -RFC 1112: Host extensions for IP multicasting -RFC 4601: Protocol Independent Multicast - Sparse Mode (PIM-SM) -RFC 3973: Protocol Independent Multicast - Dense Mode (PIM-DM) Time zones (see App. B) Up to 80 predefined, 20 programmable entries (PC Software Tool) © MOBATIME 77 / 84 800847.08...
  • Page 78 With LX standard longer cables can be achieved. DC power supply 24 VDC +20% / -10% / max. 10 W / 0.5 A Power supply output DC in voltage -2 V, max. 400 mA © MOBATIME 78 / 84 800847.08...

  • Page 79: G Index

    Front connections Parameters FTP tools Password 6, 16 Password configuration Problem solving GBIC 61, 70, 78 Redundant NTP Multicast time server Installation Redundant operation 30, 61 IPv4 configuration Request Key IPv6 configuration Restart DTS 4128.timeserver © MOBATIME 79 / 84 800847.08...
  • Page 80 Troubleshooting SNMP traps 40, 64 Trusted Key SNMP user configuration ttl (time to live) Software update Spring terminals Update software Standard settings Update time zone table Status menu Stratum 22, 58 World time Telnet © MOBATIME 80 / 84 800847.08...

  • Page 81: H Connection Table (To Fill In)

    Connection table (to fill in) Line Type Description Example: Line Type Description DCF DCF out DCF for master clock ETC1 © MOBATIME 81 / 84 800847.08...
  • Page 82 © MOBATIME 82 / 84 800847.08...
  • Page 83 © MOBATIME 83 / 84 800847.08...
  • Page 84 © MOBATIME BE-800847.08...
