LIGMAN UFUN-50003 Installation And Service Manual

INSTALLATION AND SERVICE MANUAL

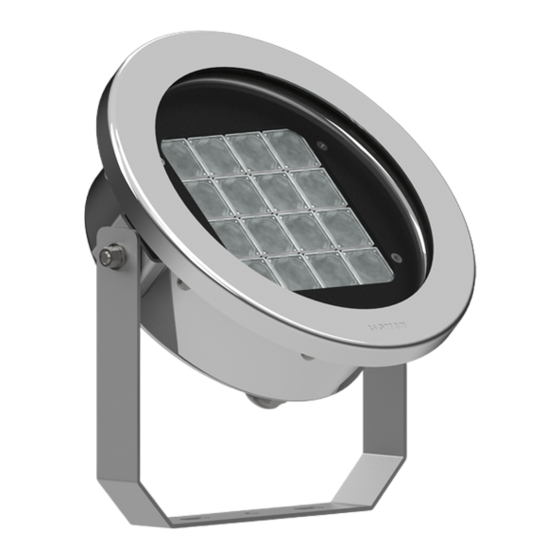

For Installation of Funen 1,2,3 Underwater lighting LED.
Model. UFUN-50003, UFUN-50013 and UFUN-50023
Product drawing (dimensions)
3.07"
1.58"
3.07"
3.78"
2.4"
4.73"
2.96"
4.73"
5.59"
4"
6.3"
4.53"
6.3"
7.27"
5.5"
use screw
stainless steel
only
SCREW : M5
SUPPLY
■ LIGMAN standard products are supplied with the control gear 24Vdc.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-18 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g USA
7144 NE Progress Court, Hillsboro
Oregon, 97124, USA
Tel : 503 645 0500 | Fax : 503 645 8100
www.ligmanlightingusa.com
2.22"
0.49"
1.67"
0.79"
UFUN-50003
2.3"
0.5"
3.17"
0.79"
UFUN-50013
2.44"
0.5"
4.66"
0.99"
UFUN-50023
Torque : 3.0 Nm.
UFUN-50003 08/03/2021 REV.A RON
50°
0.79"
15°
2.4"
MOUNTING DETAIL
70°
15°
0.79"
102
MOUNTING DETAIL
70°
0.99"
15°
2.76"
140
MOUNTING DETAIL
Red
( )Vdc+
1
(Black)Vdc-
!
WARNING
Switch off mains power supply
before joining the connectors
1/2
LIGHTING USA
IP68 IK07 CLASS III
Ø0.22"
0.24"x0.43"
1.38"
Ø0.22"
0.24"x0.43"
Max. 1.5M
Max.1m.
1.38"
Ø0.24"
0.24"x0.63"
FM-TS-13-1/13-05-2563/Rev.6
0.3m
2.5
8
TOOL
2
ADJUST
