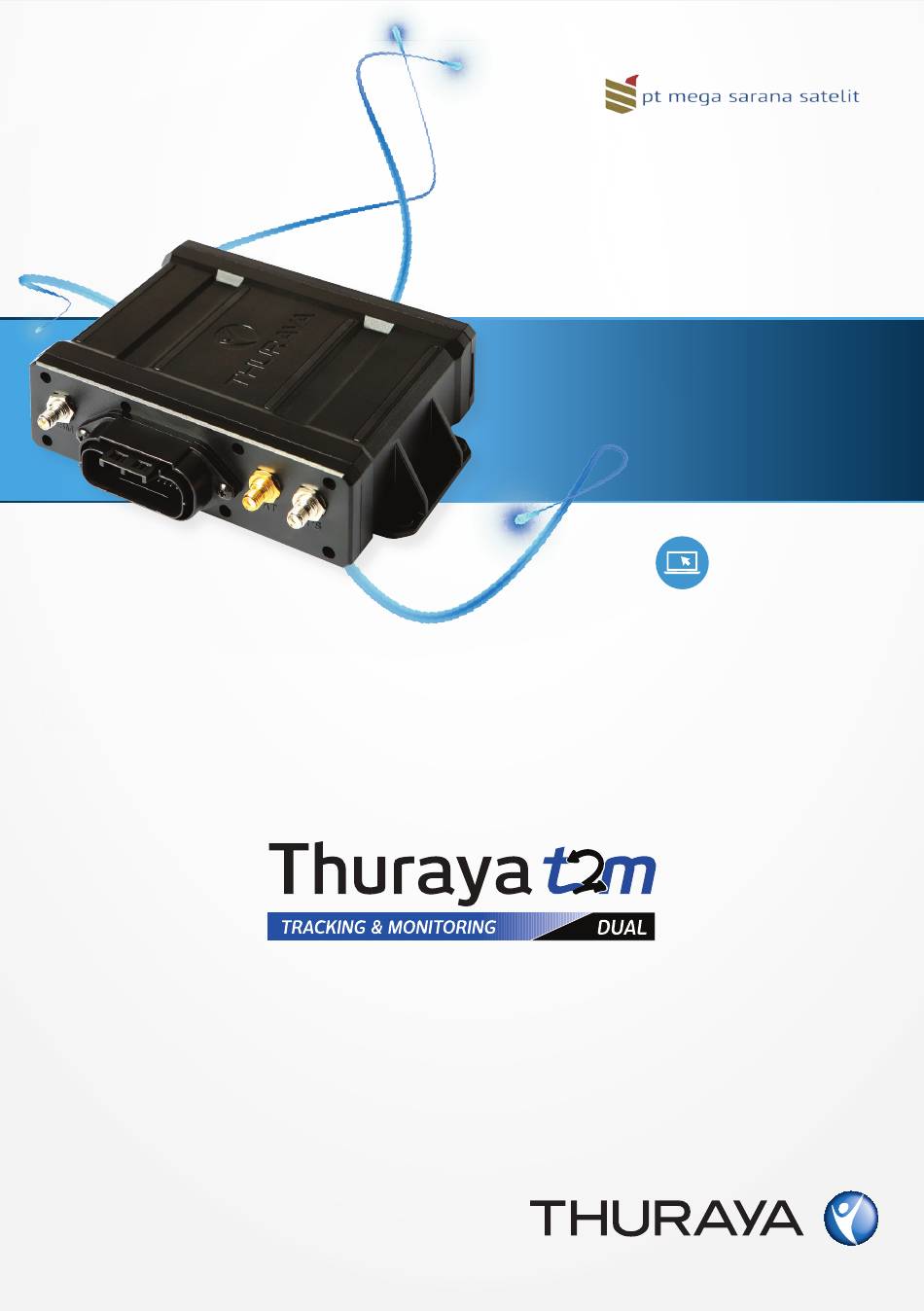

Thuraya T2M-DUAL
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2M-DUAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Thuraya T2M-DUAL

  • Page 1 Thuraya T2M-DUAL User Guide...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION......... 3 INSTALLATION ......... 24 Overview ..........3 Prepare for the installation ..24 T2M-DUAL System Diagram..3 Select the proper mounting locations ..........25 6.2.1 Antenna Location ......25 GETTING STARTED ......4 6.2.2 Terminal location ......26 In the Box ..........
  • Page 3 Thuraya T2M-DUAL TABLES TABLE 1 TERMINAL ANTENNA INTERFACES ..................... TABLE 2 TERMINAL REAR SIDE INTERFACE ....................TABLE 3 LED FUNCTIONS ............................TABLE 4 DIP SWITCH FUNCTIONS ........................TABLE 5 SAT&GPS ANTENNA ..........................10 TABLE 6 CONNECTOR PIN DESCRIPTION ....................12 TABLE 7 ANTENNA CABLES ..........................
  • Page 4 Thuraya T2M-DUAL Terms and Abbreviations Terms and Abbreviations Third Generation Analog to Digital Converters Battery Controller Area Network Dual In-line Package FOTA Firmware Over The Air GmPRS Geo Mobile Packet Radio Service GNSS Global Navigation Satellite System GPIO General Purpose Input Output...
  • Page 5: Introduction

    WEB interface or a mobile App. The Thuraya T2M-DUAL terminal gives users the ability to monitor and manage their mobile and fixed assets in real time to increase efficiency and reduce operational costs.
  • Page 6: Getting Started

    Thuraya T2M-DUAL 2 Getting Started IN THE BOX T2M-DUAL Terminal SAT & GPS Antenna I/O Cable Ass’y 5M RF Cables (SAT & GPS) Back-up Battery 3G External Antenna Fixing screws Figure 2 Box Contents...
  • Page 7: Connection Diagram

    SAT & GPS Antenna 3G Antenna GPS RF Cable SAT RF Cable Antenna Bracket Power I/O Signal 26 Pin I/O Cable Assembly Figure 3 T2M-DUAL Connection Diagram FEATURES • Satellite & 3G dual mode • 4 Digital Input / Output communication •...
  • Page 8: Hardware

    Thuraya T2M-DUAL 3 Hardware T2M - DUAL ( THURAYA TRACKING AND MONITORING ) 3G Antenna I/O Connector SAT Antenna GPS Antenna Figure 4 T2M-DUAL Terminal Front Side TABLE 1 TERMINAL ANTENNA INTERFACES Port Name Specifications Comments SAT Antenna Port SMA-Female...
  • Page 9: Table 2 Terminal Rear Side Interface

    Dip Switch Reset Button Back up Battery Status LED GSM SIM Card SAT SIM Card Rear Cover Figure 5 T2M-DUAL 1 Terminal Rear Side TABLE 2 TERMINAL REAR SIDE INTERFACE Port Name Specification Comment Li-Ion, 3000mAh Back up Battery Up to 24 hours back-up...
  • Page 10: Table 3 Led Functions

    Thuraya T2M-DUAL • LED Terminal Status indicators The terminal status indicator LEDs show the terminal status. There are 4 LEDs on T2M-DUAL. Below table shows the LED status descriptions. Figure 6 LEDs TABLE 3 LED FUNCTIONS ON 1 4 5 6...
  • Page 11: Table 4 Dip Switch Functions

    Thuraya T2M-DUAL • DIP Switch Figure 7 DIP Switch TABLE 4 DIP SWITCH FUNCTIONS Function Setting Description Reserved Reserved Reserved Reserved Reserved Ensure low voltage cut off • Switch up: 12V vehicle Vehicle Voltage to prevent vehicle battery Select • Switch down: 24V vehicle...
  • Page 12: Sat & Gps Antenna

    Thuraya T2M-DUAL SAT & GPS ANTENNA SAT Antenna Port GPS Antenna Port Bracket Magnet (Inside) Figure 8 SAT & GPS Antenna TABLE 5 SAT&GPS ANTENNA Specification Comment SAT Antenna Port SMA-Female Gold Color • Silver Color GPS Antenna Port SMA-Female •...
  • Page 13: I/O Cable Assembly

    Thuraya T2M-DUAL I/O CABLE ASSEMBLY The I/O cable assembly connects the terminal with the asset (vehicle, RTU, etc.) or sensor. It consists of a 26-pin waterproof connector. Figure 9 26 Pin I/O Cables Assembly The length of the cable assembly is 2 meters. Below is the cable assembly configuration...
  • Page 14: Table 6 Connector Pin Description

    Thuraya T2M-DUAL Below figure and table show the pin allocation of the connector Figure 11 Connector Pin Allocation TABLE 6 CONNECTOR PIN DESCRIPTION Name Type Description Name Type Description Car Battery BAT+ Power Power Ground Input CAN High CAN Low...
  • Page 15: Antenna

    Thuraya T2M-DUAL 3G ANTENNA The T2M-DUAL has a built in internal 3G antenna which is the default antenna. An additional external antenna is optional and can be connected to the T2M-DUAL to improve signal quality in weak signal areas or inside heavy equipment. When the external 3G antenna is installed, signal path will be automatically to the external antenna.
  • Page 16: Antenna Cables

    SMA(M)-SMA(M) Silver Color Cable 4 Functional Description In order to integrate third party solutions with the T2M-DUAL terminal, please refer to the “T2M-DUAL Protocol Document”. To configure the T2M-DUAL terminal please refer to the “T2M-DUAL Management Tool” document. COMMUNICATION MODE T2M-DUAL supports satellite and 3G dual mode communication.
  • Page 17: Track Mode And Gpio Mode

    • In GPIO mode the T2M-DUAL will collect and transmit GPIO data only. DATA LOGGER The T2M-DUAL can store more than 50,000 data points (basic data) to the internal memory. The logged data can be dumped from the terminal using “T2M-DUAL management tool”...
  • Page 18: Table 10 Necessary & Selectable Data

    Thuraya T2M-DUAL The table below details the necessary data and all selectable data. TABLE 10 NECESSARY & SELECTABLE DATA Collection Collection Data Necessary Selective Comment Method Time Longitude Latitude Angle • Default Data Wheel Based Speed CAN / Sensor RPM (Engine Speed)
  • Page 19: Data Sampling Interval (For Periodic Data)

    The interval of data collection and transmission can be set to different periods (e.g. collect every minute transmit every 10 minutes). The interval period can be set using the “T2M-DUAL management tool” or on the server remotely. It is recommended that the transmission period be an integer multiple of the collection period.
  • Page 20: Gpio Port

    GPIO PORT The T2M-DUAL has 8 I/O ports that can connect with external sensors. I/O Ports 1 to 4 are digital ports that can be set to input or output using the T2M-DUAL management tool. I/O ports 5 and 6 can be used as digital ports or analog ports. When used as digital ports they can be set to input or output using the T2M-DUAL management tool.
  • Page 21: J1939 Can Data

    1~ 99999 Brake High / Low 4.11 J1939 CAN DATA T2M-DUAL supports J1939 CAN specifications. Below table shows the CAN support data based on J1939 specifications. (It can vary by vehicle manufacturer and manufacturing year) TABLE 15 J1939 CAN DATA...
  • Page 22: Driving Report

    If the vehicle is outside the geo-fence, the terminal beeps and sends an alert/ event to the back-end application server. Geo-fences can be set by packet mode only. The T2M-DUAL terminal supports up to 128 geo-fencing polygons of geo-fence. A polygon can be defined by up to 64 points.
  • Page 23: O Ports Description

    Thuraya T2M-DUAL 5 I/O ports Description GPIO PORT The terminal’s 6 configurable GPIO lines are each independently operable in one of following modes: • Digital Input • Digital Output • Analog Input (I/O# 5, 6) • Disabled. 5.1.1 DIGITAL INPUT The figure below shows a schematic of the I/O when configured as a digital input.
  • Page 24: Digital Output

    Thuraya T2M-DUAL 5.1.2 DIGITAL OUTPUT The figure below shows a schematic of the I/O when configured as digital output. Please note the voltage and current curves. Figure 15 Digital Output...
  • Page 25: Analog Input

    The figure below contains a schematic of the I/O when configured as an analog input. Figure 16 Analog Input SERIAL INTERFACES There are 2 RS-232 (UART) ports in the T2M-DUAL terminal. The RS-232 interface defaults to the following settings: •...
  • Page 26: Installation

    1. Prepare the necessary tools and auxiliary materials for required for mounting the hardware 2. Set the terminal using “T2M-DUAL Management Tool” for communication mode, selectable data, server IP, short code and any other necessary configurations. 3. Insert the SIM cards and back up battery into the terminal and set the vehicle voltage DIP switch.
  • Page 27: Select The Proper Mounting Locations

    Thuraya T2M-DUAL SELECT THE PROPER MOUNTING LOCATIONS It is very important for the installer to select an unobstructed location for the antenna and a suitable location to install the terminal. 6.2.1 ANTENNA LOCATION The antenna is designed for optimal performance when installed on the roof of the vehicle.
  • Page 28: Terminal Location

    Thuraya T2M-DUAL 6.2.2 TERMINAL LOCATION Some suggested locations to install the T2M-DUAL terminal are under the passenger seat or under the dashboard. When mounting the T2M-DUAL, it is important to keep the terminal as horizontal as possible. MOUNTING THE ANTENNA The antenna should be fixed after selecting the proper mounting position.
  • Page 29: Mounting The Terminal

    Thuraya T2M-DUAL MOUNTING THE TERMINAL The T2M-DUAL terminal can be installed under the passenger seat or on or under the dashboard. When mounting the terminal, it is important to keep it as horizontal as possible. Below are the steps for installing the T2M-DUAL terminal.
  • Page 30: Figure 22 Installing The Rear Cover

    5. Close the rear cover of the terminal and fixing the 8 screws. Figure 22 Installing the rear Cover ü If the rear cover is not closed or all screws are not tightened, waterproof is not guaranteed. 6. Mount the T2M-DUAL terminal and fix the 4 screws Figure 23 Terminal mounting...
  • Page 31: Routing The Sat & Gps Antenna Cables

    Thuraya T2M-DUAL ROUTING THE SAT & GPS ANTENNA CABLES Connect the 5M RF cables from the antenna to the terminal. Route the RF cables so that the door or window closes properly and does not damage the cable. Be careful not to twist or break the cable and tighten the RF cable using cable tie.
  • Page 32: Specifications

    Humidity +70ºC/95%/48 Hours, Operating TERMINAL SPECIFICATIONS TABLE 17 TERMINAL SPECIFICATIONS Item Specification Descriptions Thuraya SM-2700 Support Thuraya Satellite Network Communication Modem 3G Data Modem Support Band I, Band V, Band VIII. Supports multi GNSS Chipset UBLOX-M8030 (GPS, GLONASS, Beidou, Galileo) GNSS •...
  • Page 33: Antenna Specifications

    Thuraya T2M-DUAL ANTENNA SPECIFICATIONS TABLE 18 ANTENNA SPECIFICATIONS Items Specification Frequency 1525Mhz ~ 1660.5 Mhz (SAT) Impedance 50Ω Polarization LHCP (SAT) / RHCP(GPS) Axial Ratio < 4dB Gain >5dBic@peak SAT & GPS Antenna Size 110 (D) x 42(H) [unit: mm]...
  • Page 34: Limited Warranty

    Buyer’s expense to a Thuraya Authorized Service Center during the Warranty Period, the Product will be repaired or replaced, at Thuraya’ sole and exclusive option, and at no charge to Buyer. Buyer will be required to provide reasonable proof of date of purchase.
  • Page 35 • operation or repair; performance of the Product when used in combination with other products or equipment not manufactured or provided by Thuraya • payments for labor or service to representatives or service centers not authorized by...
  • Page 36 visit-us: www.mss.id www.thurayatopup.id...
