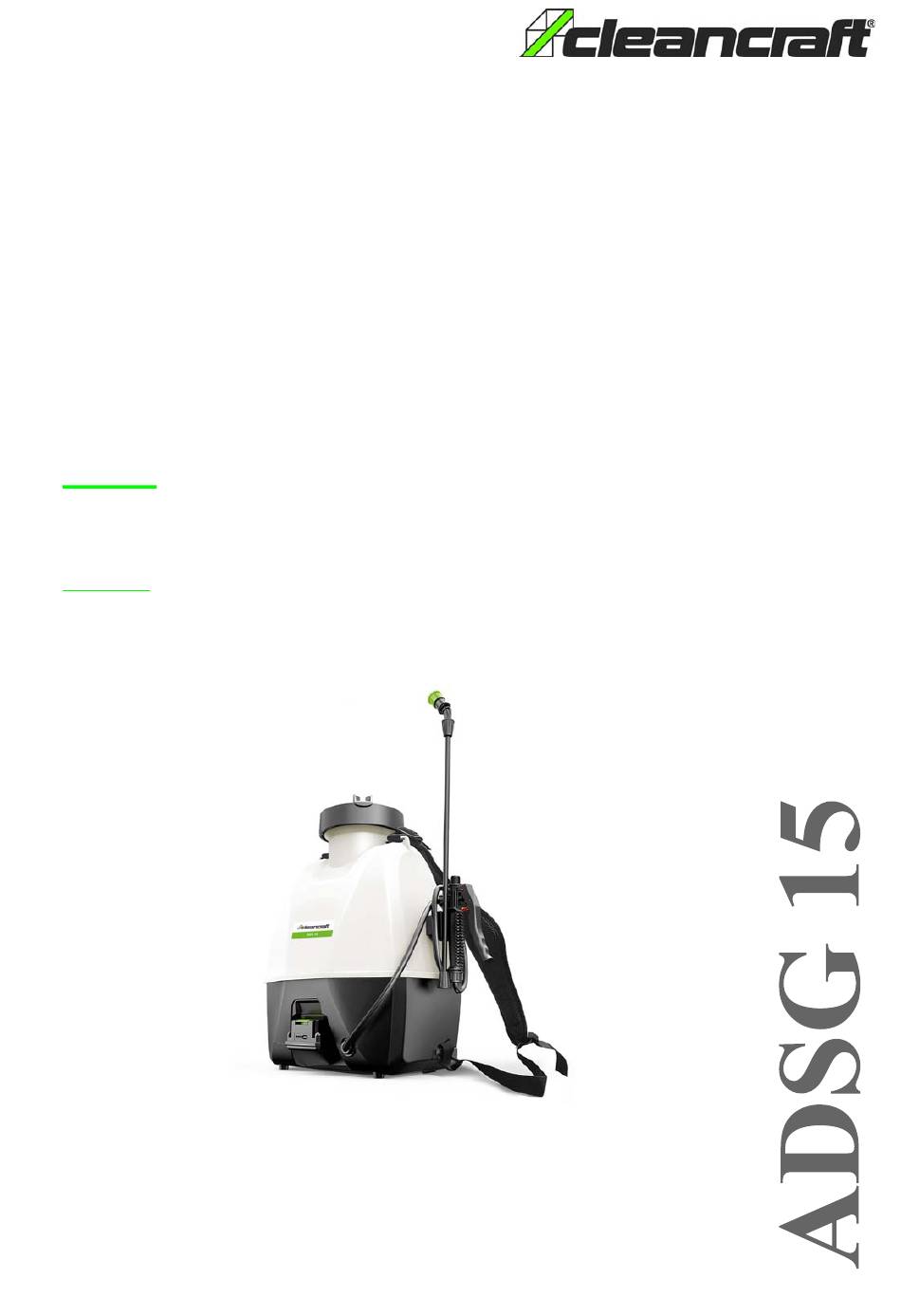

- Page 1 Operating Instructions Battery-operated pressure sprayer ADSG 15 ADSG 15...
-
Page 2: Table Of Contents
Stuermer Maschinen GmbH. Passing on as well copying of this document, the use and distribution of its content are prohibited if nit explicitly permitted. Contra-ventions ere liable to compensation. Subject to technical modifications and error. ADSG 15 | Version 1.03... -
Page 3: Introduction
This combination of symbol and signal word indicates even further. a potentially hazardous situation that, if not avoided, will result in death or serious injury. ADSG 15 | Version 1.03... -
Page 4: Obligations Of The Operating Company
She must implement these in form of oper- ating manuals for the operation of the the pressure sprayer. ADSG 15 | Version 1.03... -
Page 5: Personal Protective Equipment
Ear protection protects the ears from hearing dam- age caused by noise. Fig. 1: Wear protective clothing Face protection The face mask protects the face from flying around parts. Breathing protection Use the breathing protection! ADSG 15 | Version 1.03... - Page 6 Fig. 5: Allergic reaction Fig. 3: Consult a doctor if inhaled spray fog ADSG 15 | Version 1.03...
- Page 7 Fig. 6: Highly toxic plant protection products prohibited Do not leave the Pressure Sprayer unattended to avoid danger to the public. Fig. 9: Test run of the device with water only Fig. 7: Do not leave the device unattended ADSG 15 | Version 1.03...
- Page 8 Never disassemble, short circuit, heat to more than 60°C or throw into fire. Also keep out of the reach of children. Fig. 11: Observe mixing ratio ADSG 15 | Version 1.03...
-
Page 9: Safety Data Sheets
Notes on operation ATTENTION! Never operate the device with flammable, toxic liquids or liquids that could affect its proper operation. It is forbidden to operate the device in a flammable or explosive environment. ADSG 15 | Version 1.03... -
Page 10: Intended Use
Claims of any kind for damage due to im- proper use are excluded. ATTENTION! Sprayed/Atomized flammable liquids are highly flam- mable even at a flash point above 55°C. ADSG 15 | Version 1.03... -
Page 11: Technical Data
Charging time ca. 5 h ste disposal company. 5.3 Storage 4.2 Type plate Store the battery-operated pressure sprayer in a dry, clean and frost-free environment. Fig. 14: Type plate ADSG 15 | Version 1.03... -
Page 12: Description
Step 2: Install one of the four nozzles of the gun rod (The safety data sheet can be obtained from your (Fig.17). specialist dealer or by calling +49 (0)951/96555-0) - Charger 0,4 A - Harness - Battery pressure sprayer - Instruction manual ADSG 15 | Version 1.03... - Page 13 Fig. 19: Insert the battery Step 5: Test the battery pressure sprayer at first with wa- ter before adding chemicals (Fig. 20). Fig. 23: Spray gun with locking mechanism Fig. 20: Functional test with water ADSG 15 | Version 1.03...
-
Page 14: Electrical Connection
Operation Before Operation ATTENTION! WARNING! Only use CLEANCRAFT batteries and chargers for The Pressure Sprayer can be used with chemicals this device. Damages caused by the use of other bat- which can cause serious injuries through inhalation teries or chargers are not covered by the warranty. -
Page 15: Cair, Maintenance, Repair
Turn off the spray switch and remove the battery before servicing, cleaning and repairing the unit. Contact CLEANCRAFT for maintenance and use of ori- ginal accessories. Turn the unit off with the OFF switch when: - Start or stopfails. -
Page 16: Maintenance And Repair
- Disconnect it from the charger. purchased the product. - Do not throw the battery in the household waste - Dispose of the battery according to local laws and regulations. ADSG 15 | Version 1.03... -
Page 17: Spare Parts
- Position number: The part number of your device: NOTE! Battery-operated pressure sprayer ADSG 15: 7350000 The manufacturer's warranty expires if unauthorized spare parts are used. Spare parts are available from authorised retailers or di- rectly from the manufacturer. -
Page 18: Spare Parts Drawing
Spare Parts 12.2 Spare Parts Drawing The following drawing should help to identify the necessary spare parts in case of service. Spare parts drawing 1 Fig. 26: Spare parts drawing 1 ADSG 15 | Version 1.03... - Page 19 Screw Back board Screw Hook for lance Inlet line connector Inlet pipe Pump Pump label Hose clamp Elastic clamp Battery pack socket Screw Outlet pipe jacket Battery pack Charger Belt/Strap rod components Outlet pipe assemble ADSG 15 | Version 1.03...
-
Page 20: Electrical Wiring Diagram
Electrical wiring diagram Position Designation Quantity Spray gun Conical nozzle Flat blower nozzle Double-holed nozzle Adjustable shower nozzle 13 Electrical wiring diagram pump switch Battery pack Fig. 27: Electrical wiring diagram ADSG 15 | Version 1.03... -
Page 21: Ec Declaration Of Conformity
Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus- Part 2: Immunity - Product family standard (CISPR 14-2:2015) Responsible for documentation: Kilian Stürmer, Stürmer Maschinen GmbH, Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt Hallstadt, 07.09.2020 ______________________ Kilian Stürmer Geschäftsführer ADSG 15 | Version 1.03... - Page 22 www.cleancraft.de...
