Trox XS Series Installation Manual

Splitter sound attenuator

Advertisement

Quick Links

Product overview

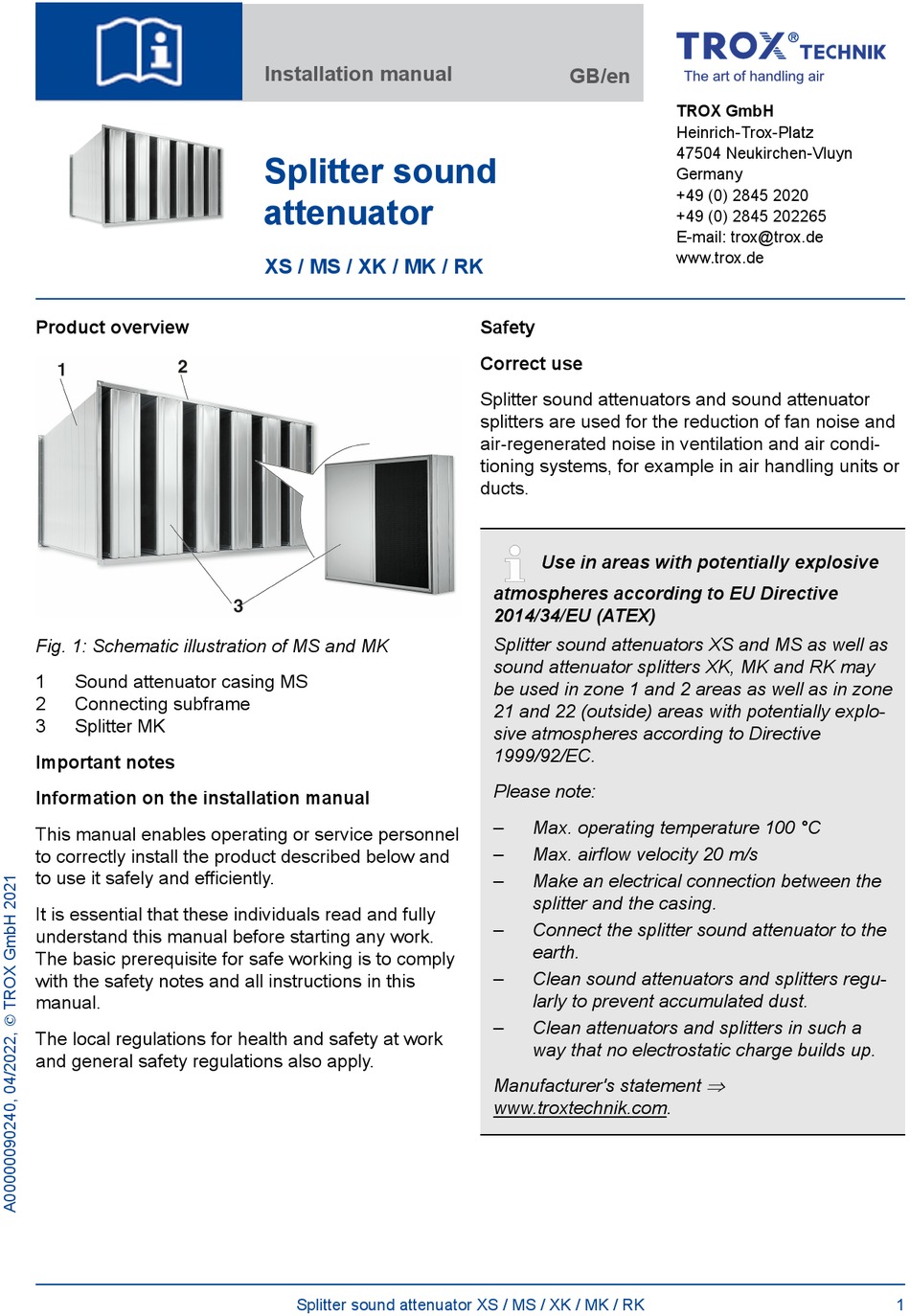

Fig. 1: Schematic illustration of MS and MK
1
Sound attenuator casing MS
2
Connecting subframe
3
Splitter MK
Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Installation manual
Splitter sound
attenuator
XS / MS / XK / MK / RK
Splitter sound attenuator XS / MS / XK / MK / RK
GB/en
Safety
Correct use
Splitter sound attenuators and sound attenuator
splitters are used for the reduction of fan noise and
air-regenerated noise in ventilation and air condi-
tioning systems, for example in air handling units or
ducts.
Use in areas with potentially explosive
atmospheres according to EU Directive
2014/34/EU (ATEX)
Splitter sound attenuators XS and MS as well as
sound attenuator splitters XK, MK and RK may
be used in zone 1 and 2 areas as well as in zone
21 and 22 (outside) areas with potentially explo-
sive atmospheres according to Directive
1999/92/EC.
Please note:
Max. operating temperature 100 °C
Max. airflow velocity 20 m/s
Make an electrical connection between the
splitter and the casing.
Connect the splitter sound attenuator to the
earth.
Clean sound attenuators and splitters regu-
larly to prevent accumulated dust.
Clean attenuators and splitters in such a
way that no electrostatic charge builds up.
Manufacturer's statement
www.troxtechnik.com.
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
+49 (0) 2845 2020
+49 (0) 2845 202265
E-mail: trox@trox.de
www.trox.de
Þ
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Trox XS Series

  • Page 1 Installation manual GB/en TROX GmbH Heinrich-Trox-Platz 47504 Neukirchen-Vluyn Splitter sound Germany +49 (0) 2845 2020 attenuator +49 (0) 2845 202265 E-mail: trox@trox.de www.trox.de XS / MS / XK / MK / RK Product overview Safety Correct use Splitter sound attenuators and sound attenuator...
  • Page 2 Modifying the unit or using replacement parts that have not been approved by TROX is not permitted. Protective gloves Staff Qualification The work described in this manual has to be carried...
  • Page 3: Transport, Storage And Packaging

    Transport, storage and packaging Transport, storage and packaging Installation Delivery check General installation information Check delivered items immediately after arrival for Personnel: transport damage and completeness. In case of any HVAC technician  damage or an incomplete shipment, contact the Protective equipment: shipping company and your supplier immediately.
  • Page 4: Installation

    Installation Installation types Fig. 2: Horizontal duct, splitters upright (recom- mended) Fig. 4: Vertical duct Size limit for installation in vertical ducts: Splitter size: H = 1200 mm L = 1500 mm,  Fig. 3: Horizontal duct, splitters lying flat Ä...
  • Page 5 Installation Upstream section NOTICE! Risk of damage due to turbulent airflow A turbulent airflow may cause damage to the splitters. This is why a straight upstream section is required upstream of the sound attenuator. The recommended minimum upstream section Fig. 7: Horizontal airflow, splitters upright depends on the change of direction, change of cross-section and splitter arrangement, see Fig.
  • Page 6 Angle section frames (W) may have a varying number of screw holes, depending on their size. Suitable matching frames are avail- able from TROX; they come screw-fixed to the attenuator if you have ordered them. Duct connec- tion requires a seal (by others).
  • Page 7 Installation Width Height B [mm] No. of holes H [mm] No. of holes 1159 - 1308 1130 - 1279 1309 - 1458 1280 - 1429 1459 - 1608 1430 - 1579 1609 - 1758 1580 - 1729 1759 - 1908 1730 - 1800 1909 - 2058 2059 - 2208...
  • Page 8 Installation Subdivided angle section frame (W) For type MS with the length subdivided be sure to arrange the splitters in the correct order Width Height Ä 5.3 ‘Additional installation details for splitter B1 / B2 [mm] No. of holes H1 / H2 [mm] No. of holes sound attenuators MS-OL and XS-OL’...
  • Page 9 Installation Fig. 17: Splitter sound attenuator with the width and height subdivided Fig. 18: Splitter sound attenuator with the width and Splitter sound attenuator with angle section height subdivided frame (W) Transport protection devices (sections without Splitter sound attenuator with angle section holes), to be removed frame (W) Angle section frame (W)
  • Page 10 Installation Fig. 19: Seal, detail Splitter sound attenuator Seal Screw-fix connection Fit the seals (supply package) over the joints between each two plain (unprofiled) casing sides. Additional installation details for splitter sound attenuators MS-OL and XS-OL Splitter sound attenuators without a casing are called splitter sets (OL).
  • Page 11 Installation Airway width S The airway width between two splitters can be determined based on the clear width of the duct. The gap between the outermost splitter and the duct should be S/2. Airway width Fig. 22: Offset resonating panels Duct width Installation with resonating panels Splitter thickness...
  • Page 12 Installation Please note: Dimension (H) equals the clear height of the  duct. The length of the duct must be at least equal to  the sum of the splitter lengths (L). Only arrange splitters of the same length (L) ...
  • Page 13 Installation Height subdivided Subdivided into only two parts, upright installation in a horizontal duct. MK, XK - > 2500 to 5000 mm H 1500 mm max. - if L >= 1500 mm Fig. 25: Position of the screws to fix the splitters Recommended fixing points and distances for screw fixing.
  • Page 14: Technical Data

    Technical data Assembly Ä 5.3 ‘Additional installation details for splitter sound attenuators MS-OL and XS-OL’ on page 10 Attach the splitters to each other with 2 U- sheets, placed in the middle. Fixing material by others. Rivet connection recommended, holes in splitter frames by others. Attach clamp sheets on both sides of the splitters (fixing material by others).
  • Page 15 Technical data B [mm] B [mm] [mm] [mm] 1500 18 1800 21 1200 35 Sound attenuator casing with flange (-P), 1500 41 L = 1000, weights [kg] 1800 48 B [mm] Sound attenuator casing with angle section [mm] frame (-W), L = 1500, weights [kg] B [mm] [mm] 1200 27...
  • Page 16 Technical data Weights – XK XK100, weight [kg] of one splitter or one sound attenuator casing H [mm] Glass fibre fabric (-F) Glass fibre fabric Glass fibre fabric and expanded metal (-L) and perforated sheet metal (-L-A2) L [mm] L [mm] L [mm] 9 11 12 14 15 5 7 10 12 14 16 18 20 22...
  • Page 17 Technical data H [mm] Glass fibre fabric (-F) Glass fibre fabric Glass fibre fabric and expanded metal (-L) and perforated plate (-L-A2) L [mm] L [mm] L [mm] 1250 10 13 16 21 24 28 31 36 39 13 18 22 28 33 38 43 49 54 16 23 29 37 44 51 57 66 72 1500 12 15 20 24 28 32 38 42 46 15 21 27 33 38 44 52 58 63 19 27 36 44 51 60 70 78 85 1750...
  • Page 18 Technical data H [mm] Glass fibre fabric (-F) Glass fibre fabric Glass fibre fabric and expanded metal (-L) and perforated plate (-L-A2) L [mm] L [mm] L [mm] 2250 12 17 21 25 30 15 21 26 32 38 18 25 33 40 48 2500 13 18 23 28 32 16 23 29 35 41...
  • Page 19 Commissioning Commissioning Initial commissioning Personnel: HVAC technician  Before you start commissioning: Make sure that the splitter sound attenuators  or splitters are properly installed in the duct (duct by others). Ensure that all sound attenuators are clean  and free from residues and foreign matter. Splitter sound attenuator XS / MS / XK / MK / RK...
  • Page 20 Splitter sound attenuator XS / MS / XK / MK / RK...
