Summary of Contents for Tritech Seanet SCU v5

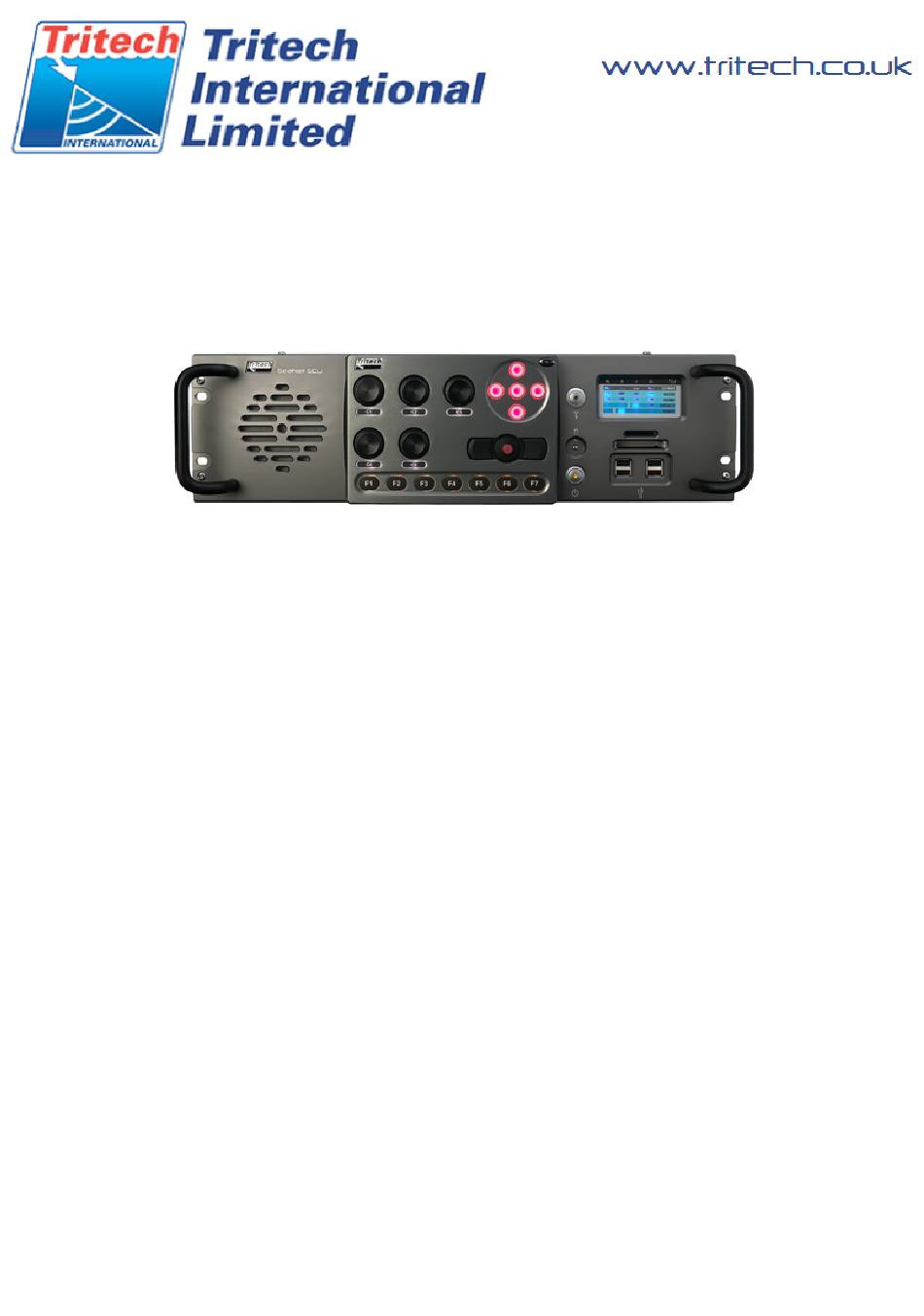

  • Page 1 Seanet SCU v5 Seanet SCU v5 Product Manual 0581-SOM-00002-02 Page 1 of 35 Tritech International Ltd.

  • Page 2: Table Of Contents

    Seanet SCU v5 Table of Contents Box Content ......................2 Help & Support ....................... 3 Warning Symbols ....................4 1. Introduction ......................5 2. Specification ......................6 3. System Options ....................10 4. Installation ......................11 4.1. Connections .................... 11 4.2.

  • Page 3: Box Content

    Seanet SCU v5 Box Content Standard Equipment Product Manual Software included in the internal flash rescue disk SCU 3U Rack mount chassis Power cable and VGA to DVI adapter 0581-SOM-00002-02 Page 2 of 35 Tritech International Ltd.

  • Page 4: Help & Support

    First please read this manual thoroughly (particularly the Troubleshooting section). For Warranty information please see the Warranty Statement at the end of the manual. If your question or problem is still not answered then Tritech International Ltd can be contacted as follows:...

  • Page 5: Warning Symbols

    Seanet SCU v5 Warning Symbols Throughout this manual the following symbols may be used where applicable to denote any particular hazards or areas which should be given special attention: Note This symbol highlights anything which would be of particular interest to the reader or provides extra information outside of the current topic.

  • Page 6: Introduction

    Remote Access Terminal (RAT) which enables all functions to be controlled by a combination of pointer and function button operations. The Seanet SCU (v5) is designed to control and display the complete range of Tritech International Ltd sonars and subsidiary subsea sensors, Features: •...

  • Page 7: Specification

    Seanet SCU v5 2. Specification Processor Intel™ Pentium Dual Core (or better) Operating Microsoft Windows Embedded System Primary Control PS/2 Remote Access Terminal (RAT) Video Output SVGA, XGA or SXGA Video Output Composite PAL/NTSC (optional) ARCNET Link 1 x 156kbit/sec (1500m) or 78kbit/sec (2500m)
  • Page 8 Specification Seanet SCU v5 Interface Ports 4 x 9-pin DE-9 ports (configurable RS-232, RS-485, RS-422, ARCNET) 1 x 15-pin DA-15 port for ARCNET or RS232 1 x 24VDC @ 36VA Output (for equipment test purposes) Front and rear USB 2.0 ports...
  • Page 9 Appendix A, Data and Control Ports and Appendix B, SCUv5 Communications Setup. The motherboard connectors are subject to change in line with Tritech International Ltd policy of continual product improvement, however, this will in not affect ordinary operation of the SCU.
  • Page 10 Specification Seanet SCU v5 Major differences between SCUv4 and SCUv5 Feature SCU (v4) SCU (v5) 256Mb 512Mb (minimum) Data Storage Zip Drive, optional HDD SSD Drive, optional HDD (instead of SSD) ARCNET Sonar Ports 1 x AIF card interface 2 x SCU5 Main Board...

  • Page 11: System Options

    Seanet software. A sub-sea vehicle used in such an application will require a Tritech Micron Modem transponder. 33V Auxiliary Power Supply The 24V Auxiliary Power Supply may be optionally replaced by a 33V supply, for use where an instrument is to be supplied over a long cable length for example.

  • Page 12: Installation

    The SCU is supplied with the screen display and output and communications already configured. The user should not have to change the screen display layout or comm’s set-up unless it is not suited to their use (contact Tritech International Ltd for more details).

  • Page 13: Communication Configuration

    10ohm for one head, 5ohm for two heads, and 3ohm for three heads. If the supplied voltage is less than 18v dc the head may not operate correctly. Caution Never try to make Tritech International Ltd sonar heads work down a long cable by increasing the PSU output voltage above the recommended voltage.
  • Page 14 The SCU is installed with four DE-9 ports on the rear panel for use with serial communications. These ports can be configured for different standards and for survey data output ports to a data logger or as ports where Tritech International Ltd or other 3rd party sensors/devices can be connected.

  • Page 15: Operation

    Seanet SCU v5 5. Operation Once a system has been installed in conjunction with the relevant sections of this manual and any relevant sensor manuals, it can be tested in air by powering up the system and observing that communications with the subsea device(s) is established.
  • Page 16 Operation Seanet SCU v5 5. Navigate to the Port Settings tab and then click the Advanced button and from here it is possible to change the port number to one that had not yet been assigned. 0581-SOM-00002-02 Page 15 of 35...

  • Page 17: System Software Configuration

    Seanet SCU v5 6. System Software Configuration Your system will be delivered with Windows Embedded and Seanet System Software pre-installed. A complete image of the Windows Embedded Operating System is provided on an internal flash memory device. This is independent from the Primary C:\ partition where the system software is installed to.

  • Page 18: Full Disk Re-Installation Using Boot Recovery

    System Software Configuration Seanet SCU v5 and Features. Select the Seanet Pro entry and then follow the on-screen instructions to remove the program. For re-installation browse to the D:\SeaNet Installer folder and run SCU5Setup.exe and follow the installation prompts throughout. After installation is complete, click on the Finish button which will reboot the SCU ready to run Seanet Pro on Windows re-start.
  • Page 19 System Software Configuration Seanet SCU v5 6. (Windows XP only) On reboot, notification will be displayed that the Machine is Resealed, click the OK button at this point to reboot the SCU once more. 7. (Windows XP only) Once rebooted, Windows will restart and a ‘Log On to Windows’...

  • Page 20: Maintenance

    If in the unlikely event the protection does blow on the PCB then the user has a number of options open to themselves: 1. Replace the SCU V5 Main Board PCB with a spare if carried. Contact Tritech or a local agent who will supply this PCB.

  • Page 21: Glossary Of Terminology

    USB port of the computer. SeaKing A specific sonar produced by Tritech International Ltd but also refers to the family of sonar equipment manufactured by Tritech International Ltd comprising of the SeaKing, SeaKing DST scanning and profiling sonars and the Hammerhead survey sonar.

  • Page 22: Data And Control Ports

    2. Sonar/Sensor Serial ports are software selectable up to 4 x RS-232, up to 4 x RS-485, 2 x ARCNET, 1 x RS-422. 3. The ARCNET Link provides a long distance communications link to other Tritech International Ltd instruments. It is software configurable (using Seanet) to operate up to 1500m cable (156kbps) or 2500m (78kbs).
  • Page 23 Data and Control Ports Seanet SCU v5 6. Motherboard ports are subject to change and are not part of this specification. Comms Status and Data Activity LEDs (Ports A – D) The layout of the Communication Port COMMS status and data activity LED’s is shown below.
  • Page 24 Data and Control Ports Seanet SCU v5 Note Port A will also work as a 3-wire RS232 connection without RTS and CTS. Pin 7 and 8 maintain signal levels of +/-12V for both 3-wire RS232 and RS485 Port B Details All signals are fully isolated and voltage transient protected with respect to the communications power supply.
  • Page 25 Data and Control Ports Seanet SCU v5 RS232 RS485 ARCNET ‡ ‡ ‡ RX/TX.A LAN A RX/TX.B LAN B PORT C/D ‡ ‡ ‡ GROUND GROUND GROUND ‡ ‡ ‡ SCU DE-9 male connector ‡ ‡ ‡ ‡ ‡ ‡...
  • Page 26 Data and Control Ports Seanet SCU v5 • Signals on pins 4, 5, 6, 7, 8, 11, 12, 13, 14 and 15 are with respect to the ground on pin 2. • The +12V output on pin 9, and the +5V output on pin 10 is with respect to pin 3, External Ground.

  • Page 27: Scuv5 Communications Setup

    SeaKing Sensor(S) in ARCNET through Twisted Pair The traditional method of transmitting Tritech data from Subsea to Surface is via a twisted pair cable. Connection to the V5 SCU should be made through the DA-15 connector, wired as below with any additionally networked heads connected in series off the first head.
  • Page 28 Power will need to be supplied to the sonar head through pin 3 (24V DC supply for a SeaKing) and pin 4 (0V ground) of the Tritech connector - the ARCNET port will not be able to supply this power and a suitable external source should be used.
  • Page 29 SCUv5 Communications Setup Seanet SCU v5 The connection to the SCU should be made through the ARCNET (DA-15) port and wired in the same manner as the ARCNET Through Twisted Pair shown above. Junction Box or Split AIF with RS232 Connection to the SCU should be made through the DA-15 connector.
  • Page 30 SCUv5 Communications Setup Seanet SCU v5 instead. For a pin-out of of port A see Appendix A, Data and Control Ports. Single SeaKing Sensor in RS232 The V5 SCU can support direct connection of a single node to a dedicated RS232 port.
  • Page 31 B can use RS422. SeaKing Sensors Through TTL to ARCNET Modem This is only applicable to systems operating with the Tritech International Ltd TTL to ARCNET interface PCB or alternative such as the Subsea 7 “Eagle Eye” PCB.

  • Page 32: Arcnet Termination

    The diagram below shows best practice to use when installing termination resistors on an ARCNET network of Tritech International Ltd sonar products. Note A special yellow waterblock is available from Tritech International Ltd which contains an in-line impedance of 39ohm which will enable quick and easy installation of the subsea termination resistor.

  • Page 33: Setting The Computer Ip Address In Windows 7

    Seanet SCU v5 Appendix D. Setting the computer IP address in Windows 7 The following instructions apply to a computer running Windows 7, though the sequence for other operating systems will be similar. Disconnect the computer from any existing network.
  • Page 34 Setting the computer IP address in Windows 7 Seanet SCU v5 A list of attatched network devices should now present itself. Find the one which the sonar is to be connected to and double-click on it. The Local Area Connection Properties dialog should be displayed. Find the entry labelled Internet Protocol Version 4 (TCP/IPv4), select it and then click on the Properties button.

  • Page 35: Warranty Statement

    Seanet SCU v5 Warranty Statement Tritech International Ltd are herein after referred to as TIL TIL warrants that at the time of shipment all products shall be free from defects in material and workmanship and suitable for the purpose specified in the product literature. The unit/system warranty commences immediately from the date of customer acceptance and runs for a period of 365 days.

  • Page 36: Copyright Statement

    © Tritech International Ltd The copyright in this document is the property of Tritech International Ltd. The document is supplied by Tritech International Ltd on the understanding that it may not be copied, used, or disclosed to others except as authorised in writing by Tritech International Ltd.
