FBS VARIO EPDM-FPV/FPE Manual

Instructions for Use – Compressed Air Operation (1/4" connector)
• Fill the bottle up to the "Max" indicator.
• Insert pump assembly into the bottle, and screw-on very tightly, so the
seals can maintain sufficient pressure.
• Extend the pump plunger (no.
• Attach the compressed air connection sleeve (no. 30, 1/4" connector) on to
the compressed air coupling for approximately 3 – 5 seconds, in order to
build up pressure in the bottle.
• Slowly turn the nozzle to adjust spray pattern from fine mist to jet.
• If liquid drops out of the nozzle on completion of spraying, spray for
approx. 2 – 3 seconds to release the trapped compressed air.
Manual Operation
Instructions for Use –
• Fill the bottle up to the "Max" indicator..
• Insert pump assembly into the bottle, and screw-on very tightly, so the
seals can maintain suffici ent pressure.
20)
• Extend pump plunger (no.
• Slowly turn the nozzle to adjust spray pattern from fine mist to jet.
• Always release pressure in the unit before storage.
Warranty
Sprayers carry a limited Warranty, which is limited to replacement of defective
part(s) only. Damage attributable to improper use, faulty maintenance, the effects
of chemicals or normal wear and tear (Seals/o-rings) is excluded from the
Warranty.
Effect of Acetone on plastic parts in the sprayers is also excluded form the
Warranty.
If defective, the sprayer(s) should be returned to FBS for examination with
transportation prepaid. If defects are covered by the Warranty, the least expen-
sive inbound/outbound charges will be borne by FBS/Manufacturer.
All returned and repairable sprayers not covered by the Warranty will be
repaired/reconditioned according to the repair fee/schedule, and charges borne
by the customer.
For more information visit our web site at www.fbsdistribution.com and check
chemical compatibility of EPDM.
20) to its maximum length.
Maximum pressure 3 bars * 43.5 psi
and stroke 20 – 30 times.

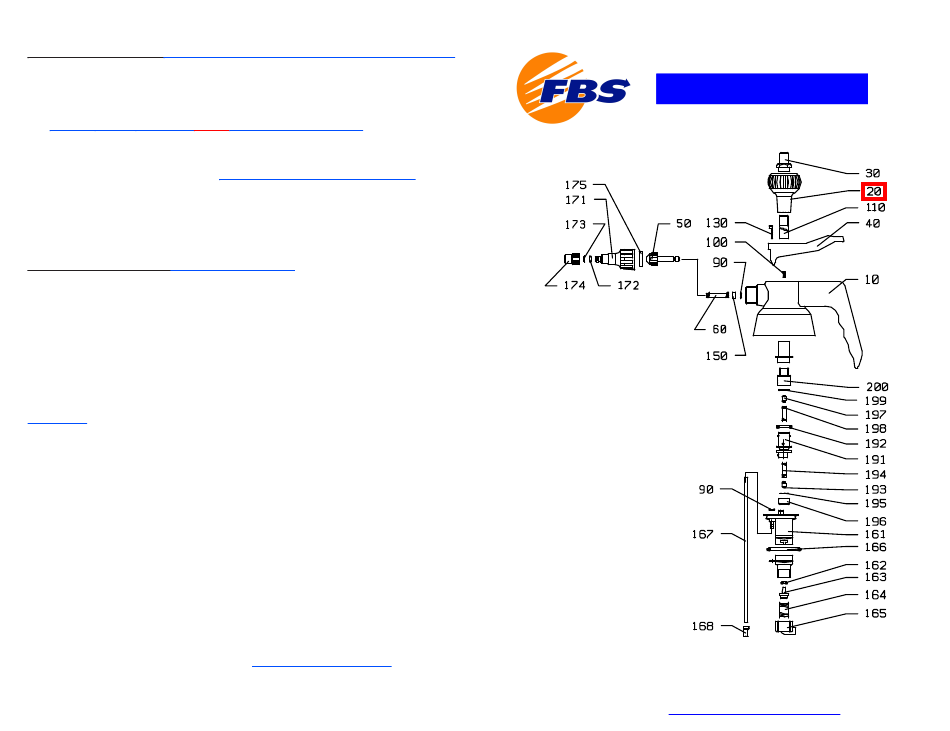

VARIO Compressed Air Sprayer
50401 EPDM-FPV/FPE Model
200 Upper ball seat cap
199 O-Ring ø 11.0 x 1.5
198 Excess pressure spring
197 Plastic ball
196 Lower ball seat cap
195 O-Ring ø 8.0 x 1
194 Excess pressure spring
193 Plastic ball
192 O-Ring ø 13.1 x 3.5
191 Bell-shaped valve
175 Nozzle head seal
174 Nozzle nut
173 Brass nozzle ø 0.8 mm
172 O-Ring øn 5.0 x 1.5
171 Swirl piece
168 Filtre
167 Suction Tube
166 O-Ring ø 36.0 x 4.0
165 Screw Cap
164 Valve Spring
163 Valve Plunger
162 O-Ring ø 3.0 x 2.7
161 Pump Cylinder
150 Retaining Disk
130 Clip
120 Pump Handle Guide
110 Pump Handle VARIO
100 Screw
90 O-Ring ø 5.0 x 1.5
60 Spring
50 Swirl Cone
40 Trigger for Safety Catch
30 Compressed air connection sleeve
20 Top of the pump handle
10 Sprayer cup
Manufactured in Germany
FBS Distribution Co., Inc.
www.fbsdistribution.com
Manual
