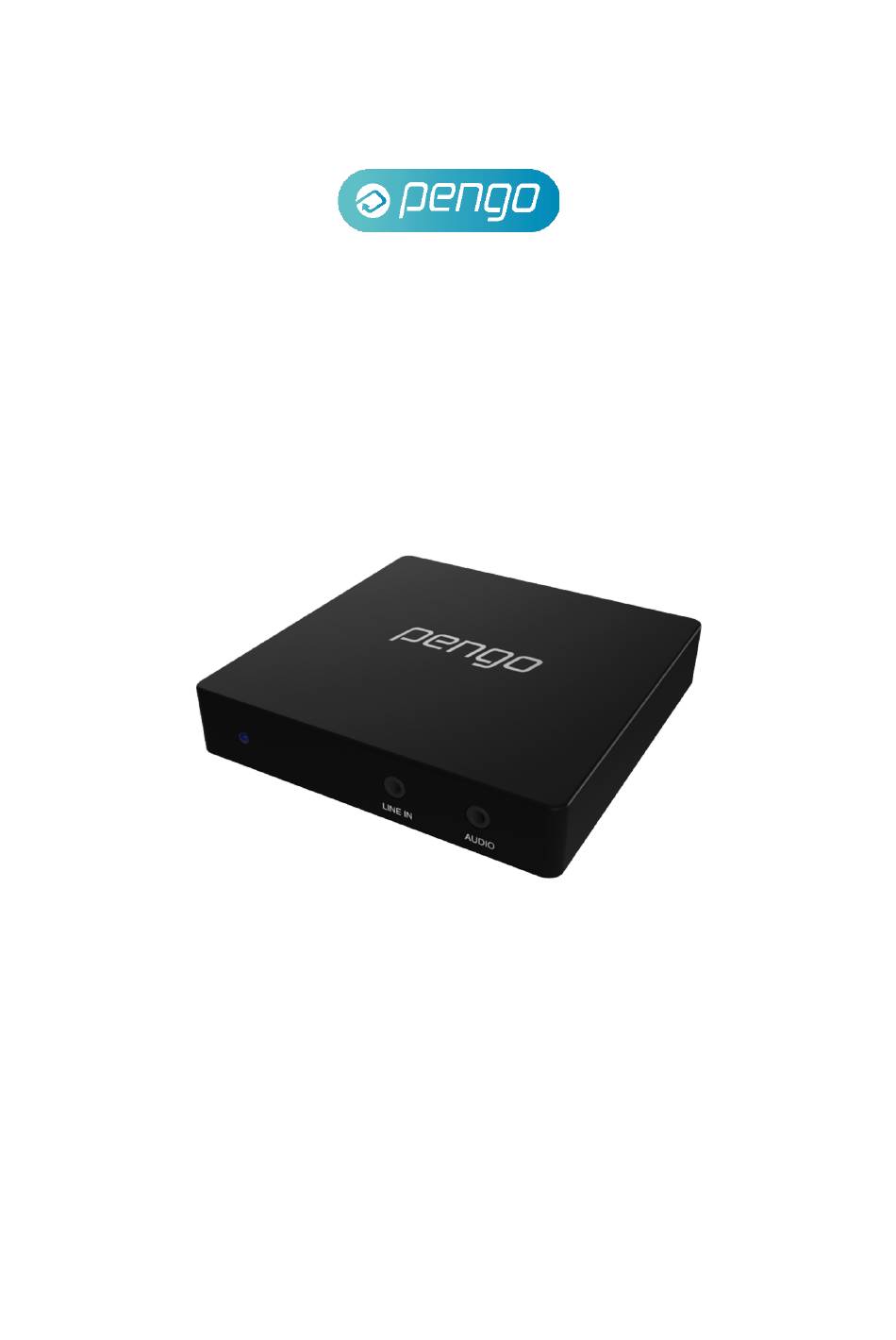

- Page 1 4K HDMI Grabber Pro User manual (v.1.5) - English -...
-
Page 2: Table Of Contents
Introduction ......................1 Features ........................ 1 System requirements ................... 1 Installation ......................3 Inside the box ....................... 1 Operating Instructions (Windows with OBS) ............3 Video Setting ....................4 Audio Setting ....................6 Operating Instructions (Mac OS with OBS) ............8... -
Page 3: Introduction
Introduction Pengo 4K HDMI Grabber Pro is designed for the elite gamers. Easily enables streamers to capture each sound and movement. Play and view your game on your VRR/FreeSync monitor whilst capturing/streaming at 4K30fps. Allowing the user to plug-in various 4K HDMI output devices (such as PS5/4, Xbox Series X|S, Switch, camera, etc.) and captures 4K UHD 30Hz data through the USB... - Page 4 Specifications MODEL NAME 4K HDMI Grabber Pro INPUT INTERFACE 1 x HDMI 2.0 Type-A OUTPUT INTERFACE 1 x USB Type-C , 1 x HDMI 2.0 Type-A 3840 x 2160p 60/50/30/25/24Hz 2560 x 1440p 144/60Hz 1920 x 1080p 240/144/120/60/50/30/25/24Hz 1920 x 1080i 60/50Hz...
-
Page 5: Installation
Installation Connect Pengo 4K HDMI Grabber Pro into the computer USB-C port using Ÿ the USB-C cable inside the package. Plug-in your HDMI source with an HDMI Cable into the HDMI INPUT port. Ÿ Plug-in your display device with a HDMI Cable into HDMI LOOP-OUT port. -
Page 6: Video Setting
Download OBS Studio: https://obsproject.com/ (OBS-Studio-25.0.8-Full-Installer-x64.exe) Open OBS Studio. (version 25.0.8) 1. Video Setting 1.1 Add and select “Video Capture Device”, rename the source and click OK... - Page 7 1.2 Select “Pengo 4K Grabber Pro” as your device 1.3 Parameter Setting references are displayed as below *Resolution/FPS Type: Custom *Resolution: 3840 x 2160 *FPS: Match Output FPS (autoselect: 30) *Video Format: NV12 *Audio Device: HDMI (Pengo 4K Grabber Pro)
-
Page 8: Audio Setting
2. Audio Setting 1.1 Click on the audio setting icon as displayed below 1.2 Select “Properties” 1.3 Under Properties: Select “HDMI (Pengo 4K Grabber Pro)” as your device... - Page 9 1.4 Under the Audio Setting Icon: Select “Advanced Audio properties” 1.5 Under Advanced Audio Properties: Adjust your audio source to suggested preferences ( Microphone and speaker need to change the setting into Monitor and Output) 1.6 OBS Setting completed...
-
Page 10: Operating Instructions (Mac Os With Obs)
Operating Instructions (Mac OS with OBS) 3. Video Setting 1.1 Under Sources, click on the “+” icon and select “Video Capture Device” 1.2 Rename the input source and click OK... - Page 12 1.3 Under Properties: Select “Pengo 4K Grabber Pro” in Device Do not click “Use Preset” and customize the configuration. *Resolution: select the best resolution possible 3840 x 2160 *FPS: Simple FPS Values 30 *Input Format: NV12...
- Page 13 4. Audio Setting 1.1 Click on the Audio Setting Icon as indicated below 1.2 Select “Properties” 1.3 Select “Pengo 4K Grabber Pro” in Device...
- Page 14 Make sure your HDMI source does not have HDCP, we do not support HDCP. Ÿ Please contact us if you have any issue. Ÿ Please register your Pengo product at: www.pengohome.com/register Ÿ We reserve the right to make any updates without prior notice Ÿ...
