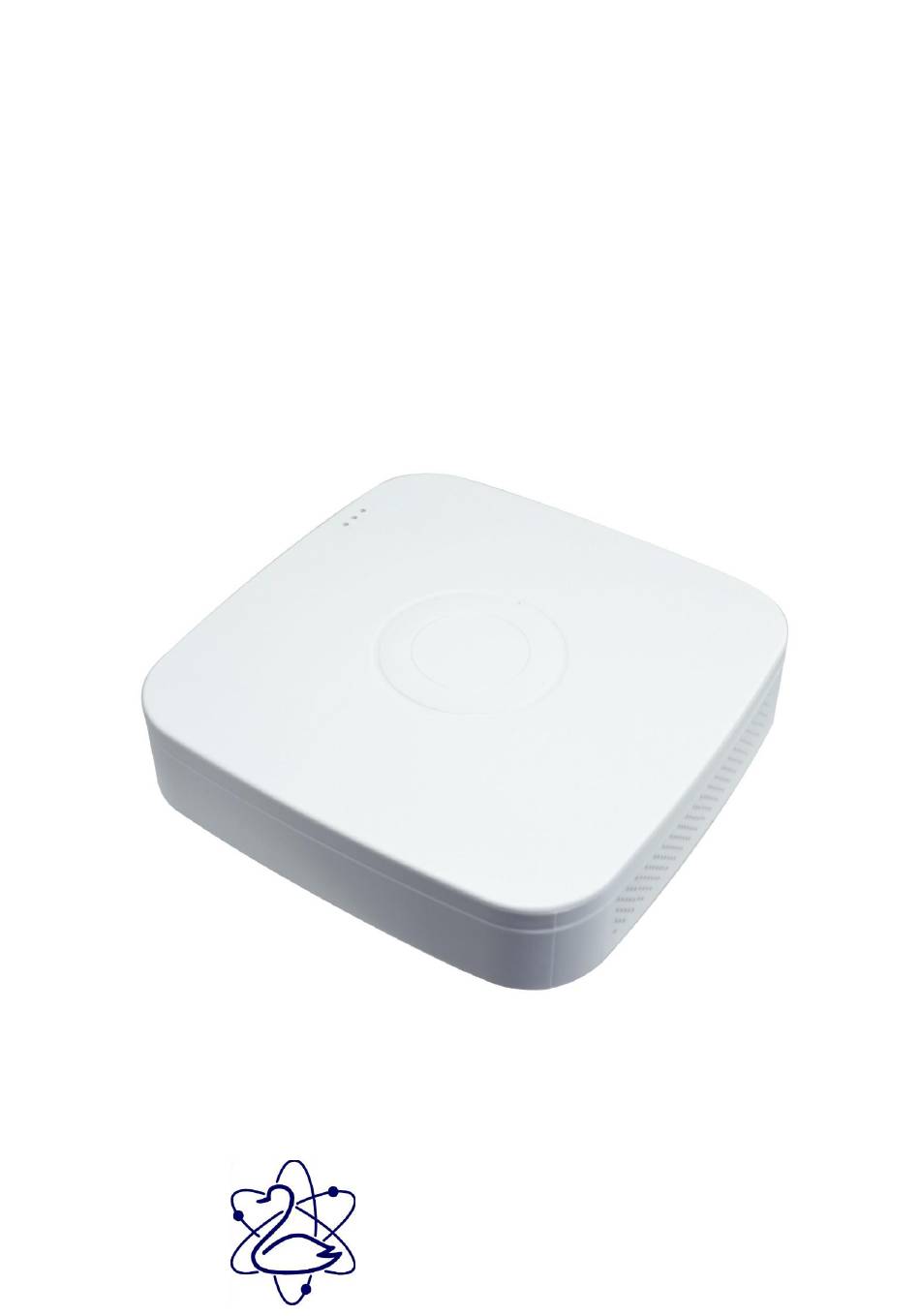

- Page 1 XVR Rcorder with 8 channels (1080N) Product nr. 2100.0461 User Manual / Installation guide SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
-
Page 2: Table Of Contents
Start up ..............................6 Remote connection from Web ......................10 Access from Iphone, Ipad og Android ....................14 Specifications ............................19 Box contents ............................19 Troubleshooting ............................ 20 SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... -
Page 3: Indicator Lamps
Avoid heat. • Horizontal mounting is recommended. • Avoid contact to water and avoid wet or damp places. • Avoid stacking. 1. Indicator lamps SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... -
Page 4: Connections
Side 3 af 20 2. Connections SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... -
Page 5: Hard Drive Installation
B. Turn the unit over and remove the lid: ❶ Power cable to hard drive. ❷ Data cable to hard drive. ❸ Mounting holes for the hard drive SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... - Page 6 Tighten the screws to the hard drive. D. Attach the cables to the hard drive. E. Attach the lid with the 4 screws. See Fig 3A. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
-
Page 7: Start Up
• Connect the USB Mus – see Fig. 2 pkt. ❽ • Connect the power adapter – se Fig. 2 pkt. ❾ A. The following will be displayed after start up. Press Next Step: SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang... - Page 8 Side 7 af 20 B. Log in with admin as User Name and Password 12345: C. Adjust Device settings and press Next step: SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 9 Side 8 af 20 D. Note IP Address for later use with remote access and press Next Step: E. Press Next Step: SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 10 Side 9 af 20 F. Press Next step: G. Press Next step og adjust recording preferences: H. Press OK to save the preferences. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
-
Page 11: Remote Connection From Web
5. Remote connection from Web Open the Internet Explorer browser on the PC and type in the IP address noted earlier Download and install OCX controls by pressing Download: SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... - Page 12 Side 11 af 20 C. Follow the Setup instructions. Press Next: D. Press Next : SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 13 Side 12 af 20 E. Press Next: F. Press Install: SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 14 Side 13 af 20 G. Press Finish: H. Type in User Name – admin og Password 12345 (default): SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
-
Page 15: Access From Iphone, Ipad Og Android
Side 14 af 20 I. Remote access from Web: 6. Access from Iphone, Ipad og Android From Apple App Store: • Search for FreeIP or scan the following QR code: SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... - Page 16 Side 15 af 20 From Android Google Play store • Search for FreeIP or scan the following QR code: Open FreeIP App : ➊ Press here to open the menu. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 17 Side 16 af 20 ➋ Press SN Login. ➌ Press QR sign or type the DVR seriel nr. in. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 18 To use the QR code allow the app to use the kamera. Scan the QR code from the box. ➎ Type user name – admin and password 12345 (default). SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
- Page 19 Side 18 af 20 ➏ Press Login. ➐ Login successful. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
-
Page 20: Specifications
1 x Software CD • 1 x AC power adapter • 1 x Installation manual (english) • 1 x DVR (XVR) • Screws for hard drive mounting Hard drive purchased separately. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk... -
Page 21: Troubleshooting
Use ping command from a PC to the units IP address to check for network connection. 2) If ActiveX is blocked on the pc, it must be installed manually. SSIHuset Svane Electronic Arildsvej 27, Gråmose, DK-7442 Engesvang kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk...
