SOLAR
LIGHTS
READ CAREFULLY BEFORE INSTALLING THE FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. This product must be installed in accordance with the applicable installation code
by a person familiar with the construction and operation of the product and hazards involved.
PLEASE NOTE THAT THE PERFORMANCE OF A SOLAR LIGHT DEPENDS ON MANY FACTORS INCLUDING
SOLAR RADIATION, TEMPERATURE, AND OTHER ENVIRONMENTAL FACTORS. DIRTY SOLAR PANELS CAN
SIGNIFICANTLY REDUCE THE CHARGE EFFICIENCY OF SOLAR PANELS. IMPROPER ALIGNMENT OF THE
PANEL, SHADOWS, OR OBSTACLES THAT BLOCK DIRECT SUNLIGHT TO THE SOLAR PANEL CAN CAUSE
POOR PERFORMANCE.
NOTE: THE BATTERY IS DISCONNECTED UNTIL THE 4 PIN CONNECTOR FOR THE SOLAR PANEL
IS CONNECTED. THE LIGHT WILL NOT OPERATE UNLESS THE SOLAR PANEL OR A CHARGER ARE
CONNECTED.
DO NOT OPEN THE FIXTURE HOUSING, AS THERE ARE NO USER SERVICEABLE PARTS INSIDE. IF BATTERY
REPLACEMENT IS REQUIRED, PLEASE CONTACT THE MANUFACTURER.
STEP 1: REMOVE THE CONTENTS FROM ALL THE CARTON
Please be sure to check that everything is in the box.
1 x Remote (CU-ALL6)
2 x AA Batteries
1 x Manual
1 x 5mm allen wrench
1 x 6mm allen wrench
STEP 2: SLIPFITTER MOUNTING

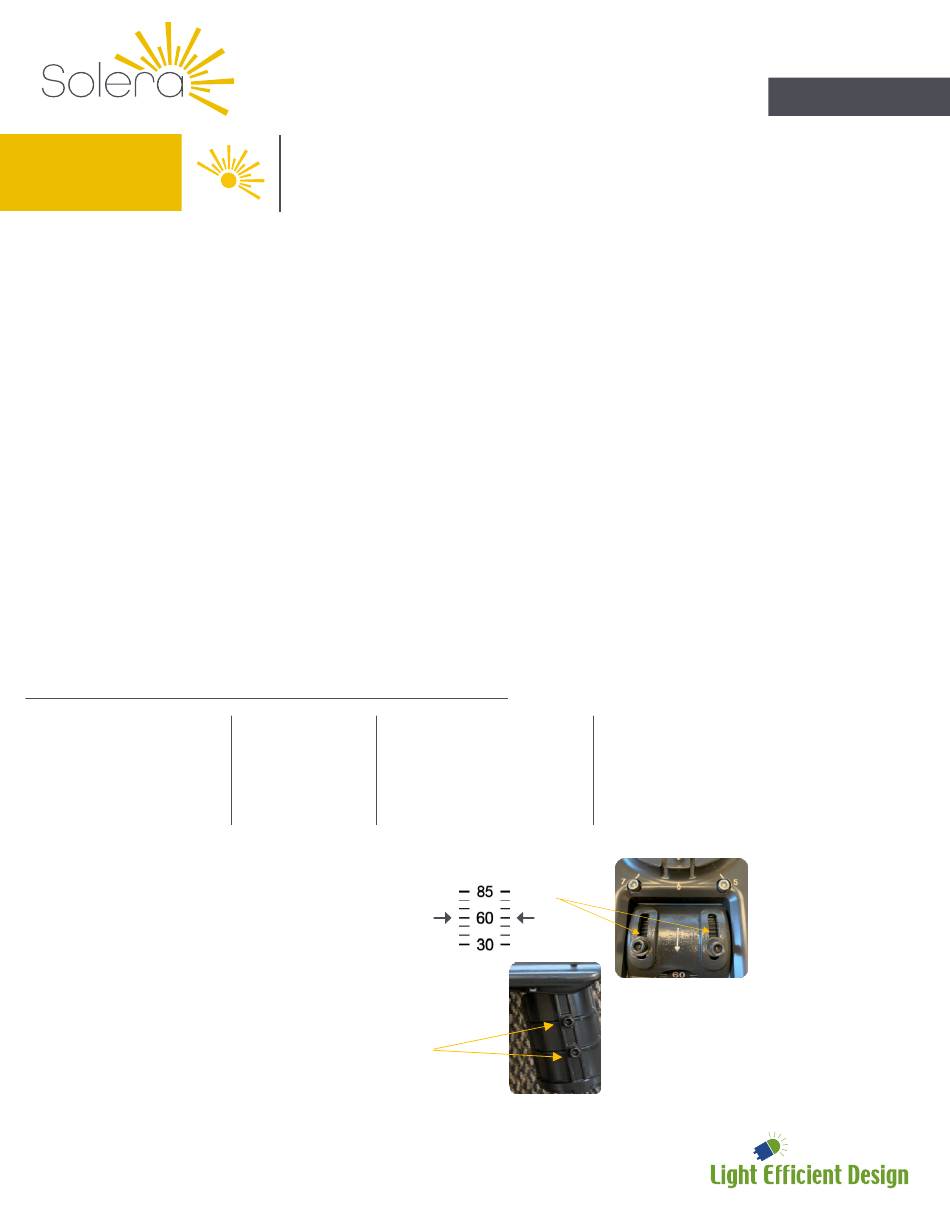

a. Adjust the angle of the fixture. Align the white
lines w/ numbers and the arrows on the fixture.
Loosen the screws and swivel the fixture to the
desired angle, then re-tighten the screws.
b. The slipfitter mounting fits a 2 3/8" O.D. tenon.
Place the slipfitter over the tenon and secure the
fixture with the two set screws on the side of the
slipfitter.
LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway
INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200
847.380.3540
led-llc.com
•
04.08.22 Information is subject to change without notice.
OG/HYBRID 365 AREA LIGHT
SL-SAL-OG/HYB-50W-XXK-SF-G2
1 x Fixture
1 x Slipfitter
*(4 set screws pre attached)
Cary, IL 60013
•
Middleton, MA 01949
•
INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Light Efficient Design Solera SL-SAL-OG
Summary of Contents for Light Efficient Design Solera SL-SAL-OG
- Page 1 Place the slipfitter over the tenon and secure the fixture with the two set screws on the side of the slipfitter. LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway Cary, IL 60013 • INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 Middleton, MA 01949 •...
- Page 2 THE HYBRID 365 FIXTURE WILL PULL FROM LINE POWER WHEN THE BATTERY GETS TO <20%. THIS IS TO CONSERVE THE LONGEVITY OF THE BATTERY LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway Cary, IL 60013 • INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 Middleton, MA 01949 •...
- Page 3 It is recommended to allow the light to operate under the default settings. If necessary, the settings can be customized. Please be aware that incorrect settings could cause the light to LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway Cary, IL 60013 •...
- Page 4 The working temperature of the solar fixture is -40°F (-40°C) to +140°F (+60°C). When operating in an environment with a temperature lower than -40°F (-20°C), line voltage will kick in to operate the light. LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway Cary, IL 60013 •...
