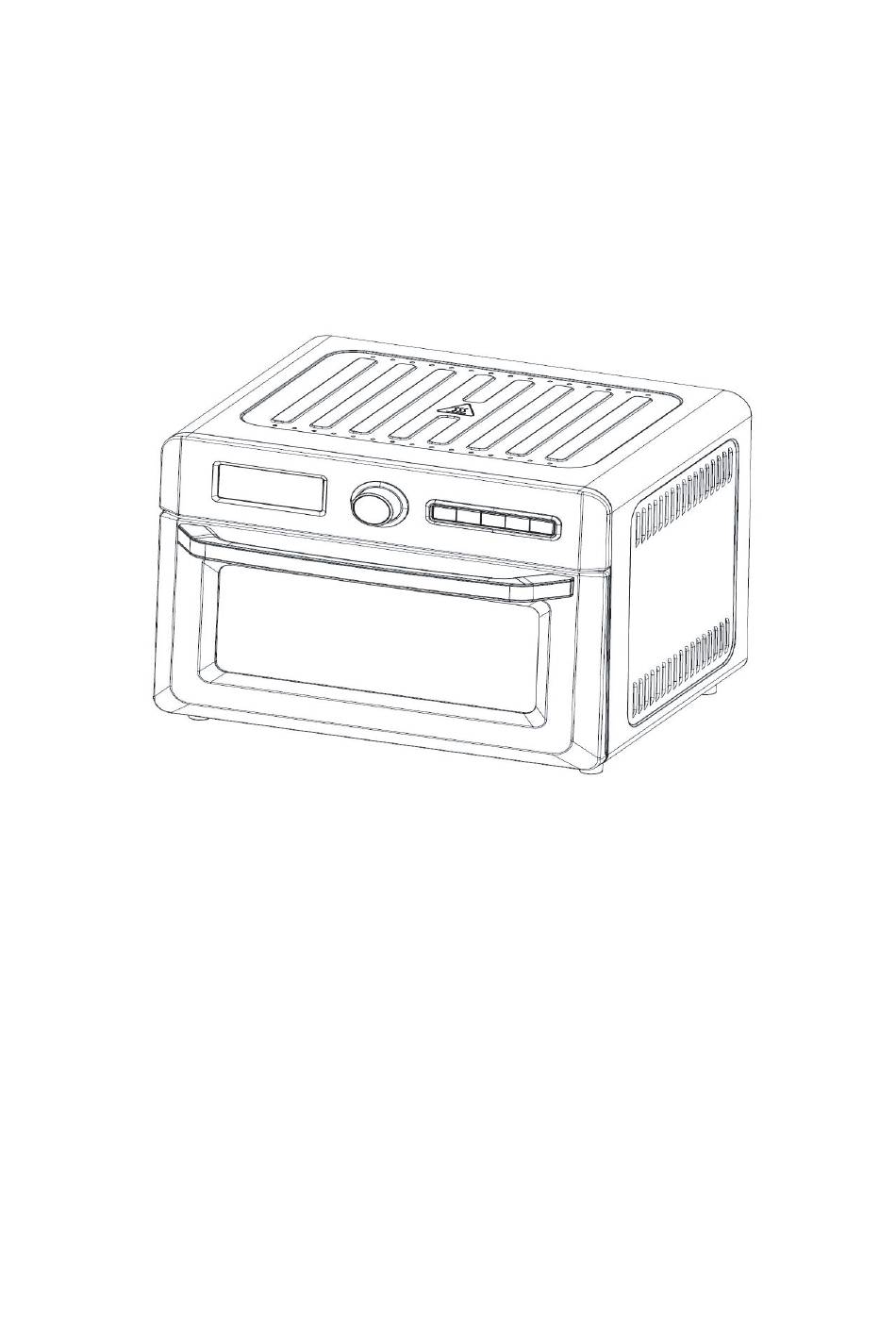

- Page 1 CROWNFUL AIR FRYER OVEN 19QT INSTRUCTION MANUAL Model: TO5712T-UL Read this manual thoroughly before using and save it for future reference. For product concerns, please contact support@crownful.com...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this electrical appliance, basic safety precautions should always be followed, including the following: 1. Read all instructions, product labels and warnings before using the air fryer oven. 2. Do not touch the hot surfaces. The temperature of the door or the outer surface could be hot when the air fryer oven is operating. - Page 4 KNOW YOUR AIR FRYER OVEN H o u s i n g F r y B a s k e t C o n t r o l p a n e l C r u m b t r a y G l a s s d o o r P a n G r i l l...
- Page 7 REHEAT: Both the upper 2, the lower heat elements and the fan will be activated during operation. You can turn off the fan by pressing fan button. Default time and temperature is 15mins 320 Adjustable time range is 1min-2 hours. Adjustable temperature range is 120-450 . TOAST: Both the upper 2 and the lower heat elements will be activated during the operation.
- Page 8 Fan button: If the function you choose has the fan activated already, you can press the fan button to turn off the fan. If the fan is not running (OFF), press the fan button to activate the fan. NOTE: You can’t change the fan status when you are using the following modes: Airfry, Bagel, Toast, Broil and Dehydrate mode.
- Page 9 NOTE: 1. Initial start-up operation may produce a smell and smoke (For about 15 mins.). This is normal. It is due to the protective substance on heating elements which protects them while they are stored. Cook slices of lemon at 400 for 5-10 minutes to minimize the smell.
-
Page 10: Useful Tips
Roasting cage is used for roasting nuts and coffee beans. Rotisserio is used for roasting sausage and chunky meat. Chicken roasting fork is used for roasting whole chicken around 1250g and roasting cooking chicken wings. 4. After choosing the function you need, you can press start stop button to start working, The unit will work in its default time and temperature. - Page 11 How to Roast 1. Place the Air Fryer Oven, on a flat, stable, level surface. Ensure that the oven is 2 to 4 inches away from the wall or any other objects. 2. Ensure that the Removable Crumb Tray is placed beneath the bottom heating elements when using your Air Fryer Oven.
- Page 12 13. Remove the roast from the oven using the Rotisserie Removal Tool by placing the tool underneath the grooved edges of the Spit. Lift the left side up and towards you at an angle and slide the right side of the Spit out of the Rotisserie Socket.
-
Page 13: Clean And Maintenance
CLEAN AND MAINTENANCE Caution: Before cleaning the air fryer oven unplug it and allow it to cool completely. 1. Wash all the attachments with mild soap and water. 2. Use a damp soft cloth to clean the inner of the oven, remember to clean it regularly. 3.
