Summary of Contents for hayneedle PACA012-3

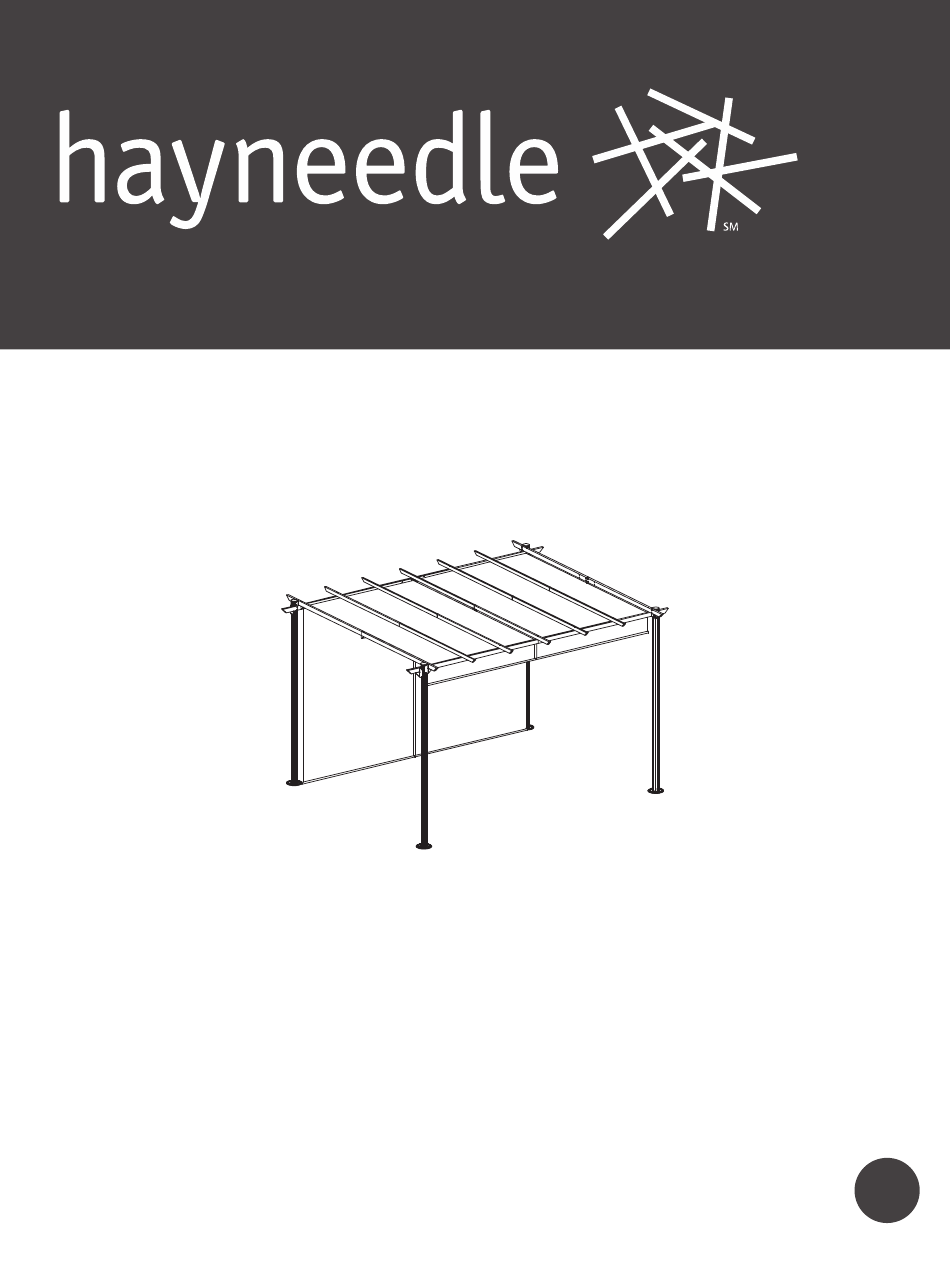

- Page 1 ITEM NAME: Belham Living Steel Outdoor Pergola Gazebo with Retractable Canopy Shades - Green Canopy with Textured Brown Frame SKU: PACA012-3 For assistance with assembly, please contact Customer Care Center 1-888-880-4884 1/10...
-
Page 2: Pre-Assembly Preparation
Note: It is very important to read and follow these Safety Precautions before assembly and during the use of this product. PRE-ASSEMBLY PREPARATION: THIS PACKAGE MAY CONTAIN SMALL ITEMS WHICH SHOULD BE KEPT AWAY FROM CHILDREN • Please check that all parts and hardware are included before beginning assembly. Save all packing materials until assembly is complete to avoid accidentally discarding smaller •... - Page 3 MAINTENANCE AND CARE TIPS 1) Keep all flame and heat sources away from this tent fabric. This tent is made with fabric that meets CPAI-84 specifications for the flame resistance. It is not fire proof. The fabric will burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistance properties ineffective.
- Page 4 Part list 2pcs Corner Post 2pcs Corner Post 2pcs 2pcs Short Side Beam Short Side Beam Long Side Beam Long Side Beam 2pcs 2pcs 2-M6 4pcs Short Beam Short Beam Guide Pole 5pcs 6pcs Short Beam Guide Pole 2pcs Guide Pole 2pcs Post Top Cover To best protect...
- Page 5 Step 1: Attaching post bases 2pcs 2pcs M 4pcs M6x16 8pcs Attach one post base (M) to the bottom of each corner post (A) with bolts (1) using hex wrench (T). Attach one post base (M) to the bottom of each corner post (B) with bolts (1) using hex wrench (T).
- Page 6 Step 2: Attaching long side beams 2pcs 2pcs 4pcs Corner Post A with eight holes Corner Post B with O 2pcs facing front. six holes facing front. Note： Please pay attention to the hole M6x16 positions of corner posts A &B when assembling the E - F 1 24pcs side beams.
- Page 7 Step 3: Attaching short side beams 2pcs 2pcs M6x16 24pcs M6x15 8pcs 3.1 Insert one beam (D) into each beam (C) and secure them with bolts (1). 3.2 Attach the beam (C) to the top of post (A) with bolts (4) and (1). 3.3 Attach the beam (D) to the top of post (B) with bolts (4) and (1).
- Page 8 Step 4: Attaching short beams 2-M6 G 4pcs 5pcs M6x16 M6x55 4.1 Insert each beam (G) into one beam (I) and secure them with bolts (1). Insert beam (H) into beam (I) and attach bracket (P) to them with bolts (1). Attach the beams (H-I ) onto the center of the beams (E-F) with bolts (2).
- Page 9 Step 5: Attaching guide poles 6pcs M6x65 6pcs 5 83pcs 5.1 Snap guide poles (J) onto each bracket (O). 5.2 Attach the other end of the guide poles (J) to the beams (C-D) with bolts (3). 5.3 Snap guide poles (J) onto bracket (P). 5.4 Attach the other end of the guide poles (J) to the beams (C-D) with bolts (3).
- Page 10 Step 6: Attaching canopies 2pcs 2pcs 2pcs 8pcs 6.1 Pull canopies onto the guide poles under the short side beams. Be sure each canopy lines up with the other at each long side of the frame. 6.2 Insert one guide pole (K) into both ends of one canop y. Insert one guide pole (L) into both ends of the other canopy.
