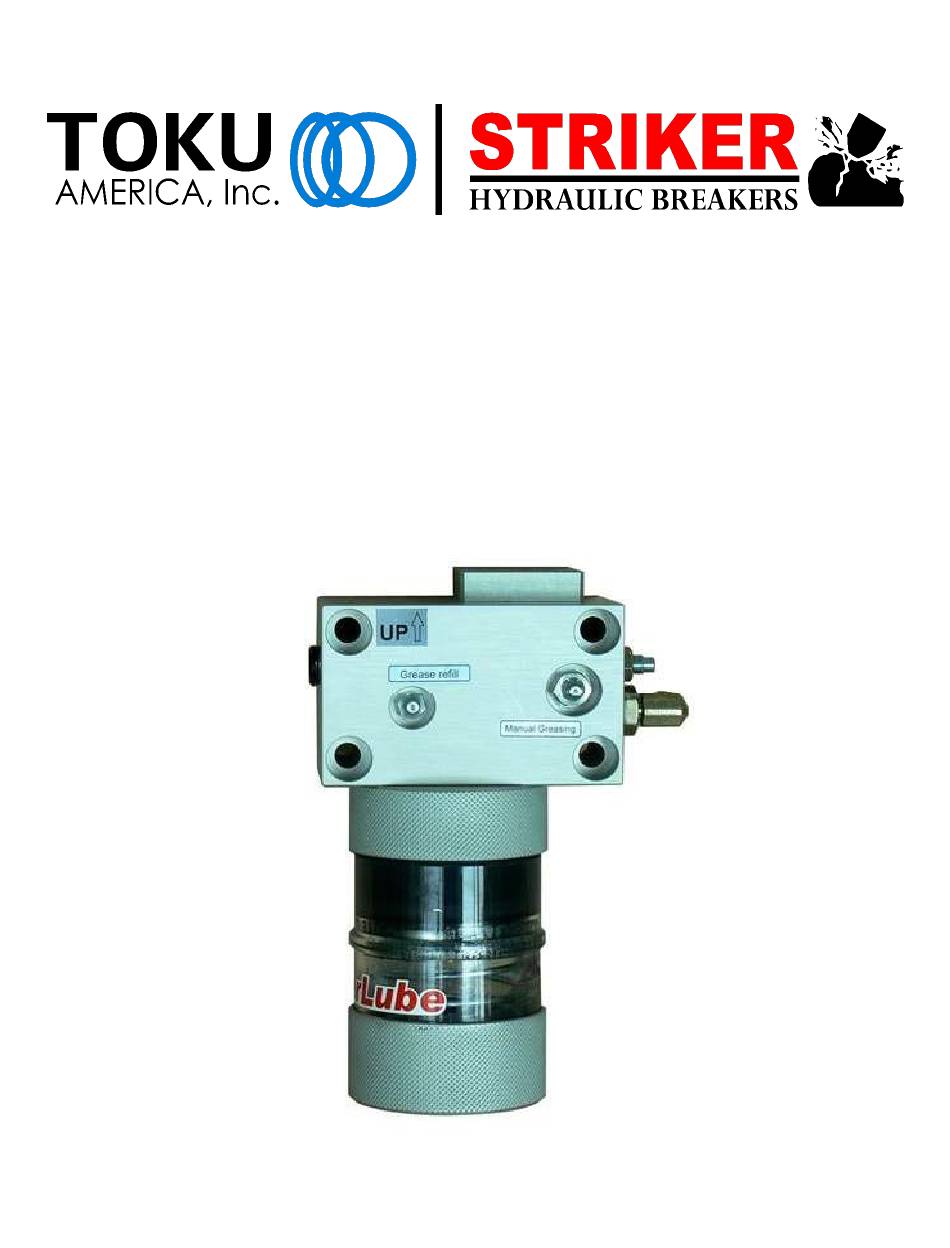

- Page 1 STRIKERMAXX COMPACT HYDRAULIC BREAKER AUTOMATIC LUBRICATION PUMP Nov 2017 v1.1...
-
Page 2: System Information
TABLE OF CONTENTS • System Information • Specification • Grease Refill • Spare Parts • Spare Parts List • Installation • Adjustments, Grease Refill, Manual Greasing • Contact Info • Notes SYSTEM INFORMATION PUMP TYPE: TIMER SETTING: PUMP SERIAL: EQUIPMENT TYPE: DATE INSTALLED: Page | 2... -
Page 3: Specification
SPECIFICATION OutPut Pressure 80 bar Cartridge Capacity 300 ml Exterior Size 120mm x 74mm x 206.5mm Weight (Without Grease) 2.4 Kg OutPut Port PF 1/4" 0.1cc ~ 0.7cc / 1min Output Quantity 6cc ~ 40cc / 1hour MO2 Grease NLGI NO.2 (Normal Condition) Recommend Grease NLGI NO.1 (Under 10℃) NLGI NO.0 (Under 0℃) - Page 4 GREASE REFILL Grease refill by Power Grease Gun POWER PUMP G r e a s e Grease refill by Manual Grease Gun Page | 4...
-
Page 5: Spare Parts
SPARE PARTS Page | 5... -
Page 6: Spare Parts List
SPARE PARTS LIST Pos. Quantity Description Item Number Body CPT0111 Cartridge, Φ79x175L CPT20330 O-Ring, G40 HL0G40 Plug, PT3/8” HL0920 Out-Put Nipple, PF1/4” 6059-04-04 Adjuster, M10 HL0730 Lock-Nut, M8 HL0740 Ball, Φ38.5 HSB385 Spring, Φ32x60L HL0270 Cover CPT0130 Bolt, M6 JBM0615 Grease Nipple, PT1/4 HNG14 Grease Nipple, PT1/8... -
Page 7: Installation
INSTALLATION GREASE HOSE GREASE HOLE BREAKER CHISEL Must to be installed parallel with the chisel of the Breaker The Pump Body should be tightened strictly on the Breaker Loosened bolt may cause serious damage or malfunction The Grease Cartridge should be tightened on the Pump Body Loosened Screw may cause serious damage or malfunction Page | 7... - Page 8 ADJUSTMENT, GREASE REFILL, MANUAL GREASING Grease refilling port Max.Output L=6mm for grease refilling min.Output L=0mm Grease refilling port Max.Output L=6mm for grease refilling min.Output L=0mm Adjuster Adjuster Grease Nipple for manual greasing Grease Nipple for manual greasing If the Breaker has not been used more than 2 months, please supply enough grease manually by Grease nipple before operation Page | 8...
-
Page 9: Contact Information
CONTACT INFORMATION Additional information, system layout diagrams, and more detailed manuals on individual components are available upon request. For technical support, sales and parts, and other products, please contact your local Toku/Striker dealer. 1-877-954-9923 www.toku-america.com parts@toku-america.com NOTES Page | 9...
