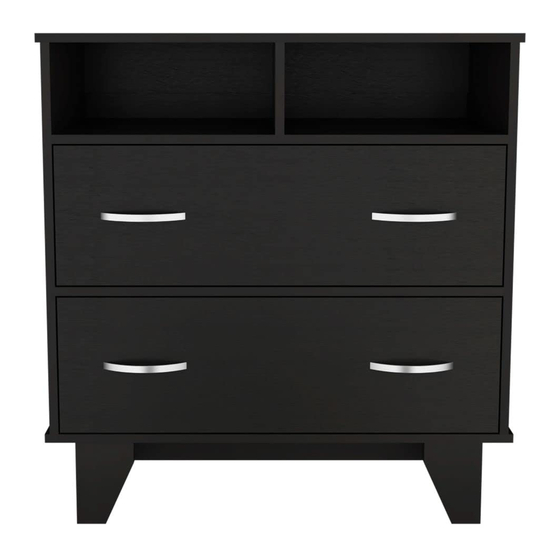

TUHOME Furniture PORTANOVA Assembly Instructions Manual

Two drawer dresser
Hide thumbs

Advertisement

Quick Links

Download this manual

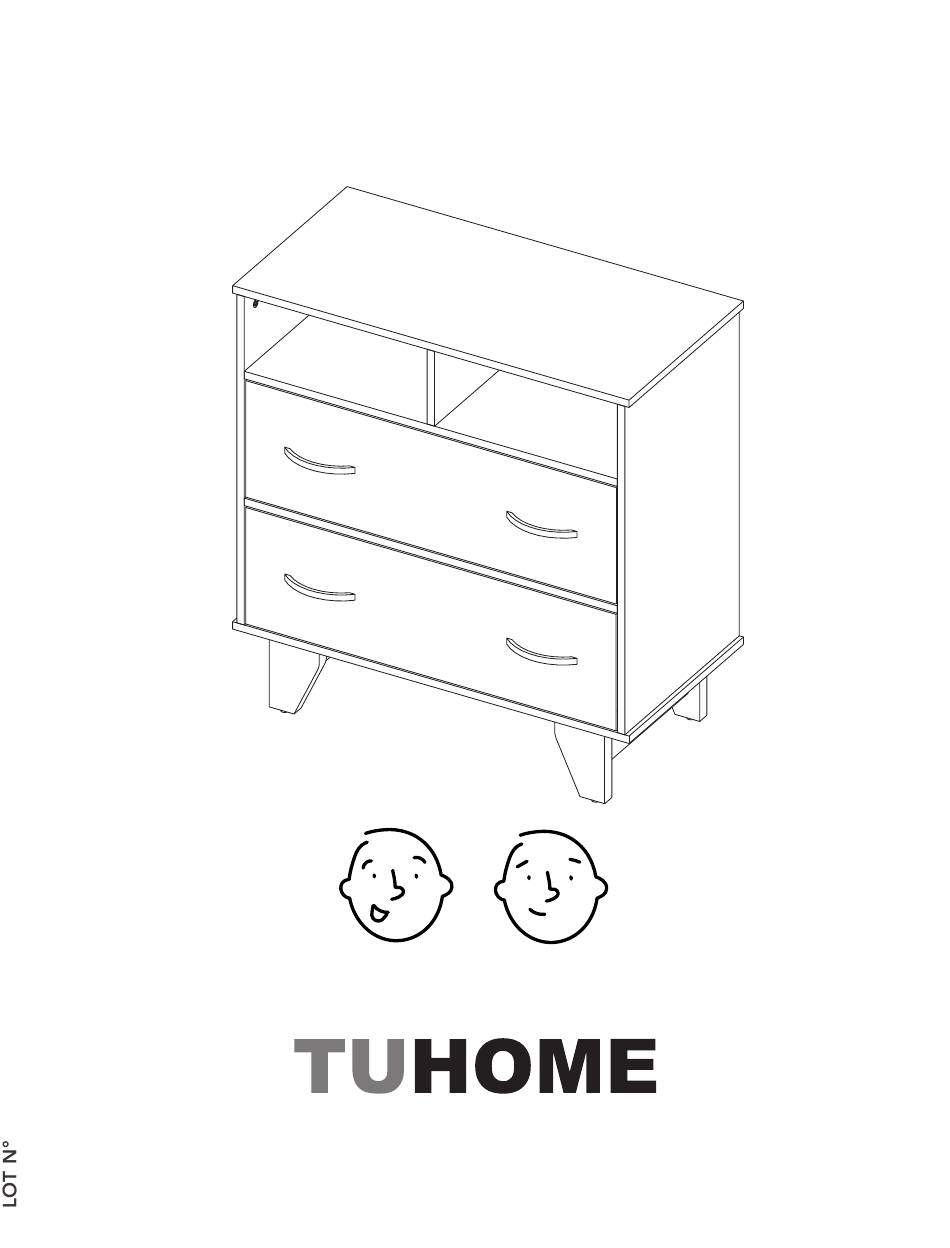

ASSEMBLY INSTRUCTIONS
PORTANOVA TWO DRAWER DRESSER
It's much better if you get some company for this!
FURNITURE
If any parts are broken or missing please contact us at:
1-888-391-01-66 / customerservicetuhome@rta.com.co
Our customer service team will provide you help
to resolve any issues immediatly
