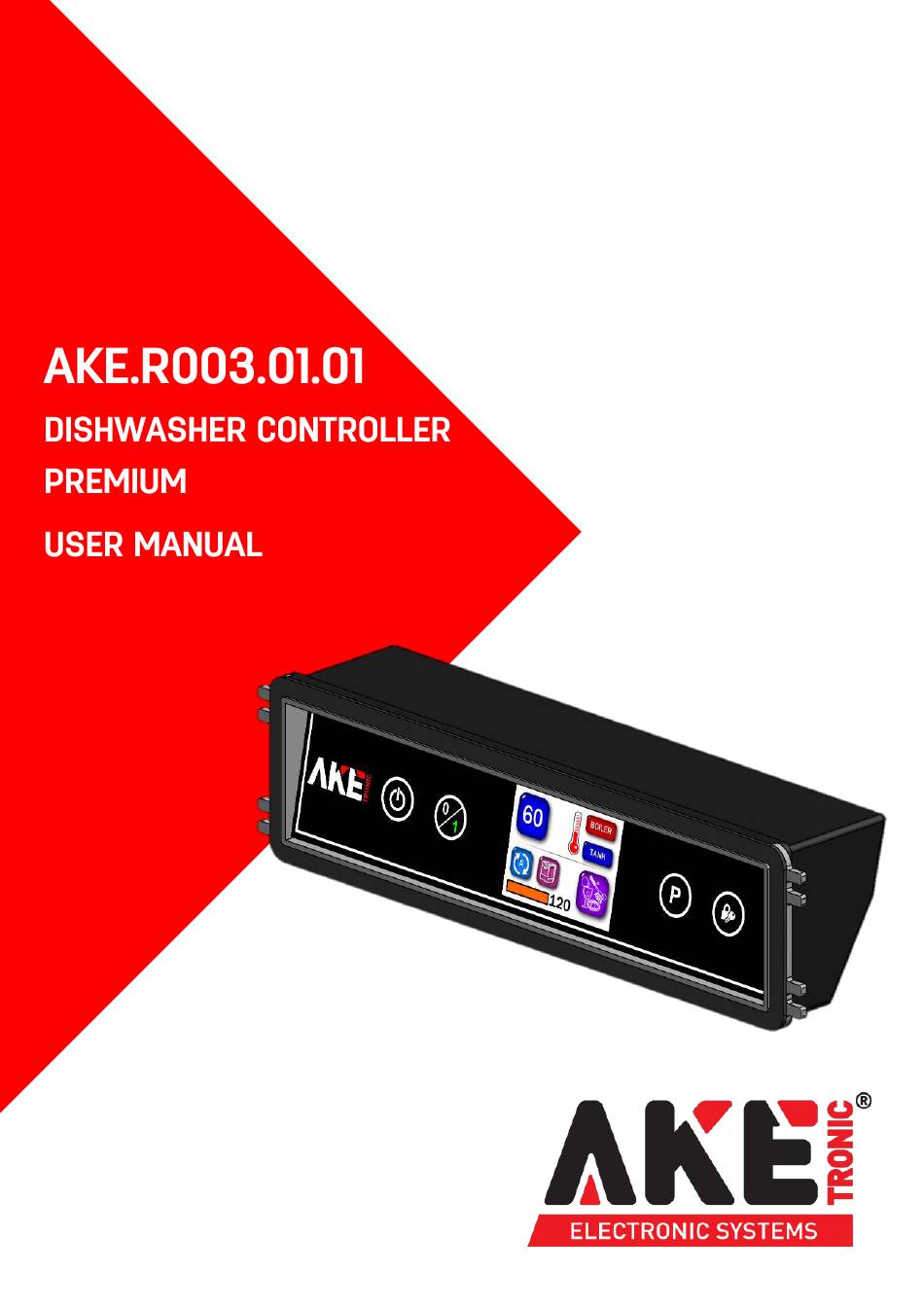

Summary of Contents for AKE Premium AKE.R003.01.01
- Page 2 1.DEVICE DIMENSIONS 2.RELAY CARD DIMENSIONS...
- Page 3 3.DEVICE CONNECTION DIAGRAM...
- Page 4 4. CAUTIONS • Be sure to read the operating instructions before using the appliance and follow the instructions and cautions in the manual when using the appliance. Otherwise the responsibility for accidents and damages that may belong to the buyer. •...
- Page 5 5. . HOW TO USE TOUCH PANEL • When the machine is power on, do not touch all buttons until the light of the On / Off button is on. • As indicated in the following illustration 6. DEVICE FEATURES It is an elegant and stylish control panel designed for running Dıshwasher Controller.
- Page 6 • Plastic enclosure 6.2 OPTIONAL FEATURES • Different Supply Voltage 12-24V AC/DC • Customer specific label and software changing. 7.DEVICE FUNCTIONS ON/OFF : Please touch ON/OFF button to turn on or off the machine when machine energised. START-STOP: Please touch START/STOP button to start washing operation.
- Page 7 Washing Operation is started. Rinse operation is started. Washing operation is finished. 60 seconds washing program is selected. 90 seconds washing program is selected. 120seconds washing program is selected. Drain Program is selected. Machine Internal Washing Program is selected. Machine Internal Washing operation should be started. Water level is not enough.
