Artison MNT-STUDIO-TV Installation Manual

Artison Studio Soundbars TV Mount Installation Guide [MNT-STUDIO-TV]

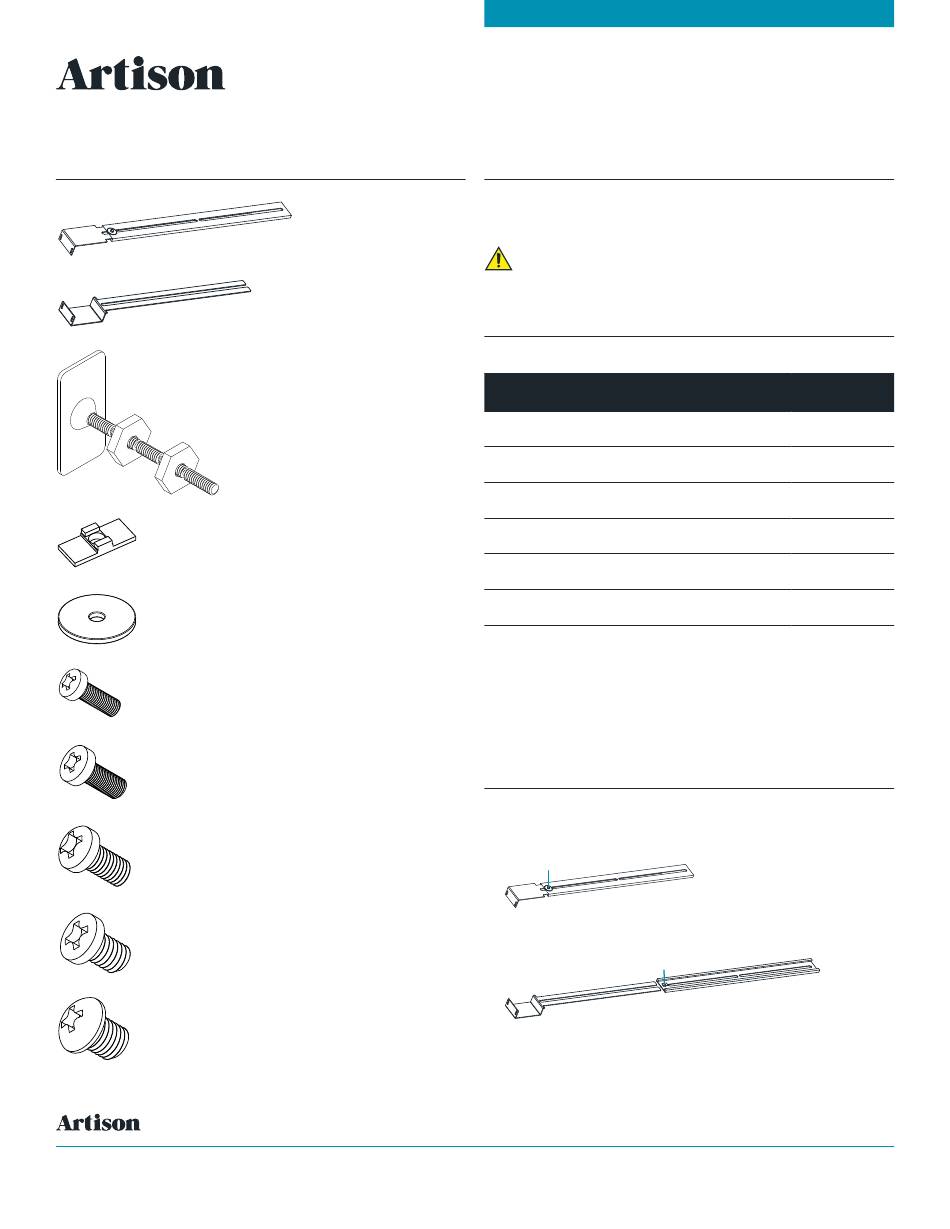

Box Contents

(2) L-Shaped Bracket Assembly (093-3221-xx)
(2) C-Shape Bracket (071-1111-xx)
(2) UMB Stabilizer (015-0223-xx)
(4) Undermount Spacer (015-0271-xx)
(4) Washer 25mm OD, 5mm ID (039-0437-xx)
(4) M4x11.5mm Hex Screw (039-0441-xx)
(4) M5x11.5mm Hex Screw (039-0442-xx)
(4) M6x11.5mm Hex Screw (039-0443-xx)
(4) M8x11.5mm Hex Screw (039-0444-xx)
(4) M10x11.5mm Hex Screw (039-0445-xx)
(1) Installation Guide (this document)
Studio Soundbar TV Mount Installation Guide | 009-2001-00
Copyright 2020 Savant Systems, Inc | 201216

Basic Information

The TV Mount Hardware is designed to be used with the VESA
Mounting points on flat panel televisions. The Installer MUST verify that
the TV mount/stand can hold the excess weight of the Soundbar. The
Soundbar can be mounted above or below a TV.
IMPORTANT! If the bolts that were included with the TV mount
in use are not long enough to account for the extra 0.3 in (8mm)
longer bolts will have to be acquired.

Bracket Selection

The choice of bracket is based on the thickness of the TV. Ideally the
Soundbar should be flush with the front of the TV.
TV Thickness Bracket
0.9 - 1.2 in C-Shape
(2.3 - 3.7 cm)
1.8 - 2.8 in C-Shape
(4.6 - 7.1 cm)
2.7 - 3.6 in C-Shape
(6.8 - 9.1 cm)
2.1 - 2.5 in L-Shape
(5.3 - 6.4 cm)
3.0 - 4.0 in L-Shape
(7.6 - 10.2 cm)
3.8 - 4.7 in L-Shape
(9.7 - 11.9 cm)
TV Thickness - Depth of the TV from the front of the screen to the
back of the VESA mounting points.
Distance from Wall - Refers to the distance from the Soundbar
mounting bracket at the VESA mounting points, and the wall behind
the TV.
NOTE: If bracket extensions are required they are included with the
Soundbar. Also some M5x10mm screws and washers included with the
soundbar will be required.

Change Bracket Type

The mounting bracket assembly comes with the L-Shaped Bracket
installed. To change the bracket type do the following:
1. Use a 5/16th (8mm) wrench or socket to loosen the set bolt. Do not
remove the set bolt completely.
Set Bolt
2. Flip over the bracket
3. Slide out the L-Shaped bracket.
4. Check that the lock nut is still aligned.
5. Slide in the C-Shaped bracket.
6. Tighten the set bolt.
www.savant.com/artisonspeakers
1 of 2
Extension Distance from
Wall
None 1.1 in (2.8 cm)
50 mm 1.1 in (2.8 cm)
70 mm 1.1 in (2.8 cm)
None None
50 mm None
70 mm None
Lock Nut
45 Perseverance Way, Hyannis, MA 02601
| 508.683.2500
