HAGAB INTACT Manual

Fire/fire gas damper
Hide thumbs Also See for INTACT:

Advertisement

Table of Contents

TABLE OF CONTENTS

Accessories
-Angle bracket (supplied)
-Installation sleeve
-Protection grilles

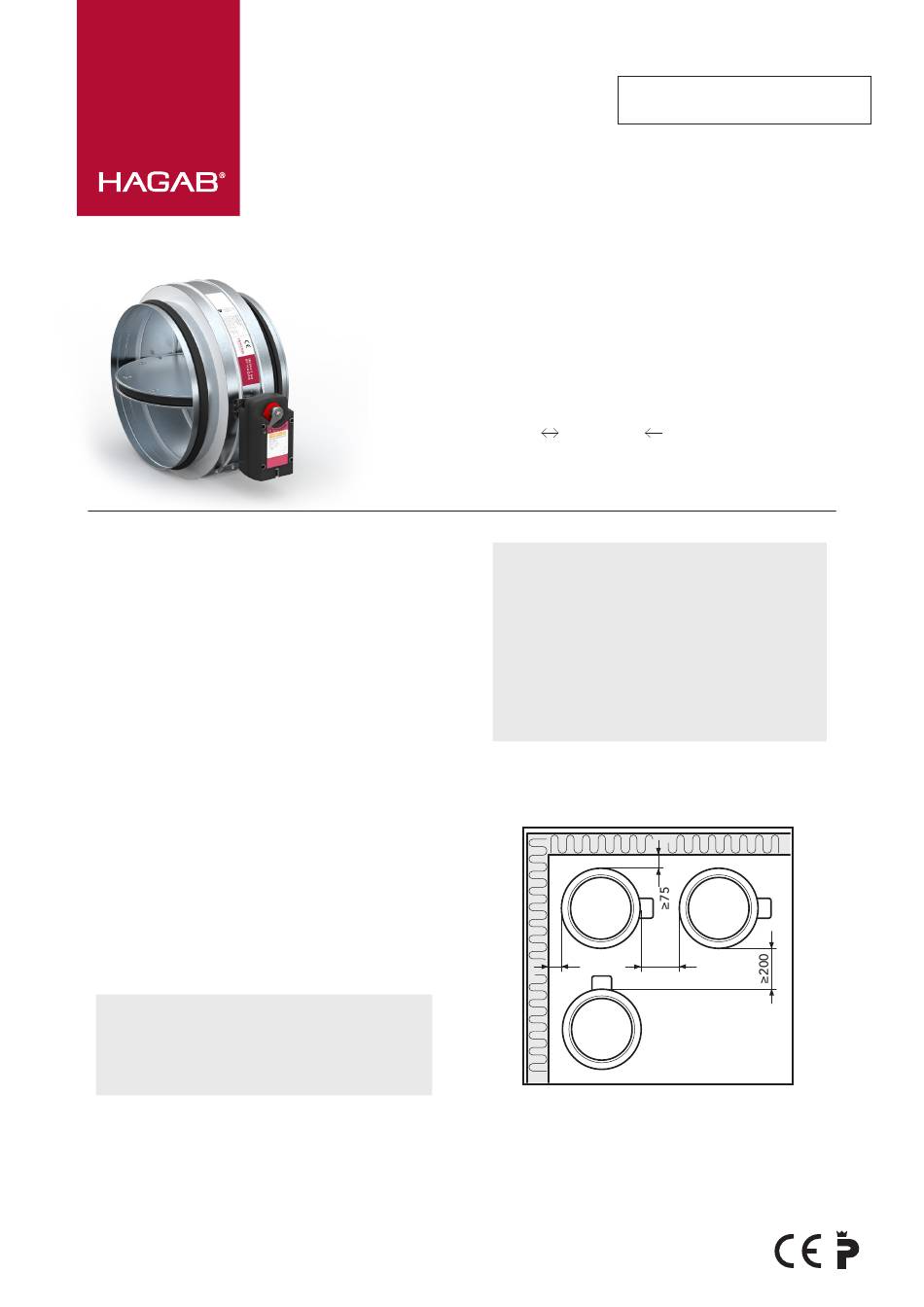

HAGAB - INSTALLATION, OPERATION AND MAINTENANCE
HAGAB - INSTALLATION, OPERATION AND MAINTENANCE
INTACT
INTACT
Fire/Fire gas damper
Fire/Fire gas damper
According to EN1366-2
Circular damper for prevention of the spread of fire and fire
gas. For installation against or separated from fire-rated struc-
tural elements. The damper has a fire resistance rating of
EI 60 (ve i
o)S, EI 60 (ho i
0402-CPR-SC1119-11. Tested according to a harmonised
product standard, which means that the product is CE marked.
RISE certification provides increased safety and quality.
The installations of the dampers are tested
according to SS-EN 1366-2:2015.
The walls can be flexible walls or equivalent,
2
that fulfills fire resistance class EI60.
Solid building components, rigid walls or
4
floors, can be of cellular concrete block,
concrete, solid brick or equivalent, that
fulfills fire resistance class EI60.
6
8
9
≥75
10
The minimum distance between dampers must be 200 mm.
The minimum distance to the floor/wall must be 75 mm.
1
Drawing name:
o)S. See EC certificate
≥200
[mm]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTACT and is the answer not in the manual?

Questions and answers

Related Manuals for HAGAB INTACT

Summary of Contents for HAGAB INTACT

  • Page 1: Table Of Contents

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT INTACT Fire/Fire gas damper Fire/Fire gas damper According to EN1366-2 Circular damper for prevention of the spread of fire and fire gas. For installation against or separated from fire-rated struc- tural elements.

  • Page 2: Installation Of Dampers

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 4. Sealing INSTALLATION OF DAMPERS Seal between the damper and the wall with a fire-resistant AGAINST STRUCTURAL ELEMENTS sealant. WITHOUT CAULKING AND REFINISHING 1. Hole dimensions Damper dimension +5 mm for sizes 100-315 mm.
  • Page 3 HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 6. Seal around the edge. 8. Protection grilles Seal around the edge of the damper with a fire-resistant If the fire/fire gas damper is not connected to the duct sealant.

  • Page 4: Installation Of Dampers With An Installation Sleeve

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 2. INSTALLATION OF DAMPERS 4. Centre in the hole Place the damper casing flush against the structural element, WITH AN INSTALLATION SLEEVE centre it in the hole and fix laterally with the damper and WITH CAULKING AND REFINISHING duct system suspension devices.
  • Page 5 HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper If the fire/fire gas damper is not connected to the duct system, go to step 7. 6. Fix the duct and install the thermal sensor. Fix the duct to the damper fitting with screws and install the thermal sensor.

  • Page 6: 3. Installation Of Dampers - Separated Walls

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 3. INSTALLATION OF DAMPERS – SEPARATED WALLS 1. Installation sleeve For installation in flexible walls, use an installation sleeve or a similar approved sealant and caulking for the duct lead-through.
  • Page 7 HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 4. Thermal sensor Install the thermal sensor with the sensing unit in the air flow without hindering damper blade movement. 5. Insulation Insulate the duct to an approved method according to the insulation supplier’s instructions.

  • Page 8: Installation Of Dampers Against Joists

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 4. INSTALLATION OF DAMPERS AGAINST JOISTS 4. Centre in the hole Place the damper casing flush against the structural element, Approved for outside fire cell centre it in the hole and fix laterally with the damper and duct system suspension devices.

  • Page 9: Installation Of Dampers Against Joists (Only For Ø400-630)

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper 5. INSTALLATION OF DAMPERS 4. Sealing Seal between the damper and the joists with a fire-resistant AGAINST JOISTS sealant. WITHOUT CAULKING AND REFINISHING Approved for outside fire cell sizes Ø400 - 630 mm.

  • Page 10: Operation And Maintenance

    HAGAB – INSTALLATION, OPERATION AND MAINTENANCE Drawing name: INTACT Fire/Fire gas damper CONTROL OPERATING AND MAINTENANCE The fire gas damper must be function tested at least once INSTRUCTIONS every 48 hours. The function test means that the dampers Periodic inspection once per year.
