Knox KEYDEFENDER KD-1KE1 Quick Start Installation Manual

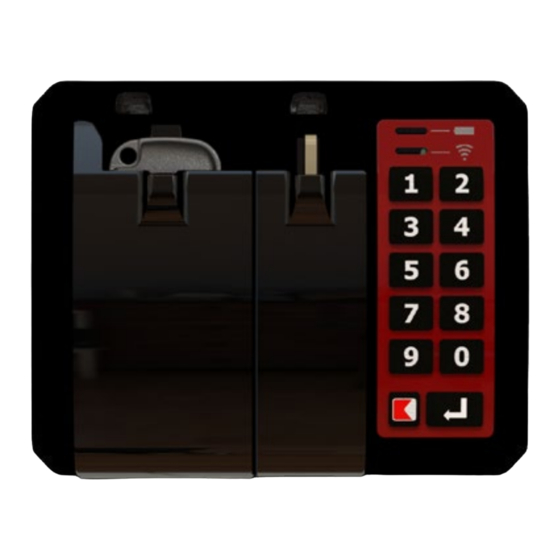

Knox KeyDefender is a key retention and programmer/charger for the Knox eKey and/or Knox mechanical
master key. With vehicle use, it can be mounted using a RAM® Mount system. Please consult the KeyDefender
User Guide and Networking Guide for programming and set up information.

KeyDefender Specifications

MECHANICAL SPECIFICATIONS
KeyDefender
Models
KD-1KE1
Supports one
Description
eKey
4.3"W X 4.5"H
Dimensions
X 3.0"D
Weight
1.4 lb
Materials
Composite materials
ELECTRONIC SPECIFICATIONS
Operating Temp
-20 to +65° C
Storage Temp
-40 to +80° C
Humidity
95% RH
Up to 16,000 audit events
Memory
Up to 5,000 PIN
Power
2A @ 12VDC
Real Time Clock
CR123-A Lithium 5 Year Replaceable
Battery
KeyDefender Package Contents
• KeyDefender (Dual or single)
• Wiring pigtail 18 AWG
• USB A Male to C Male
• Heat Shrink Tubing 3/8" ID
• Terminal Butt Splice 14-18 AWG
Required Tools & Materials
• Socket screwdriver for 1/4" hex shank
• Tool Hand Wire Crimper
• Heat Source
FCC NOTICE:
This device complies with Part 15 A of FCC Rules. The operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation. Any changes or modifications could void the user's authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. This Device Contains:
FCC ID: 2AOVI-KNOX- RAS, IC: 23479-KNOXRAS.
1601 W. DEER VALLEY RD. PHOENIX, AZ 85027
©Knox Company. All rights reserved. RAM® is a registered trademark of National Products Inc.
KD-1KM1 KD-1KD2
Supports one
Supports one eKey and one
Mechanical
Mechanical Key
Key
3.5"W X 4.5"H
5.5"W X 4.5"H X 3.0"D
X 3.0"D
1.4 lb 1.8 lb
| T. 800-552-5669
KNOX KEYDEFENDER
QUICK START INSTALLATION GUIDE
Mounting Brackets
KD-MB-R5
5" Mount
2.5"W X 5.0"H
0.9 lb
Aluminum
Wiring
Power
Programming
Networking
Wifi
| F. 623-687-2290 | TECHSUPPORT@KNOXBOX.COM
KD-MB-R7 KD-MB-R11
7" Mount 11" Mount
2.5"W X 7.0"H 2.5"W X 11.0"H
1.1 lb 2.1 lb
2-Wire 18 AWG
USB A Male to C Male
802.11 b/g/n (2.4 gHz)
| KNOXBOX.COM
OPE-ESYSLR-0550
™
