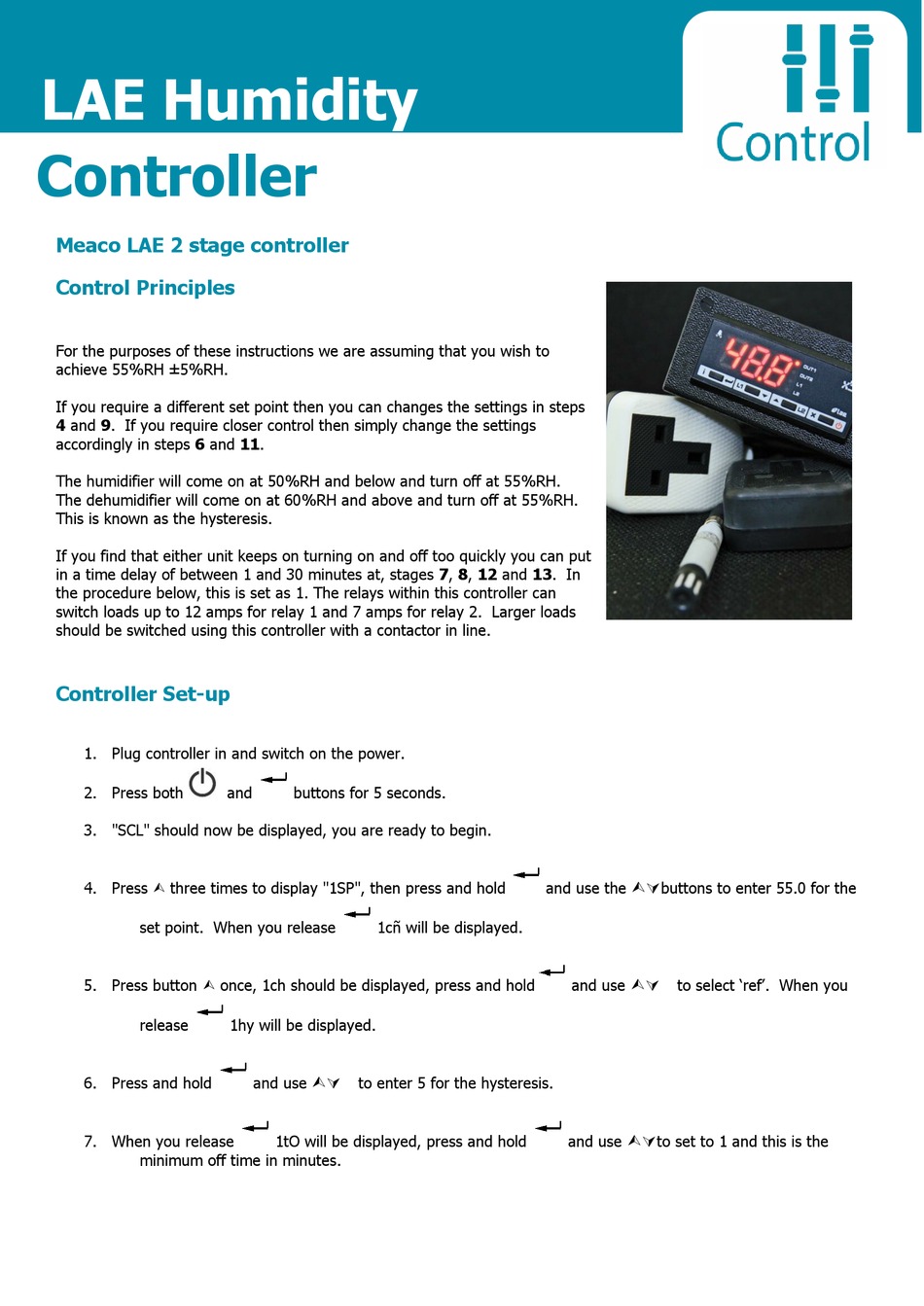

Meaco LAE Quick Start Manual

LAE Humidity
Controller

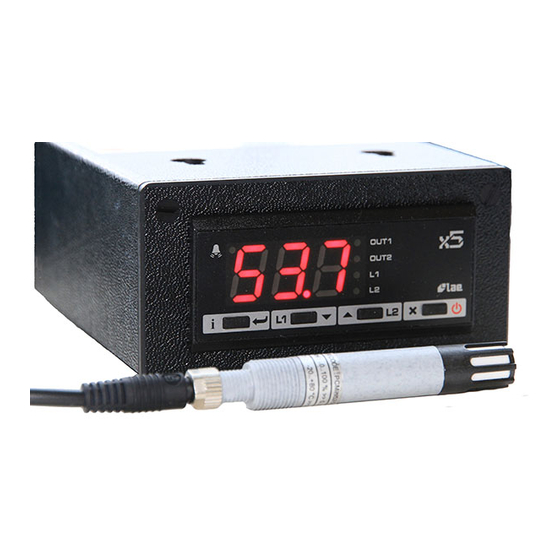

Meaco LAE 2 stage controller

Control Principles

For the purposes of these instructions we are assuming that you wish to
achieve 55%RH ±5%RH.
If you require a different set point then you can changes the settings in steps
4 and 9. If you require closer control then simply change the settings
accordingly in steps 6 and 11.
The humidifier will come on at 50%RH and below and turn off at 55%RH.
The dehumidifier will come on at 60%RH and above and turn off at 55%RH.
This is known as the hysteresis.
If you find that either unit keeps on turning on and off too quickly you can put
in a time delay of between 1 and 30 minutes at, stages 7, 8, 12 and 13. In
the procedure below, this is set as 1. The relays within this controller can
switch loads up to 12 amps for relay 1 and 7 amps for relay 2. Larger loads
should be switched using this controller with a contactor in line.

Controller Set-up

1. Plug controller in and switch on the power.
2. Press both
3. "SCL" should now be displayed, you are ready to begin.
4. Press  three times to display "1SP", then press and hold
set point. When you release
5. Press button  once, 1ch should be displayed, press and hold
release
6. Press and hold
7. When you release
Minimum Off Time in minutes.
and buttons for 5 seconds.
1cñ will be displayed.
1hy will be displayed.
and use  to enter 5 for the hysteresis.
1tO will be displayed, press and hold
and use the  buttons to enter 55.0 for the
and use to select 'ref'. When you

and use  to set to 1 and this is the
