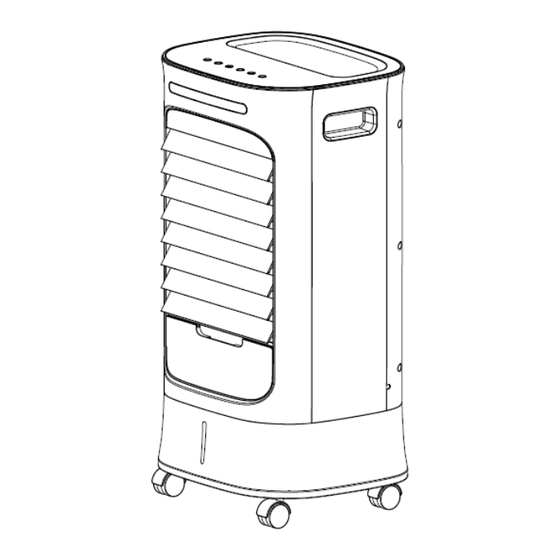

- Page 1 U S E R M A N U A L 10 LITRE Air Cooler wiTh REmoTE ConTRoL 88 W • Natural-ENErgy EfficiENt • whEEls for Easy traNsport • cooliNg with No comprEssor • 15 hour timEr • powErful airflow • 10 litrE watEr taNk •...
-
Page 2: Table Of Contents
INDEX • IMPORTANT INSTRUCTIONS • INTENDED USE • IMPROPER USE • PERSONNEL QUALIFICATIONS • I TECHNICAL PARAMETERS • II PRODUCT STRUCTURE DIAGRAM • III ELECTRICAL SCHEMATIC DIAGRAM • IV INSTRUCTION MANUAL • OPERATION INSTRUCTION • INSTALLATION METHOD OF REMOTE CONTROLLER BATTERY •... -
Page 3: Important Instructions
PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS This product is intended for HOUSEHOLD USE ONLY and not for commercial, industrial or outside use. IMPORTANT INSTRUCTIONS Read and save these important safety instructions before using this fan, when using electrical fans, basic safety precautions should always be followed including the following: WARNING: To reduce the risk of fire or electrical shock, do not use this product with any solid-state speed control device. - Page 4 IMPORTANT INSTRUCTIONS - CONTINUED •The use of attachments is not recommended and may cause hazards. •Always use on a dry, level surface. •Do not operate if the Air Cooler housing is removed or damaged. •Do not operate any Air Cooler with a damaged cord or plug. •Discard Air Cooler or return to an authorized service facility for examination and/or repair.
-
Page 5: Intended Use
INTENDED USE Only use the device for cooling the air in interior spaces while adhering to and following the technical data. Intended use comprises cooling the air in: • living spaces • offices • computer rooms • call centres IMPROPER USE •... -
Page 6: I Technical Parameters
I TECHNICAL PARAMETERS Rated voltage: 220V ~ 230V Frequency: 50 - 60Hz Rated power input: 88 W Air speeds: ≥1.8m/s Noise: 58dB (A) Protection against electric shock level: II II PRODUCT STRUCTURE DIAGRAM 1. Button 9. Rear housing 2. Display panel 10. -
Page 7: Electrical Schematic Diagram
III ELECTRICAL SCHEMATIC DIAGRAM IV INSTRUCTION MANUAL Instruction to add water/ice. Method: Open the cover of water tank, add water or ice. Please be careful not to exceed the maximum water level. The machine is equipped with two ice blocks. You are able to freeze the ice blocks then insert them into water tank. Water level window... -
Page 8: Operation Instruction
OPERATION INSTRUCTION Control panel: Display panel: ON/OFF: • Press this button in standby mode to turn it on. • You are now able to select a function. • Once you have completed using the Air Cooler, pressing this button will turn off the Air Cooler and return it to standby mode. Air flow: •... - Page 9 Mode: • Press this button to set the wind mode. • Press to enter the natural mode for the first time; twice to enter the sleep mode; The setting sequence is as follows: Normal Natural wind Sleep wind wind (no display) cycle Natural mode: •...
- Page 10 Timer: • Press this button in startup state to set the timer for shutdown the Air Cooler. cancel Wind: • Press this button to turn on the air swing, press again to close. Humid: • When the water level in the water tank is not lower than the lowest water level, the humidifying function can be activated by pressing this button.
-
Page 11: Installation Method Of Remote Controller Battery
INSTALLATION METHOD OF REMOTE CONTROLLER BATTERY negative positive The battery cover can be removed by gently pulling it down. Put the battery into the battery box. (Note the positive and negative direction of the battery) Put the battery cover into the original outlet and fasten it completely. -
Page 12: Cleaning Instruction
CLEANING INSTRUCTION Cleaning method for water tank/screen cloth: Pull the plug out of the main electrical supply and pour out the water. Open the water tank cover and wipe the water tank with a damp cloth. If it is not clean, brush it with a soft brush to remove any build up. -
Page 13: Year Limited Warranty
2 YEAR LIMITED WARRANTY The Manufacturer hereby provides a warranty to the original purchaser of this product (‘the consumer’) that this product will be free of manufacturing defects in materials and workmanship which under normal, personal, family or household use (commercial use expressly excluded) manifest themselves within the 2 year from the date of purchase. -
Page 14: Repairs Procedure
REPAIRS PROCEDURE Should you experience any faults on your Aim product, please adhere to the following procedure to have the fault rectified speedily and professionally. You can return the product to the store. Call the Pick n Pay CUSTOMER CARE number on 0860 30 30 30 (only in South Africa) to report the fault and make arrangements for the next steps. - Page 15 15 |...
