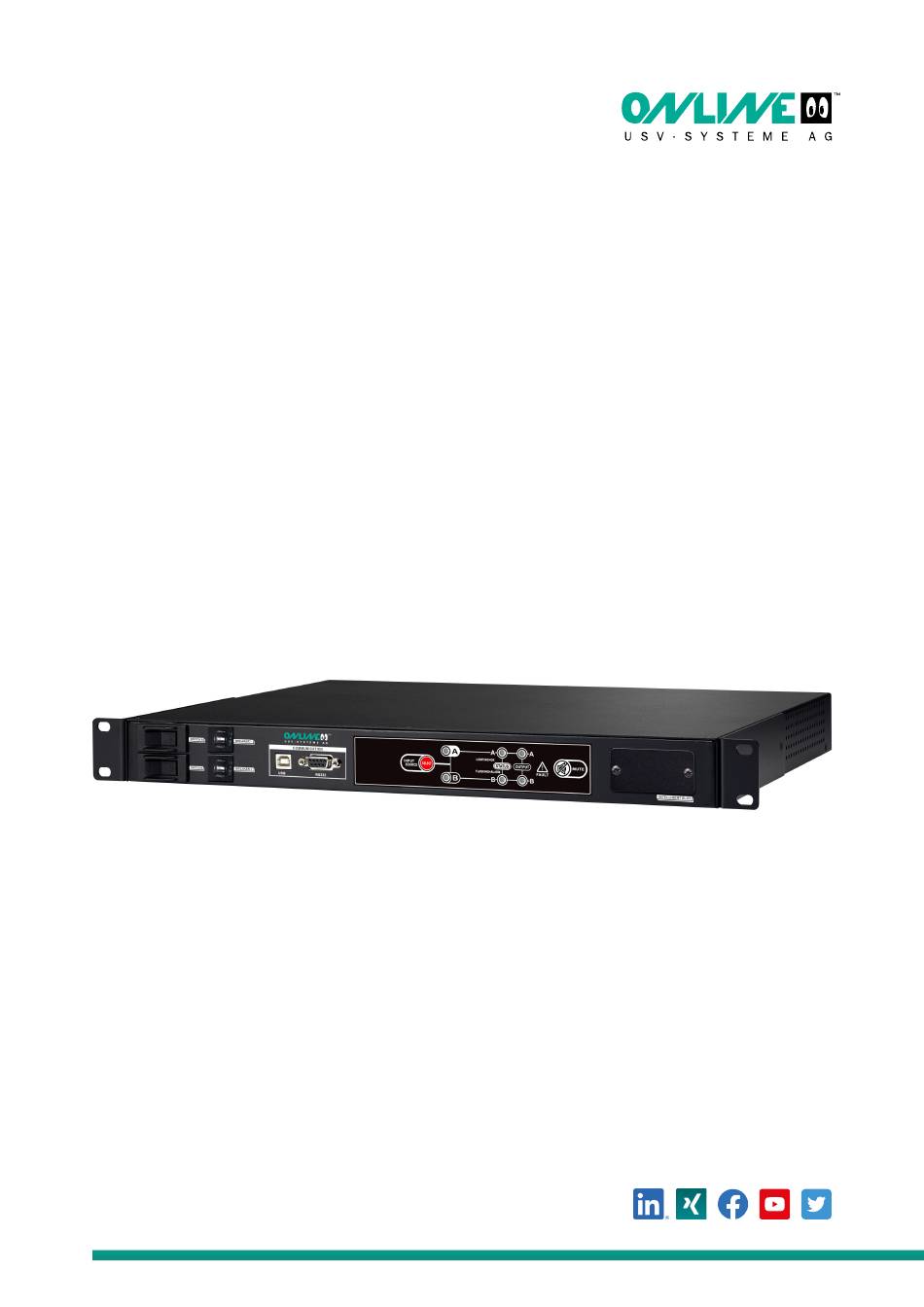

- Page 1 USER MANUAL AUTOMATIC TRANSFER SWITCH Model ATS-16A www.online-ups.com...
-
Page 2: Table Of Contents
Content Introduction ..............................4 Product Overview ............................5 Safety Warnings ............................... 6 Operation Indicators & Status ........................7 Installation ................................ 8 Operation ................................9 Communication Port ............................. 10 Trouble Shooting ............................12 Specifications ..............................13 Appendix ................................. 14 Imprint ..................................15... -
Page 3: Introduction

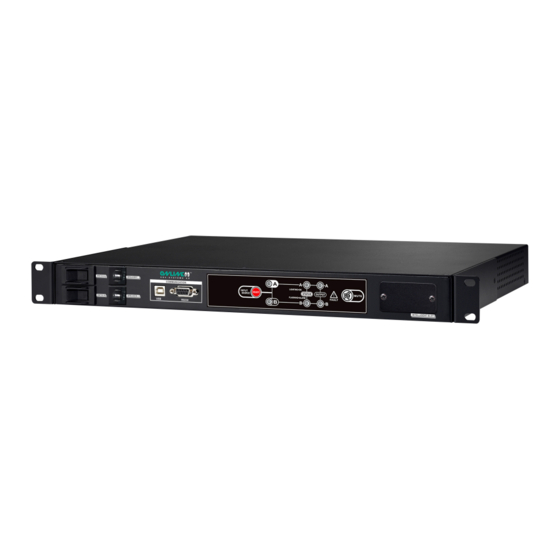

Product Overview AUTOMATIC TRANSFER SWITCH Front View Model ATS-16A Introduction This ATS product is designed with two independent power inlets to supply power to the load from a primary power source. Should primary power source fail, the secondary will automatically back up the connected equipment without any interruption. -
Page 4: Safety Warnings
Safety Warnings 4 Operation Indicators & Status Before using the unit, please read all instructions and cautionary markings on the unit, this manual and the batteries. WARNING • The ATS must be connected to earth when in use. In line with current regulations, only use the cables that have been supplied with the machine. -
Page 5: Installation
Installation 6 Operation Power On/Off PLEASE NOTE Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Put the input power switch in “ON” position. The output will then be supplied by the source set as selected. Mounting the Unit Setting priority of power source The unit can be mounted in a standard 19"-rack. -
Page 6: Communication Port
Communication Port Contact Ports The contacts port is formed using six (6) pins numbered from left to right (see fig. 1), which can be connected The ATS is supplied with the following communication ports: to an external monitoring system (such as a BMS) in order to monitor the operational status of the ATS. The external equipment must respect the voltage and current characteristics of contacts port. -
Page 7: Trouble Shooting
8 Trouble Shooting 9 Specifications Use the table below to solve minor problems. Model ATS-16A Problem Possible Cause Solution Input Input Voltage 220/230/240 VAC The ATS with the mains No connection with input plugs Connect the mains to the input plugs as indicated... -
Page 8: Appendix
When input voltage of source B is beyond this range, ATS will automatically switch to power from Source A. The content is copyright © 2022 by ONLINE USV-Systeme AG. Return voltage point When input voltage of Source B is back to normal, Low point: 190V All rights reserved. - Page 9 ONLINE USV-Systeme AG • Luise-Ullrich-Straße 8 DE 82031 Grünwald • •...
