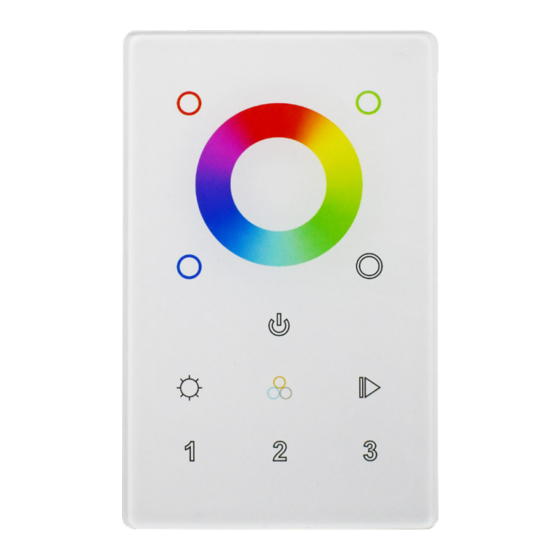

RGBW DMX MASTER CONTROLLER
Red channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Touch color wheel, touch to
Blue channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to select Warm White,
Natural White and Cool White
Press and hold down to
increase/decrease light
19.4 mm
select R/G/B color
mixed by RGB colors
intensity
DC Power input
Front side
43.58 mm
DMX512 Wall Panel
Controller
DC INPUT
DMX OUTPUT
V-
V+
D-
D+ GND
Back side
Installation GUIDE
Model: RGBW-DMX-WC
Green channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
White channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to switch on/off
Click to play / pause the 10 built-in
effects, Press and hold down to
speed up/down the running effects
Click to choose zone, Press
and hold down to turn Off/On
corresponding zone
DMX512 signal output
210915 INSTALLATION GUIDE | RGBW DMX MASTER CONTROLLER | 1 OF 3
Advertisement
Table of Contents
Summary of Contents for GM Lighting RGBW-DMX-WC
- Page 1 INSTALLATION GUIDE RGBW DMX MASTER CONTROLLER Model: RGBW-DMX-WC Red channel:Click to turn off/on Green channel:Click to turn off/on Press and hold down to increase/ Press and hold down to increase/ decrease light intensity decrease light intensity Touch color wheel, touch to...
- Page 2 PRODUCT DATA • Touch sensitive Output Signal DMX512 signal • Glass interface(white & black) • Standard DMX512 Signal output Power Supply 12-24VDC • Control RGBW color • Control 3 zones synchronously and separately Power consumption < 20 mA • Waterproof grade: IP20 Operating temperature 0-40°C Relative humidity...
- Page 3 Install Additional Components, Verify Connections and turn main power ON at breaker. SYSTEM WORKING IMPROPERLY? Turn power OFF at circuit breaker and verify all connections. Review WIRING and TROUBLESHOOTING ©2021 GM Lighting 18700 Ridgeland Ave., Toll-Free: (866) 671-0811 www.gmlighting.net tech@gmlighting.net Specifications are subject to change...
