MNT ZZ9000AX Quick Start Manual

MNT ZZ9000AX R-1 Quickstart Manual
Dear MNT Customer,
Thank you for purchasing the MNT ZZ9000AX Audio Expansion for the MNT ZZ9000
multifunction graphics card for Commodore Amiga computers.
Package Contents
• MNT ZZ9000AX Card
• Stainless steel slot bracket
• Bag containing 2× M2 mounting screws and 2× M2 nuts
• Data Cable (complicated cable for connecting ZZ9000AX to ZZ9000)
• Internal Audio Cable (3 leads)
• This manual
Warranty
MNT Research covers the warranty to the extent required by law for the unmodified
product. Warranty does not cover user supplied firmware or any modifications made
to the card, nor does it cover any damage by inserting it into a computer or other
user supplied device. Use at your own risk!
Declaration of Conformity
MNT ZZ9000AX may only be operated in a shielding steel enclosure.
MNT Research assures that the included product complies with the
requirements of the following European Directives and DIN standards:
EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
RoHS Directive 2011/65/EU
DIN EN 55022:2011-12
DIN EN 55024:2016-05
DIN EN 61000-6-1:2007
DIN EN 61000-6-3:2007/A1:2011/AC:2012
DIN EN 61000-3-2:2014
DIN EN 61000-3-3:2013
Lukas F. Hartmann, Managing Director
MNT Research GmbH
March 16th, 2022
Hardware Installation
1. Remove the protective tape from the steel slot bracket. Use a cloth to wipe away
any residue from the bracket.
2. Mount the slot bracket to ZZ9000AX with 2×
supplied M2 screws and nuts. The nuts go on
the bottom side as pictured.
3. Connect ZZ9000AX to ZZ9000 using the Data and Internal Audio Cables as
described in the "Hardware Installation: Cables" section of this manual.
4. Mount ZZ9000AX above ZZ9000 in your Amiga 2000/3000/4000.
Software Installation
1. Install the AHI system version 4.18. We recommend not to use AHI version 6, as it
has significantly higher CPU usage and can cause audio stuttering.
• AHI on Aminet: http://aminet.net/package/driver/audio/ahiusr_4.18
2. Download and install the ZZ9000AX drivers that are included in the ZZ9000 driver
package. Power cycle your Amiga. Then, configure ZZ9000AX in AHI Preferences.
• ZZ9000AX drivers and tools: https://mntre.com/zz9000
SigmaDSP
The audio chip on ZZ9000AX—Analog Devices ADAU1701—features a 28-/56-bit, 50
MIPS SigmaDSP (digital audio processor). The DSP program determines the signal
flow to and from ZZ9000AX, including digital mixing and optional effects. The default
program (which mixes AHI and Amiga Paula sound) is included in the ZZ9000
firmware, but can be changed with the free SigmaStudio software from Analog
Devices and an upcoming tool from MNT Research. Visit the ZZ9000 website for
tools and updates.
MNT Research GmbH
Fehlerstr. 8, 12161 Berlin
WEEE: DE 33315564
https://mntre.com
Get updates and source code at:
https://mntre.com/zz9000
Need help? Write to
support@mntre.com
Join our IRC channel #mnt-amiga on
irc.libera.chat

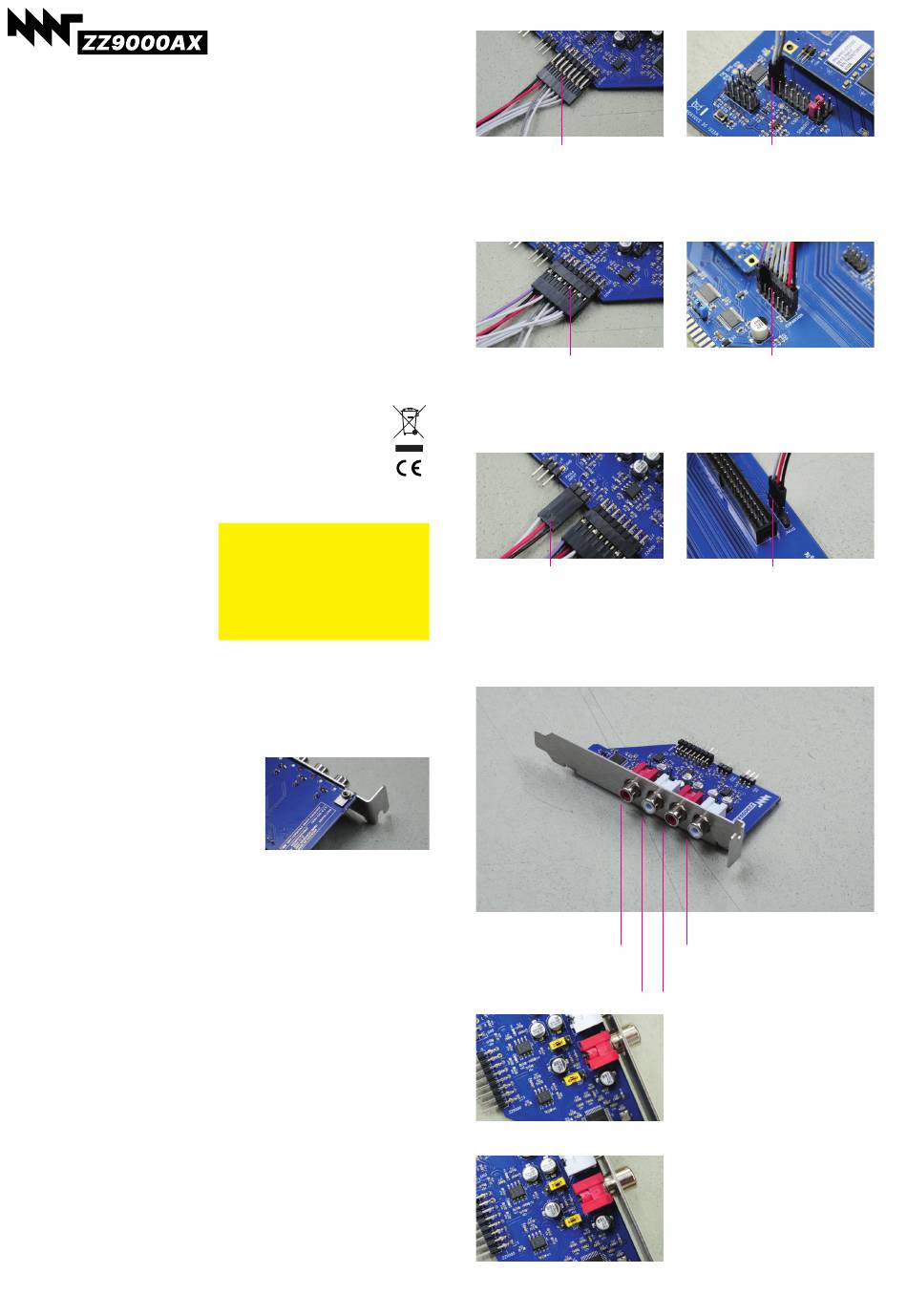

Hardware Installation: Cables
Connect the first half (8 pins, black/
red/gray/white) of the Data Cable to
the bottom row of ZZ9000 header on
ZZ9000AX as pictured.
Connect the second half (8 pins,
only 1 purple and 2 white leads) of
Data Cable to the top row of ZZ9000
header on ZZ9000AX as pictured.
Connect one end of the Internal
Audio Cable to the PAULA INPUT
header on ZZ9000AX as pictured.
Aux input/output
(Right channel)
Aux input/output
(Left channel)
Connect white and gray leads to the
second column of the MIO header on
ZZ9000. Make sure to skip the first
two pins of the header!
Connect the second half (7 pins) and
the single purple lead of Data Cable
to the EXPANSION header on ZZ9000
as pictured. Black and red go near
the EXPANSION label.
Connect the other end of the Internal
Audio Cable to the AAUD header on
ZZ9000 as pictured. The 2 pins close
to the AAUD label are left open.
Line output
(Left channel)
Line output
(Right channel)
Jumpers and Headers
ZZ9000AX has two IN/OUT headers
that you can use to set the direction
of the two auxiliary audio channels.
When the jumpers are in the IN
position, you can input or sample
stereo audio through these channels.
In the OUT position, the channels can
be used as additional outputs.
Please note that if you change the
jumpers, you also need to set up the
DSP program accordingly. By default,
the DSP program is configured for
audio input on the auxiliary channels.
