Summary of Contents for Torrent 30" SHARK

  • Page 1 30" SHARK Owner’s Manual...

  • Page 2: Table Of Contents

    30" SHARK Owner’s Manual Table of Contents Twelve Month Limited Hardware Warranty ............ 2 30" SHARK Operations and Maintenance ............3 Audience ............................3 Precautions ............................3 Operation............................5 Maintenance Schedule ..................7 Lubrication ............................8 30" SHARK Technical Specifications .............. 9 Preventive Maintenance Instructions ............

  • Page 3: Twelve Month Limited Hardware Warranty

    30" SHARK Owner’s Manual Twelve Month Limited Hardware Warranty THE FOLLOWING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, OR STATUTORY, INCLUDING, BUT NOT BY OF LIMITATION, ANY WARRANTY OR MECHANANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WITHOUT LIMITING THE GENERABILITY OF THE FOREGOING, RWI SPECIFICALLLY DISCLAIMS AND EXCLUDES ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE OR USE.

  • Page 4: 30" Shark Operations And Maintenance

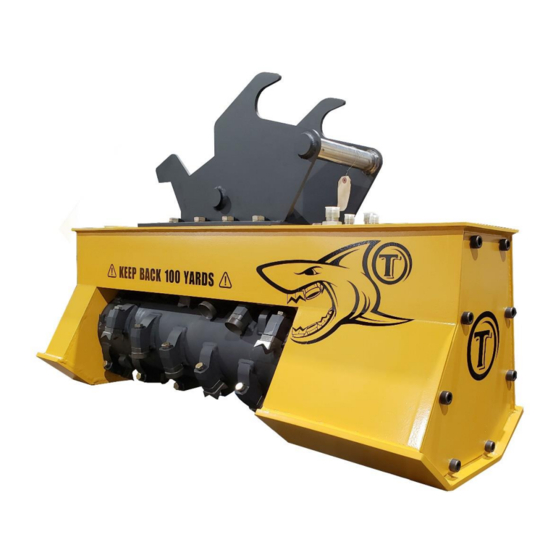

    100 meters from where the mulching equipment is being operated. Audience This user guide is written for operators who use and maintain the Torrent 30” SHARK Forestry Mulching Attachment during vegetation clearing activities. Precautions...
  • Page 5 30" SHARK Owner’s Manual WARNING: Because of the nature of the hydraulic motor protective valving supplied on the mulching unit, the cutting drum will continue to rotate after the unit is shut down until all inertial energy is expended from the cutting drum. Always allow the unit at least two minutes to “run-down”...

  • Page 6: Operation

    30" SHARK Owner’s Manual Operation Clearing operations should be carried out only by a competent equipment operator familiar with the safe operation of the 30” SHARK when installed to the applicable carrier. The operator must understand the contents of this manual. Before starting the supply of hydraulic oil to the mulcher the operator must verify that equipment, personnel, property, livestock and roadways are greater than 100 meters from where the mulching equipment is being operated.
  • Page 7 30" SHARK Owner’s Manual Vegetation 2" (50 mm) and larger in diameter, often require that the top be cut off and mulched separately on the ground. In addition, with respect to larger growth it is faster and more efficient to chip/mulch as much of the tree as possible while it is standing (still on the stump).

  • Page 8: Maintenance Schedule

    30" SHARK Owner’s Manual Maintenance Schedule Daily Weekly Checks & Services (50 Hours) Check hydraulic conductors for leaks or damage Lubricate drum shaft bearings with FAG Arcanol Multitop rolling bearing grease (1 shot each) Lubricate drive coupling with multipurpose EP grease (2 shots) Inspect cutters for excessive wear or breakage...

  • Page 9: Lubrication

    Use of FAG Arcanol Multitop Rolling Bearing Lubricant is recommended for use in the lubrication of all Torrent Shark series drum shaft bearings. Use of multipurpose extreme pressure grease is recommended for lubrication of drive coupling components...

  • Page 10: 30" Shark Technical Specifications

    30" SHARK Owner’s Manual 30" SHARK Technical Specifications Operating weight (Standard) 680 lb/330 Kg Cutting width 30 inches Rotational speed (RPM) 2800 (minimum) 3200 (max. continuous) Carrier power requirement 40 Hp or 28 Kw (minimum) Cutter type Fixed round or square Cutter quantity Drive type Direct...

  • Page 11: Preventive Maintenance Instructions

    30" SHARK Owner’s Manual Preventive Maintenance Instructions This section provides the information necessary to ensure safe and effective maintenance of the 30” SHARK forestry mulching attachment. Periodic checks and lubrication requirements are described in detail. DAILY Check Hydraulic Conductors for Leaks or Damage The hydraulic hose assemblies connecting the mulching unit to the boom of the carrier are exposed to impact and abrasion as a normal course of operation.
  • Page 12 30" SHARK Owner’s Manual Grease Drum Shaft Bearings Lubricate main shaft bearings twice daily with one shots of special purpose grease suitable for operating conditions (see “Recommended Rolling Bearing Lubricant Specifications” for lubricant requirements). Idler End Bearing Grease Point 4 Shots Twice Daily...
  • Page 13 30" SHARK Owner’s Manual Grease Drive Coupling With the unit squarely on the ground, or other flat solid surface, and with the carrier in a ZERO ENERGY STATE, apply two shots of multipurpose (ie. Pin and bushing grease to the grease fitting into the side of the cutting drum toward the drive end of the unit (see illustration below).
  • Page 14 30" SHARK Owner’s Manual Inspect Cutters for Excessive Wear or Breakage As cutters wear, they become less efficient. Rotate cutters as required. To rotate, a cutter perform the following steps: 1. Remove cutter fastener and lock washer. 2. Turn 90 degrees, or as required, to expose a new cutting edge. – if no new edges remain, replace the cutter with a new one.

  • Page 15: Weekly - Every 50 Hours Of Operation

    30" SHARK Owner’s Manual WEEKLY – Every 50 Hours of Operation Inspect Tool Holders for Excessive Wear or Damage In cases of severe damage to cutters involving loss of the entire cutting head, the tool holder tool face may be exposed to impact with potential for damage to the machined surface. Any damage to the machined surface must be corrected.

  • Page 16: 30" Shark Installation

    The 30” SHARK cutting drum shaft is supported at either end by flanged cartridge roller bearing assembly. Maximum continuous rotor speed is not to exceed is 3200 rpm. Higher intermittent speeds may be permissible after consultation with RWI/Torrent technical suppoert.

  • Page 17: Mounting

    30" SHARK Owner’s Manual Mounting The 30” SHARK is designed with an 8-bolt pattern for the purpose of anchoring a quick coupler to match that of recipient excavator. The dimensions of the deck plate and the bolting pattern are supplied in the following diagram of the 30”...
  • Page 18 30" SHARK Owner’s Manual...

  • Page 19: Hydraulic Connections

    30" SHARK Owner’s Manual Hydraulic Connections Pressure Oil The circuit relief setting of the pressure oil supply should be no less than 3000 psi (207 bar) to maximum of 5000 psi (345 bar). Motor torque is directly proportional to the value of the supplied pressure and so higher supplied pressure translates into increased performance and reduced time required to bring the rotor from dead stop to full speed.
  • Page 20 30" SHARK Owner’s Manual...
  • Page 21 30" SHARK Owner’s Manual Case Drain Oil Under normal operating conditions, motor case drain circuit pressure should not exceed 10 psi (0.7 bar). Higher case drain pressure may be observed for short periods (i.e. cold start conditions) but should not be sustained. Sustained high case drain pressure will decrease the service life of the axial piston motor.
  • Page 22 Owner’s Manual Hydraulic Motor Case Over-Pressure Protection Hydraulic motor case over-pressure relief protection is standard on Torrent mulching attachments. If for any reason the case drain circuit become restricted due to a pinched case drain hose, blocked due to a disconnected coupling or failure to open an isolation valve, or exposed to excessive pressure due to improper installation, the motor shaft seal and casing are protected from damage by a low pressure relief valve connected to the motor casing.

  • Page 23: Handling And Storage

    30" SHARK Owner’s Manual Handling and Storage When not in use the mulching unit should be stored so that it is not exposed to a standing level of water, snow etc. Covers should be removed and the unit drained of any accumulated water, hoses should be capped or covered to prevent corrosion or contamination and preservation oil or penetrant applied to internal components and cutter bolts to prevent corrosion and potential seizing.

  • Page 24: Key Components

    30" SHARK Owner’s Manual Key Components Parts List Referring to the illustration (following page) Part Number Description 3002000 30" Cutting Drum Assembly 2423000 1 1/2" Tool Holder 3027000 1 1/2" Round Cutter 3028000 1 1/2" Square Cutter 3005492 Cutter Hex Bolt ½” x 1 ½” UNF Grade 8 c/w ½” High Collar Lock Washer 3005493 Drum Shaft 3004001...
  • Page 25 30" SHARK Owner’s Manual...
  • Page 26 30" SHARK Owner’s Manual...
