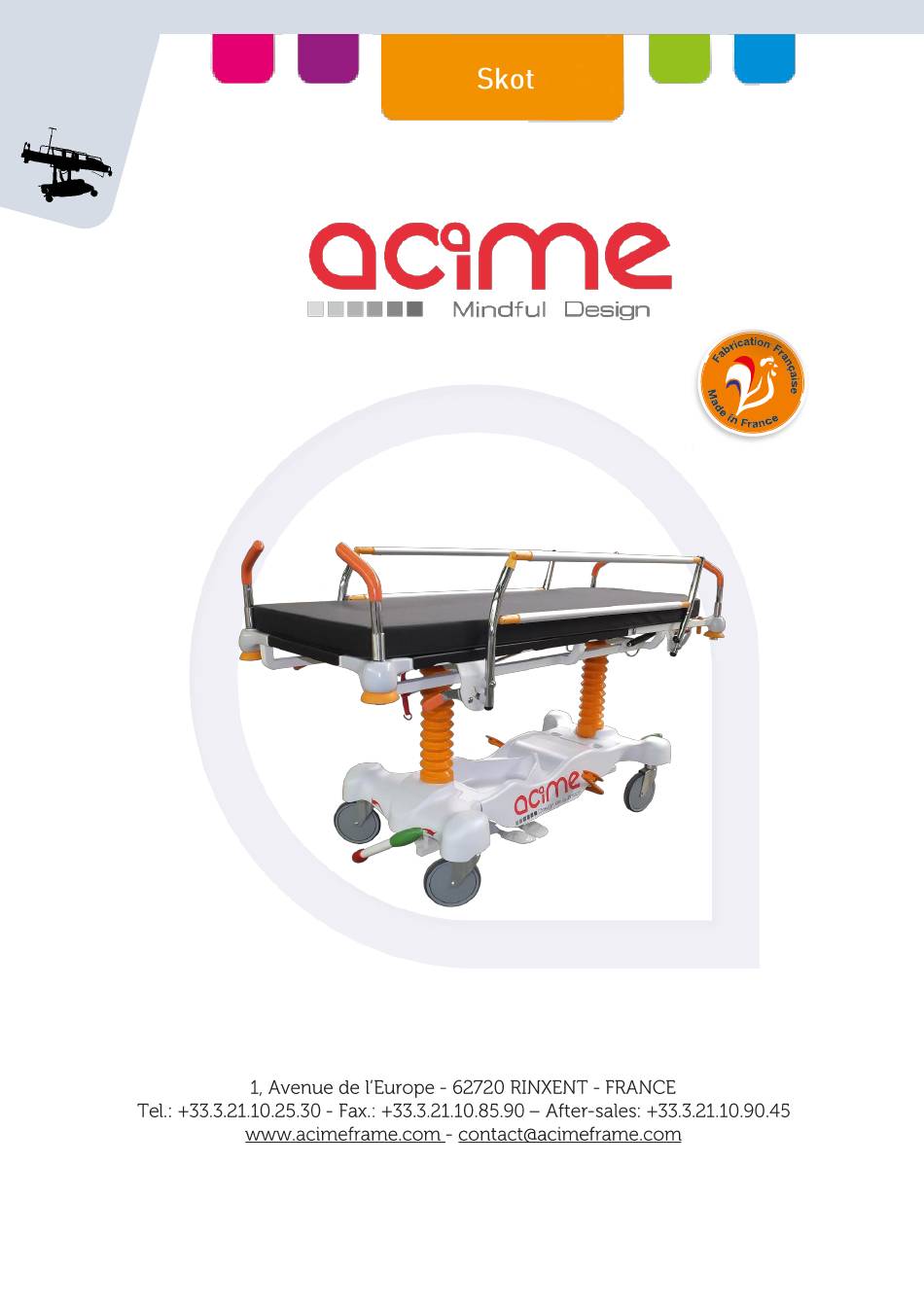

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
Procedure for cleaning and disinfecting the product ..............21 Storage instructions........................24 Recycling of equipment ......................24 Maintenance ......................25 Spare parts..........................25 After-sales service: Acime Tech ....................25 Product control .......................... 26 Warranty conditions ........................27 Maintenance log ..........................28 Notes ......................... 29... -
Page 3: General Points
Keep it preciously and keep it at the disposal of the users. Your patients will be able to benefit from all the possibilities offered by the Skot stretcher. We hope that the Skot stretcher will contribute to the quality and success of patient care. -
Page 4: Introduction For The Environment And Integration Of Staff With Disabilities
The rest of the waste is recovered either by our suppliers for treatment or by a specialised company. Since 2009, Acime Frame has implemented the charter of eco-citizen gestures in companies. Acime Frame pays particular attention to integrating staff with disabilities. -
Page 5: Before Use
The weight of the patient must be taken into account, as the chair can support a maximum load of 280 kg. The lifetime of "ACIME FRAME" products is 10 years, but this fact varies according to the use and maintenance of the product. - Page 6 Backrest on gas spring with 85° lifting angle Full Washable System “plastic cover fully removable without tools” 4 Shockproof bumpers IV pole Non-slip removable 80 mm thickness mattress Removable black ABS covers © Acime Frame – MARS 2020...
-

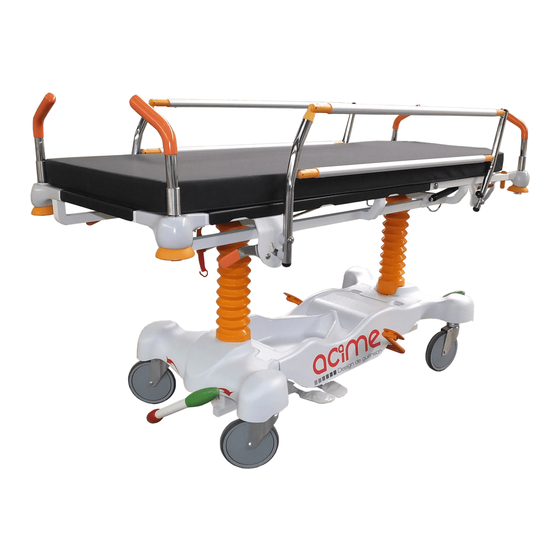

Page 7: Product Description
F – Bilateral variable height pedal G – Trendelenburg pedal (comfort/forwards position) H – Trendelenburg pedal (emergency/backwards position) I – 4 ø 200 mm wheels J – Wheel control pedal K – Barrier unlocking handle L – Push handles © Acime Frame – MARS 2020... -
Page 8: Options (Non-Exhaustive List)
Ultra comfort mattress Telescopic IV pole Retractable handles at the head and foot sides © Acime Frame – MARS 2020... - Page 9 Electronic equipment tray Transparent side protection tomato headrest O² holder on lower frame © Acime Frame – MARS 2020...
-
Page 10: Product's Signage
Maximum load capacity It is dangerous to sit on the backrest, risk of deterioration Store and use in a dry place Check the locking of the barriers Check the efficiency of the braking system © Acime Frame – MARS 2020... -
Page 11: Technical Specifications
Directional wheels wheel-coupled control Weight of the stretcher 85 Kg Maximum permissible load 280 Kg Steel and white epoxy paint Type of frame Mattress thickness 8 cm Mattress dimensions 190 cm x 62 cm © Acime Frame – MARS 2020... -
Page 12: Safety Rules Before Use
▪ Please read this manual before use and keep it within the reach of everyday users. ▪ Acime Frame declines all responsibility if the precautions for use are not respected. On request, our sales department provides users with training on the use of the product. Do not hesitate to contact us at +33 3 21 10 25 30. -
Page 13: Use
▪ Inappropriate use of the stretcher and failure to follow the maintenance and safety instructions can endanger the patient, significantly reduce its longevity and relieve the Acime Frame company of all responsibility. ▪ The maximum permitted load is 280 Kg. Any higher load can cause accidents or damage to the stretcher. - Page 14 ▪ Shocks or falls suffered to a greater or lesser extent. ▪ Sitting on the barriers. ▪ Pushing by the IV pole. ▪ Misuse of barriers: o Pushing by the barriers. o Forced restraint of patients by the barriers. Maintenance faults. © Acime Frame – MARS 2020...
-
Page 15: Moving And Braking
The 5th wheel helps you to drive in a straight line and to turn in without drifting. It significantly reduces the turning radius © Acime Frame – MARS 2020... -
Page 16: Hydraulic Variable Height Adjustment
Descent 1- Put the stretcher in the brake position. 2 - Press both pedals with your foot at the same time to lower the stretcher. © Acime Frame – MARS 2020... -
Page 17: Use Of The Trendelenburg, Hydraulic Version
1- Put the stretcher in the brake position. 2- Press the pedal with your foot and the stretcher will descend only on the head side. Do not leave the patient unattended when using the Trendelenburg System. © Acime Frame – MARS 2020... -
Page 18: Use Of The Barriers
Raise one or both barriers freely by simply pulling on one of the uprights. Locking is automatic. Check that the barrier is locked. This barriers has been designed to be "anti-pinch", however, it is advisable to take the necessary precautions (check for foreign objects between the bars). © Acime Frame – MARS 2020... -
Page 19: Use Of The Backrest
The backrest will remain in its position only after releasing the release handle. IMPORTANT If you are caring for a heavy person, in order to avoid a too abrupt lying, hold the bust support firmly when you act on this control. © Acime Frame – MARS 2020... -
Page 20: Removal Of The Cover
1- Raise the middle part 2- Pull out the side covers 3- The cover is completely dismantled For reassembly, repeat the same steps in reverse order. © Acime Frame – MARS 2020... -
Page 21: After Use
• All solvents and detergents or abrasive cleaning products • Pure alcohol and/or acetone (see § Inks, persistent stains page 23) They denature coatings and can make them brittle. Acime Frame cannot be held responsible for the use of these products. © Acime Frame – MARS 2020... - Page 22 Once a week: Once a week, it is advisable to clean the equipment thoroughly. When a stain appears, we advise you to intervene as soon as possible to prevent it from becoming indelible. © Acime Frame – MARS 2020...
- Page 23 (especially if it is clear and plain). In case of tough stains, use bleach or alcohol diluted at 10% which will allow the reduction of the ring. Rinse with clean water. © Acime Frame – MARS 2020...
-
Page 24: Storage Instructions
It will be taken back either by our carrier or by us. After taking back products at the end of their life, Acime Frame can carry out two types of recycling depending on the condition of the products taken back. -
Page 25: Maintenance
Date when leaving the factory Product reference Factory and after-sales service contact details Acime Frame has a team of qualified technicians, dedicated to the realisation of the after-sales service. Our local technical team is at your disposal for: • Carry out troubleshooting •... -
Page 26: Product Control
We offer you to carry out the maintenance of your chairs. Several maintenance contracts are available, please do not hesitate to read about them in the dedicated section of this manual or by contacting us. Tel: +33.3.21.10.25.30 © Acime Frame – MARS 2020... -
Page 27: Warranty Conditions
In any case our customers must justify the date of the beginning of use. Our guarantee automatically ceases at the end of this period. Our warranty ceases automatically if our client has not notified us of the alleged defect within twenty clear days from its discovery. © Acime Frame – MARS 2020... -
Page 28: Maintenance Log
Date Technician Type of intervention © Acime Frame – MARS 2020... -
Page 29: Notes
Notes © Acime Frame – MARS 2020... - Page 30 1, Avenue de l’Europe - 62720 RINXENT - FRANCE Tel: +33.3.21.10.25.30 - Fax.: +33.3.21.10.85.90 – After-sales: +33.3.21.10.90.45 www.acimeframe.com - contact@acimeframe.com © Acime Frame – MARS 2020...
