BT DieselWorks AutoSync G2 – Installation guide

THESE INSTRUCTIONS ARE ONLY FOR THE NEW AutoSync "G2"

Requires IO4/IO5/IO6 radios (check glovebox RPO sticker)

Does not work on IO3, IOB, IOR, IOT (or any of the T1xx new body style pickups)

2014-2018 Silverado/Sierra 1500 pickup

2015-2019 Silverado/Sierra 2500-3500 pickup

2015-2020 Tahoe/Yukon/Suburban/Escalade SUV

2015-2018 Colorado/Canyon pickup

And many other 2014ish-2019ish GM cars with IO4/IO5/IO6 radio

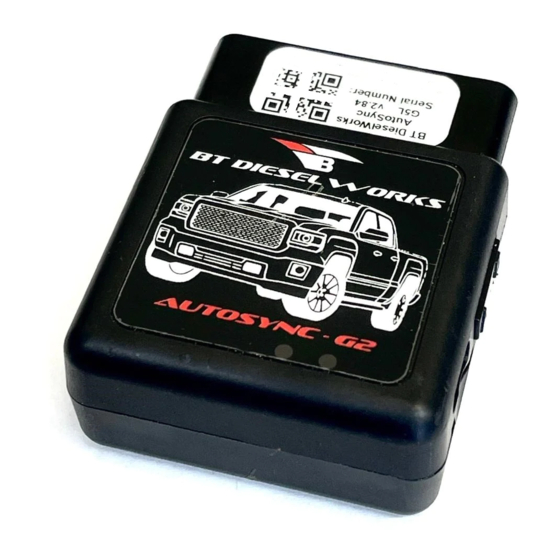

Thank you for purchasing the BT DieselWorks AutoSync. The AutoSync is a patent-pending revolutionary

new easy-to-install module that adds many enhanced functional and comfort features to many GM late

model vehicles. Please be sure to also follow the quick-start guide on the 'AutoSync installation guides'

page on our website. It is VERY important to register your AutoSync and pair it to your WiFi as soon as

possible to validate warranty and receive the latest firmware updates and new feature additions.

I know these instructions are long/boring, but PLEASE try to at least glance over every page

first. 95% of tech support email/questions we get are simply due to misunderstanding/not

reading the instructions. 

NOTE: 2017+ vehicles have several feature limitations and also require one additional minor wiring

change under the dash at the Serial Data Gateway module connector. Please see the additional 2017+

supplement document instructions on our website on how to perform this wiring change/pin swap.

NOTE: We now offer a plug-and-play SDGM bypass harness to make the installation extremely easy on

2017+ vehicles. This harness installs in less than 2 minutes and negates the need to do the old

wiring/pin swap. The wiring/pin swap can be tricky, and the pins are quite fragile...the SDGM harness

is less than $10 and will potentially save huge headaches:

https://www.btdieselworks.com/collections/autosync/products/2017-sdgm-bypass-harness
