Summary of Contents for ESD electronic CPCI-HD

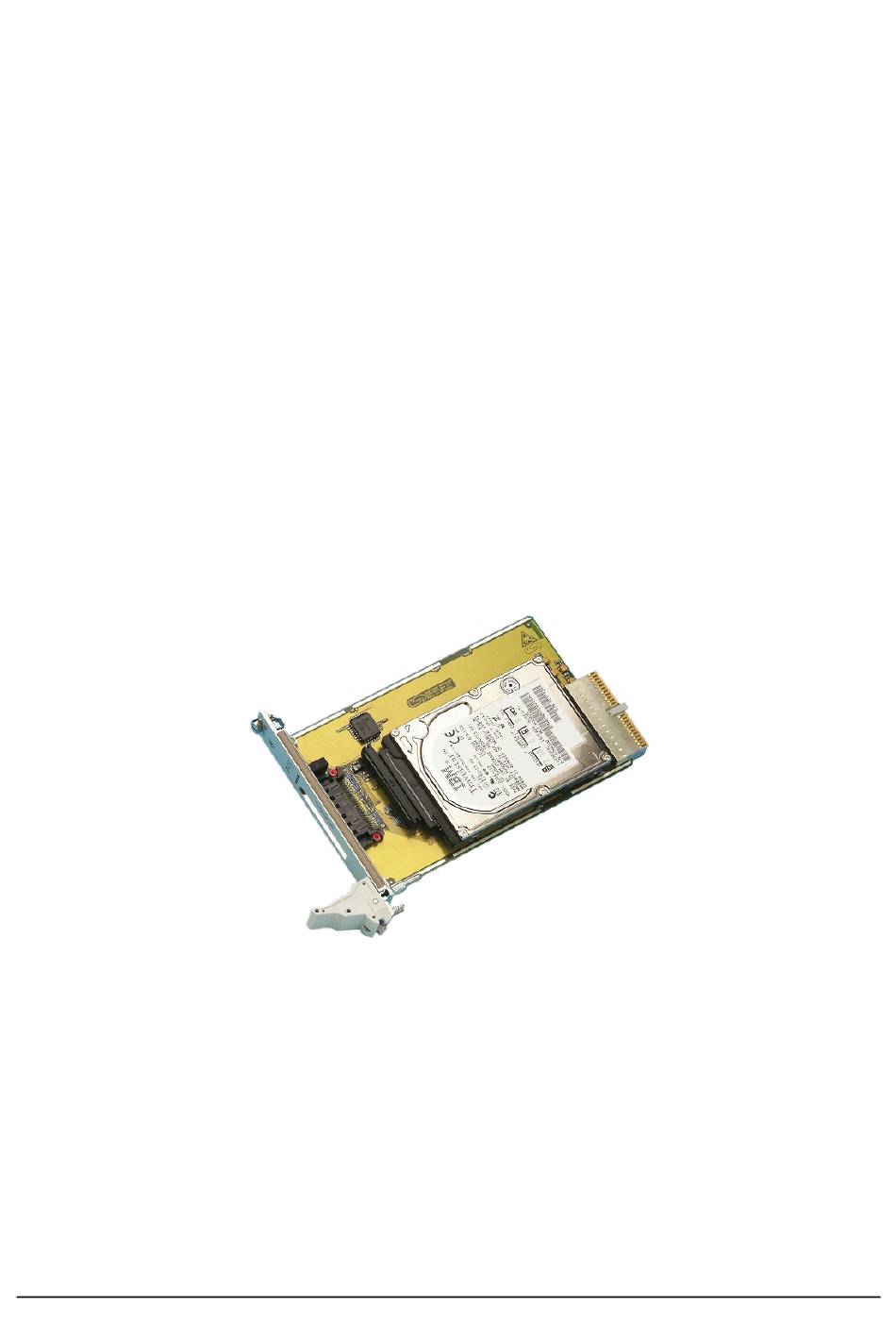

- Page 1 CPCI-HD On-Board HD-Drive and CompactFlash Slot Hardware Manual CPCI-HD Hardware Manual Rev. 1.0...
- Page 2 The changes in the user’s manual listed below affect changes in the hardware, as well as changes in the description of the facts only. Chapter Changes versus previous version First version Further technical changes are subject to change without notice. CPCI-HD Hardware Manual Rev. 1.0...
- Page 3 Vahrenwalder Str. 207 30165 Hannover Germany Phone: +49-511-372 98-0 Fax: +49-511-372 98-68 E-mail: info@esd-electronics.com Internet: www.esd-electronics.com USA / Canada PMB 292 20423 State Road 7 #F6 Boca Raton, Florida 33498-6797 Phone: +1-800-732-8006 Fax: +1-800-732-8093 E-mail: sales@esd-electronics.com CPCI-HD Hardware Manual Rev. 1.0...
-
Page 4: Table Of Contents
1.1 Description of CPCI-HD Module ........ - Page 5 This page is intentionally left blank. CPCI-HD Hardware Manual Rev. 1.0...
-
Page 6: Overview
Hard Disk Drive Fig. 1.1: Block-circuit diagram of the CPCI-HD module The CPCI-HD is a CompactPCI board in Euro format and offers an on-board hard disk drive and a CompactFlash card interface. The CPCI-HD module is equipped with a HPT370A IDE-drive controller which supports two IDE- channels. -
Page 7: Summary Of Technical Data
HD-drive connector, 2 mm pitch (50-pin CompactFlash board connector, AMP-C- Connectors FLASH ) - CompactFlash card slot X100 (132-pin post connector) - CompactPCI-board connector Dimensions 100 mm x 160 mm Weight 250 g Table 1.1: General technical data CPCI-HD Hardware Manual Rev. 1.0... -
Page 8: Compactpci Bus
Table 1.3: HD-drive 1.2.4 CompactFlash Interface Number 1 CompactFlash slot Data transfer mode PIO 0 IDE-controller HPT370A according to CompactFlash specification, Type I CompactFlash- CompactFlash card slot, ‘True IDE’-mode, 3.3 V supply voltage Table 1.4: CompactFlash interface CPCI-HD Hardware Manual Rev. 1.0... -
Page 9: Software Support
Overview 1.2.5 Software Support The CPCI-HD module works with the standard-system drivers of VxWorks, Linux, QNX or Windows NT/2000. 1.2.6 Order Information Type Properties Order No. CPCI-HD 10 GB Hard Disk Drive, I.2310.02 CompactFlash Interface CPCI-CF as CPCI-HD, but without HD-drive I.2310.10... -
Page 10: Hardware Installation
Switch off your computer and all connected peripheral devices (monitor, printers, etc.). Discharge yourself as described above. Disconnect the computer from mains. Insert the CPCI-HD module into a free CompactPCI slot. Attach the module by means of the front panel screws. Connect the computer to mains again. - Page 11 This page is intentionally left blank. CPCI-HD Hardware Manual Rev. 1.0...
-
Page 12: Front Panel View With Led-Display
LEDD30B green Access to CompactFlash card LEDD30C green 3.3 V The 3.3 V supply voltage is active LEDD30D green 5.0 V The 5 V supply voltage is active Table 3.1: Display functions of the LEDs CPCI-HD Hardware Manual Rev. 1.0... - Page 13 This page is intentionally left blank. CPCI-HD Hardware Manual Rev. 1.0...
-
Page 14: Circuit Diagrams
Circuit Diagrams 4. Circuit Diagrams The PDF-file of this document does not contain the circuit diagrams. The circuit diagrams are shipped on request. CPCI-HD Hardware Manual Rev. 1.0... - Page 15 Information about Usage of CompactFlash ® Cards! A correct functionality of the CompactFlash interface can only be ensured by usage of CompactFlash cards with guaranteed SSD-properties. esd therefore recommends to use one of the listed SLC-cards: - Western Digital SiliconDrive II (e.g. 4GB: SSDC04G-4600) - Cactus CompactFlash 303 Series (e.g.
