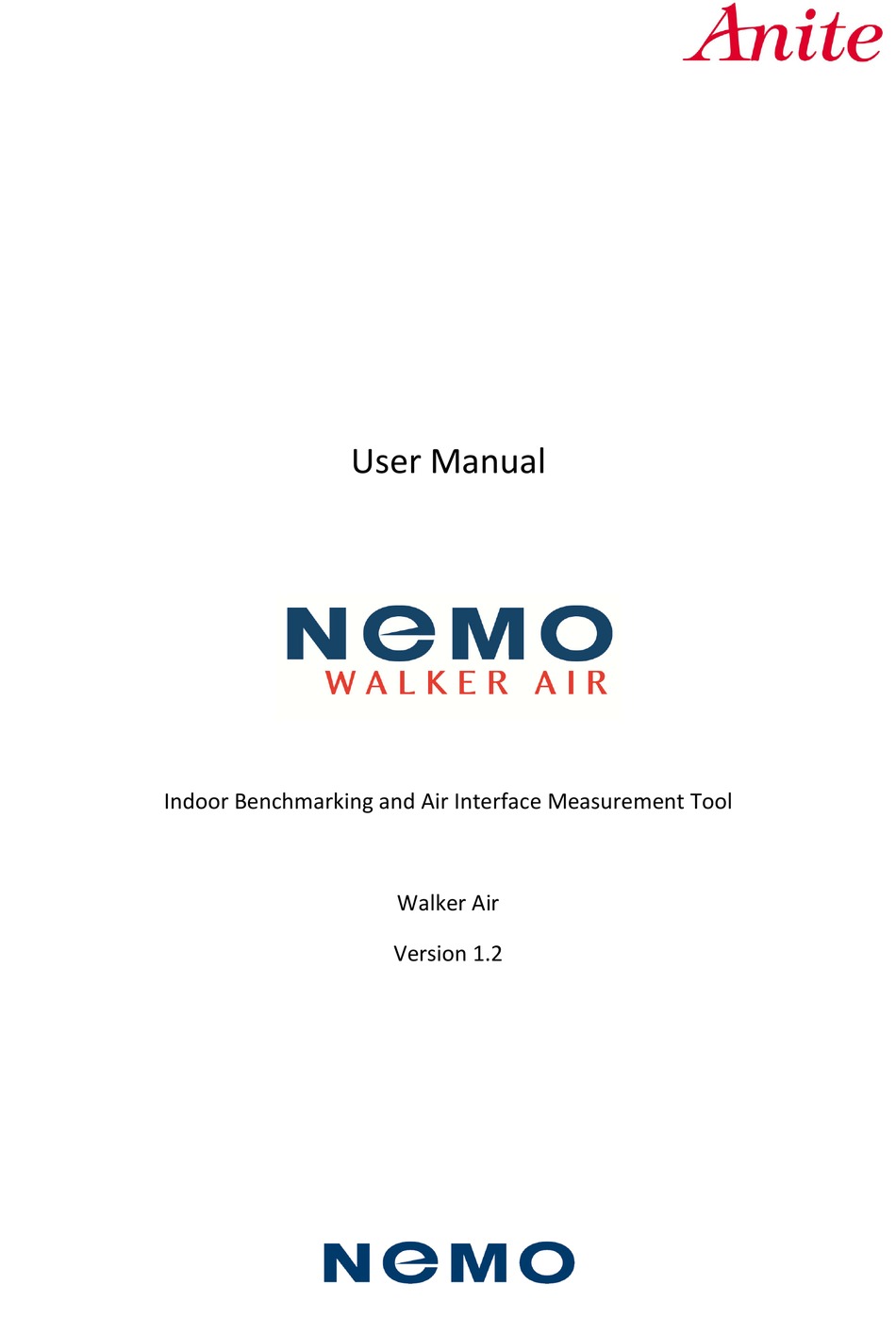

- Page 1 User Manual Indoor Benchmarking and Air Interface Measurement Tool Walker Air Version 1.2 ...
- Page 2 The information in this manual is intended for informational use only and is subject to change without notice. Anite Finland Ltd assumes no responsibility or liability for any errors or inaccuracies that may appear in this user manual.
-
Page 3: Table Of Contents
Local Laws and Regulations 11 NEMO WALKER AIR SYSTEM OVERVIEW12 NEMO WALKER AIR SETUP INSTALLING NEMO WALKER AIR USING SD CARD 12 INSTALLING NEMO WALKER AIR FROM NEMO USER CLUB 13 INSTALLING NEMO WALKER AIR LICENSE 13 BLUETOOTH PAIRING 14 ... - Page 4 4 N em o WA LKER A IR User M anu a l Scripted Iperf TCP/UDP 34 Scripted YouTube Testing 35 Scripted Facebook Testing 36 Nested Script 37 VOICE QUALITY TESTING 37 POLQA NB/SWB Mode Selection 39 Voice Quality Testing in Uplink+Downlink Mode 39 ...
- Page 5 C O N TE N TS 5 Number Format 66 STATUS VIEW 67 SCRIPT VIEW 68 GPS 69 NOTIFICATION HISTORY 70 INDOOR MAP 71 OUTDOOR MAP 72 WEB VIEW 73 BTS VIEW 73 YOUTUBE VIEW 74 YOUTUBE PARAMETERS 75 ...
- Page 6 6 N em o WA LKER A IR User M anu a l WCDMA Cell Table 92 WCDMA Inter-System Cells 92 WCDMA MIMO 93 WCDMA/WCMA Power Control View 94 Throughput View for WCDMA 94 PPP Throughput for WCDMA 95 Iperf for WCDMA ...
- Page 7 C O N TE N TS 7 Notifications 118 LOGGING SETTINGS 122 Defining Measurement Upload Configurations 123 GPS SETTINGS 126 INDOOR MAP SETTINGS 127 OUTDOOR MAP SETTINGS 128 BTS SETTINGS 129 UI CUSTOMIZATION SETTINGS 130 Serving Info Parameters 130 ...
- Page 8 8 N em o WA LKER A IR User M anu a l NEMO WALKER AIR BACKPACK TIPS AND HINTS FILE LOCATIONS 155 USING THE GPS RECEIVER 155 TECHNICAL SUPPORT USER CLUB 156 NEMO SUPPORT PORTAL ...
-
Page 9: Quick Guide
1. Before beginning the measurements, Bluetooth pairing is required for each device. For pairing the devices, see Bluetooth pairing. 2. Select the Nemo Walker Air button from the Apps view by tapping Apps on your Nemo Walker Air device. 3. If you want to use scripts, tap the Script button ( ) on the toolbar. -
Page 10: Before You Begin
This manual explains how to set up and operate the Nemo Walker Air measurement tool software developed by Anite Finland Ltd. Nemo Walker Air is a portable engineering tool for measuring and monitoring the air interface of digital networks. The supported network standards are: GSM, WCDMA, HSPA, LTE, CDMA, EVDO, WIFI (HETNET) Nemo Walker Air is an effective tool for tracing mobile networks. -
Page 11: Important
Traffic Safety Do not operate Nemo Walker Air (or any test device) and drive at the same time. Remember, traffic safety comes first. Note that in some countries it is illegal to drive a car and operate a device at the same time. -
Page 12: Nemo Walker Air System Overview12
1. Uninstall the old Walker Air version by going to Apps/Settings/More/Application Manager and tapping Uninstall. 2. Connect the USB cable to the Nemo Walker Air device and to the computer where you have the Nemo Walker Air installation files. 3. Select Disk drive/Media device (MTP) as the connection type. -
Page 13: Installing Nemo Walker Air From Nemo User Club
Uninstall on your Nemo Walker Air. 2. Start a browser on your Nemo Walker Air device and log in to the Nemo User Club. You must have a valid Technical Support Agreement and valid access codes (username and password). -
Page 14: Bluetooth Pairing
14 N em o WA LKER A IR User M anu a l 1. In Nemo Walker Air, go to Menu | About and tap Browse licenses. The License Browser view opens. 2. Tap Refresh to refresh the list of available licenses for Nemo Walker Air. - Page 15 Note that it is advisable to name devices so that it is easy to distinguish them from each other. Start running Nemo Walker Air by selecting the program from Applications. When Walker Air is started, home view with shortcuts is displayed. The home view can be customized by the user to include the most used pages and shortcuts to them.
- Page 16 16 N em o WA LKER A IR User M anu a l Master control page can be found by selecting it via the view bar on the top of the screen or by browsing through the pages. Slave units can be placed on the screen by tapping and holding on each slot on the screen. All Slave units also have their own pages showing more detailed configurations.
-
Page 17: Slave Options
SE TUP 17 Note that Master and Slaves must use the same version of Nemo Walker Air. Upgrading all devices manually at the same time is recommended. You can now start using Nemo Walker Air. SLAVE OPTIONS To access Slave options go to Master control page. - Page 18 18 N em o WA LKER A IR User M anu a l Load Script enables you to load a script on a Slave. Read more about loading scripts under Scripted Application Testing. Set device label allows you to name the Slave. Set device color allows choosing an individual color for each slave.
-
Page 19: Connecting An External Gps
CONNECTING AN EXTERNAL GPS Nemo Walker Air uses an internal GPS receiver by default. If you want to use an external GPS, you have to pair a Bluetooth GPS with the phone. Turn the Bluetooth GPS on. If you have several devices, switch on only one GPS at a time to avoid an incorrectly paired system. -
Page 20: During Measurements
20 N em o WA LKER A IR User M anu a l DURING MEASUREMENTS You can browse the various views by swiping the touchpad with your finger or by tapping the page header and selecting from the list of displays in the popup shortcut menu. If a page has several views, you can move between the views by dragging your finger vertically across the screen.
