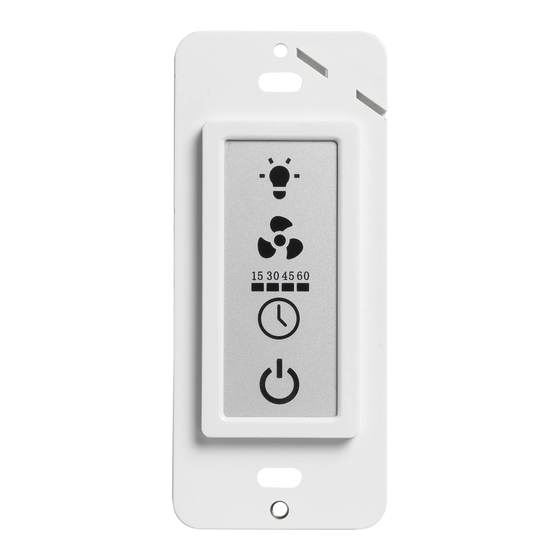

BATH FAN CONTROL SWITCH WITH TIMER
WALL-MOUNTED LCD TOUCH PANEL

READ AND SAVE THESE INSTRUCTIONS

PRODUCT SPECIFICATIONS

Voltage: AC120V/60Hz
Electrical Appliance Type: Electric lamp and motor type fan for home use

Packaging and Hardware Contents

Switch, plastic wire connectors, screws, and instruction manual.
15 30 45 60
CAUTION
• For indoor use only.
• Installation Location: Wall.
• This product can be used in the bathroom with a GFCI protection circuit.
• The operating control must be grounded.
• Storage Temperature: -4ºF - 140ºF (-20º C - 60º C).
• Output 2 cannot be connected to the motor.

PREPARATION

Tools required for assembly: Phillips screwdriver and wire stripper.
INSTALLATION & OPERATING INSTRUCTIONS
1. Connect the switch according to the wiring diagram.
2. Press the ON/OFF icon on the switch. Once the ON/OFF indicator light icon turns on, the switch has received the electrical connection.
3. Press the desired function icon. Once the indicator light of the corresponding function turns on, the function will start.
For example, when you press the fan control icon, the fan control indicator light will turn on and the fan will begin operating.
4. Press a function icon again. Once the indicator light of the corresponding function turns off, the function stops. For example, when you press the fan icon a second time,
the fan control indicator light will turn off and the fan will stop operating.
5. When the light is on, long press the light icon to dim the light.
6. To turn on the bath fan timer, press the timer icon and select a time.
Questions, problems, missing parts? Before returning to the store, call our customer service department at 1-866-994-4148, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You could also contact us at partsplus@lowes.com.
AS22040
Max Power of connecting electrical appliance: AC120V/1A
Prevailing Ambient Temperature: 32ºF - 104ºF (0º C - 40º C)

Wiring Diagram

Output 2
Light/Brown Wire
Ground/Green Wire
Power/Black Wire
AC120V
Neutral/White Wire
IMPORTANT! READ BEFORE INSTALLATION:
1. All electrical wiring must comply with the National Electrical Code ANSI / NFPA
70-1999 and local electrical codes. Electrical installation should be performed
controller.
3. The wrong wiring connection will damage the operating control.
ITEM # 4984546
MODEL 7150-12-L
15 30 45 60
E505940
Output 1
Fan/Red Wire
15 30 45 60
Black Wire
White Wire
Green Wire
Red Wire
...............................
Brown Wire
Printed in China
01-2022
