Summary of Contents for Nova Technology International, LLC Defender Gate 10

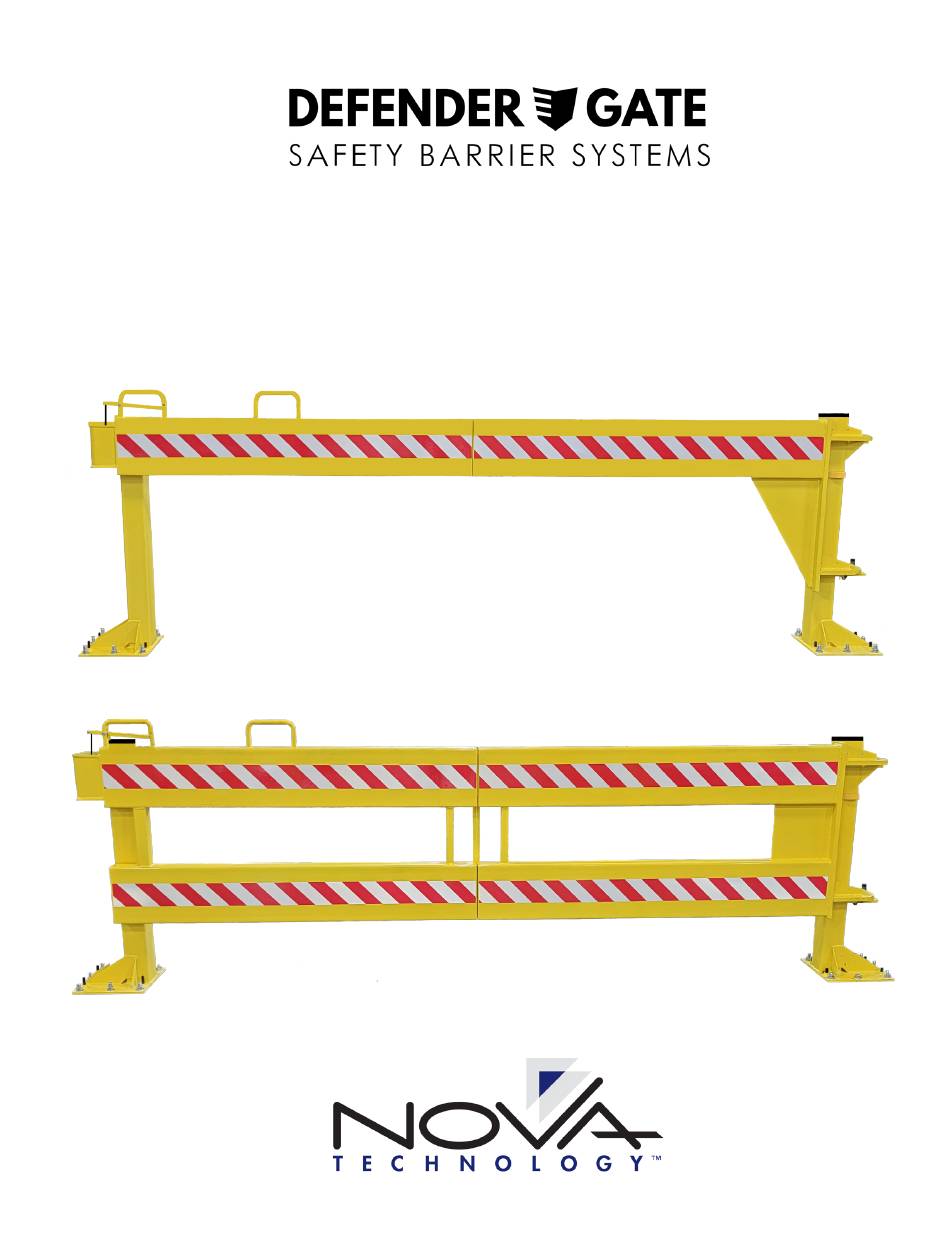

- Page 1 Defender Gate™ 10 & 20 Installation Manual © 2022 Nova Technology International, LLC Manual No. NDG-3041 - Rev. June 2022...
- Page 2 NOVA Defender Gate™ 10 & 20 Installation Manual CENTERLINE OF OPENING Defender Gate™ Sizing Chart DEFENDER GATE™ SIZE INSIDE BASE TO INSIDE BASE 1/2 FROM BASE TO BASE 72 INCHES 72-1/4 INCHES 36-1/8 INCHES 78 INCHES 78-1/4 INCHES 39-1/8 INCHES 84 INCHES 84-1/4 INCHES 42-1/8 INCHES...
- Page 3 NOVA Defender Gate™ 10 & 20 Installation Manual The Defender Gate™ 10 or 20 arrives in three pieces, all of which are securely wrapped and attached to a pallet. All hardware is included. SHIPMENT CONTAINS: • Bag of Hardware (1) •...
- Page 4 NOVA Defender Gate™ 10 & 20 Installation Manual INSTALLATION: PART ONE Installing the Bollards. TOOLS NEEDED: • Hammer Drill • Level • Tape Measure • 3/4” Wrench or Socket Wrench • Hammer • Allen Wrench HINGE BOLLARD. Begin with 1. Measure the size of the door opening (A). 2.
- Page 5 NOVA Defender Gate™ 10 & 20 Installation Manual Centerline 4 inches from of Door wall or rails Manual No. NDG-3041 - Rev. June 2022...
- Page 6 NOVA Defender Gate™ 10 & 20 Installation Manual INSTALLATION: PART TWO Installing the Gate. TOOLS NEEDED: • Hammer Drill • Level • 3/4” Wrench or Socket Wrench Although it is possible for one person to install the gate, we recommend using a forklift or an additional helper while lifting or carrying the gate.
- Page 7 NOVA Defender Gate™ 10 & 20 Installation Manual Manual No. NDG-3041 - Rev. June 2022...
- Page 8 W141N9420 Fountain Blvd Menomonee Falls, WI 53051 Phone 262-502-1591 | 800-236-7325 | fax 262-502-1511 www.novalocks.com...
