G-project G-70W User Manual

Bluetooth speaker with weather radio
Hide thumbs

Advertisement

Table of Contents

User Guide
Bluetooth Speaker with Weather Radio
G-70W
PACKAGE CONTENTS
• G-70W Bluetooth Speaker with Weather Radio
• Type-C USB Charging Cable
• User Guide
LOCATION OF CONTROLS
1. WEATHER Button
2. BLUETOOTH PAIR Button
3. FM Button
4. LCD Display
5. Red ALERT LED
6. Flashlight
7. Carabiner Clip
8. FLASHLIGHT Button
9. POWER ON/STAND BY Button
10. ALERT Button
11. PRESET Button
12. TUNE DOWN Button
13. AM Button
14. PLAY/PAUSE Button
15. TUNE UP Button
16. VOLUME – Button
17. VOLUNE + Button

Advertisement

Table of Contents
loading

Related Manuals for G-project G-70W

Summary of Contents for G-project G-70W

  • Page 1 User Guide Bluetooth Speaker with Weather Radio G-70W PACKAGE CONTENTS • G-70W Bluetooth Speaker with Weather Radio • Type-C USB Charging Cable • User Guide LOCATION OF CONTROLS 1. WEATHER Button 2. BLUETOOTH PAIR Button 3. FM Button 4. LCD Display 5.
  • Page 2 18. Telescopic Antenna 19. Battery Door Lock 20. Battery Door 21. USB Port 22. Type-C USB Jack 23. RESET Button...

  • Page 3: Power Source

    The G-70W is designed to operate using the built-in rechargeable battery or using 3 x AA batteries (not included). To recharge the built-in battery: Connect G-70W with a USB charging adapter or any other USB charging device through the supplied Type-C USB charging cable.
  • Page 4 When the battery is fully charged, the battery level bars will change to be full To operate using batteries: 1. Unlock the battery door on the back of G-70W by rotating anticlockwise the lock Insert three (3) “AA” batteries following the correct polarity indicated in the battery compartment.

  • Page 5: Volume Control

    VOLUME CONTROL Press the VOLUME + or VOLUME – buttons to increase or decrease the volume. PLAYING THE RADIO 1. Press and hold the POWER ON/STAND BY button to turn on the unit, the LCD backlight turns on. 2. Press AM or FM button to select AM or FM band, the radio mode indicator displays. 3.

  • Page 6: Bluetooth Operation

    BLUETOOTH OPERATION You can stream audio wirelessly to G-70W from up to 33’ away using your iPhone, iPad, iPod, Android, laptop, or other A2DP Bluetooth enabled device. 1. Press and hold the POWER ON/STAND BY button to turn on G-70W.
  • Page 7 “ALERT” icon appears on the LCD display. Receiving weather alert: 1. When an alert is received, the G-70W will sound an audible siren, and the LCD display, red ALERT LED and the flashlight will all flash. The G-70W will then switch...

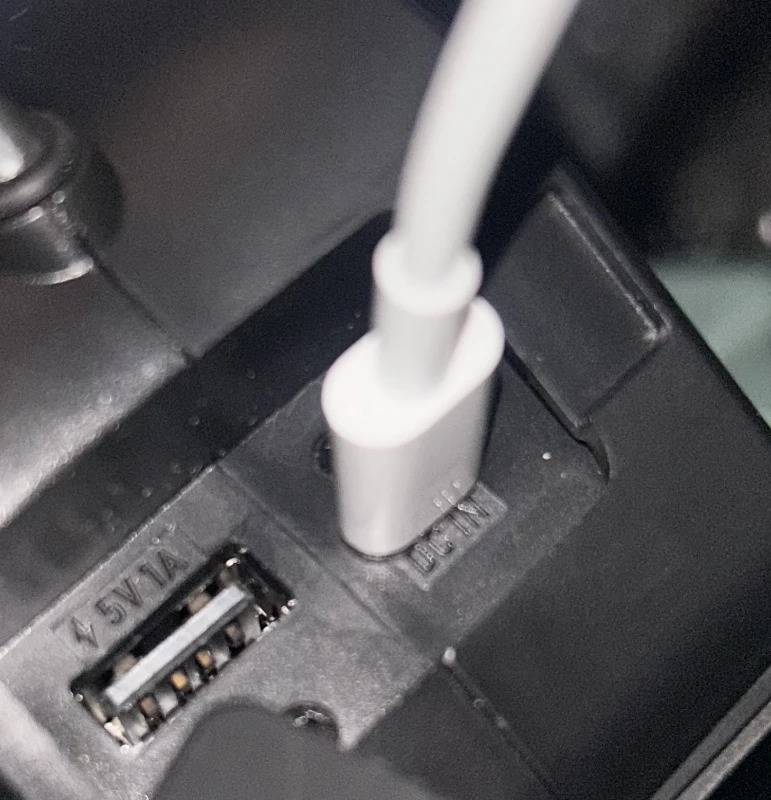

  • Page 8: Usb Charging Port

    • In standby mode, pressing the ALERT button can activate or disable the Weather alerts function. • The G-70W can receive weather alert when it is in standby mode, tuned to a local weather station and the alert is activated.

  • Page 9: Specifications

    SPECIFICATIONS Power Source……………………………………3.7V, 2500mAh, Rechargeable Li-ion Power Source ………………………………………………3 x 1.5V “AA” size batteries USB Jack DC Power Output ………………………………………………………5V 1A Output Power..................1 x 3W 10% THD Battery Recharging Time………………………………………………… around 3 hours Battery Playback Time..Up to 12 hours (varies by volume level and audio content) Water Resistance Level ……………………………………………………………..IPX4 BLUETOOTH: Bluetooth specification ………………………………………………………………v5.1...
  • Page 10 ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 11: Important Safety Instructions

    WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

  • Page 12: Additional Safety Precautions

    Dispose of batteries properly according to environmental regulations. G-PROJECT is a registered trademark of Goodhatch, LLC. G-70W is distributed by Life Lab International LLC 3471 North Union Drive, Olney, IL 62450 (855) 896-1795 The Bluetooth ®...
