ProDAQ 3202 Installation Instructions

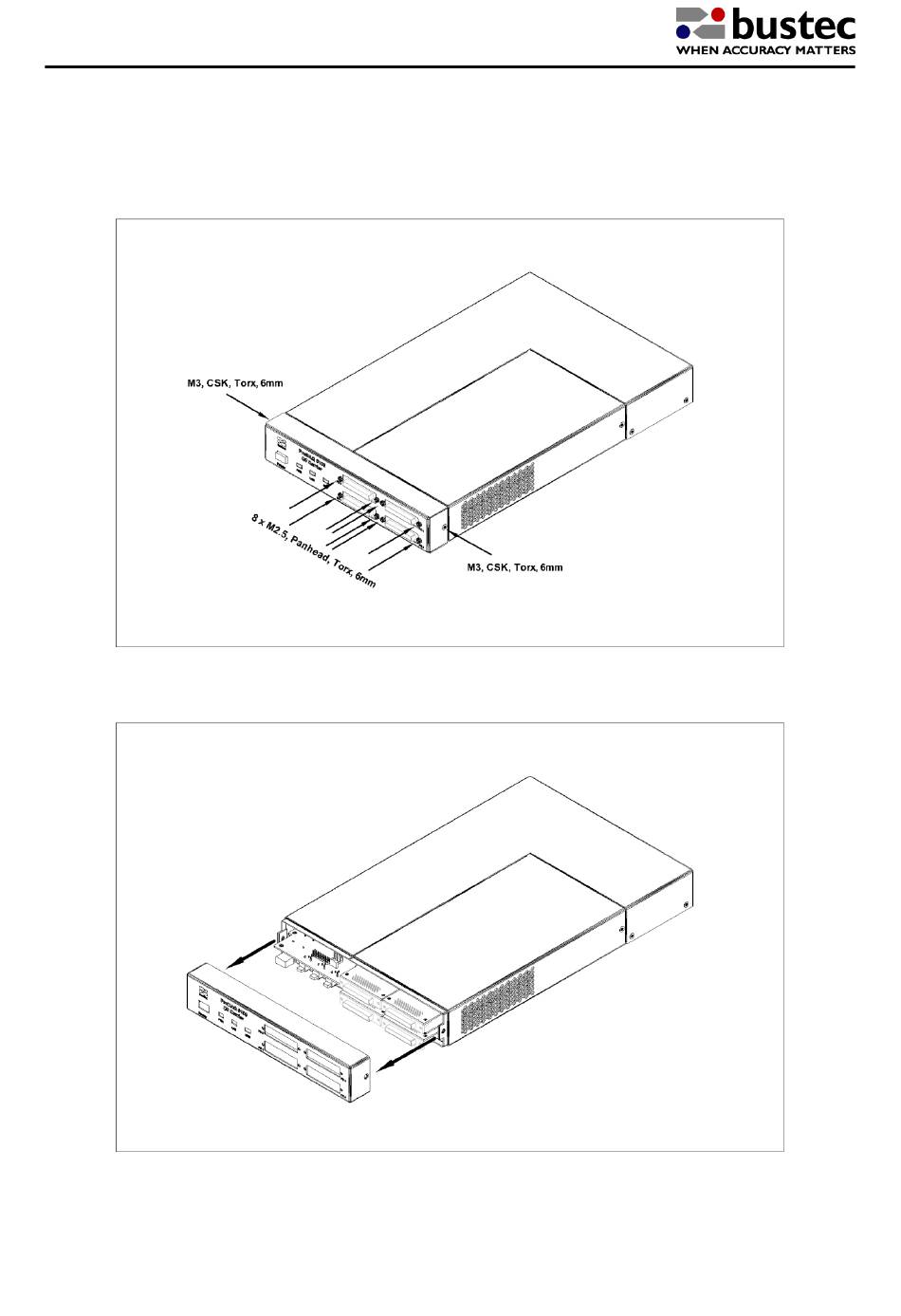

1. Remove the up to eight M2.5x6mm panhead screws attaching the front bezel to the function cards (If there is
no function card installed in a slot and a blanking panel is used to cover the front bezel opening, do not
remove it screws before detaching the front bezel). Then remove the two M3x6mm countersunk screws
attaching the front bezel to the enclosure.
2. Carefully slide off the front bezel in the direction shown:
Rev. 1.0
Page 1 of 12
Advertisement
Related Manuals for Bustec ProDAQ 3202
Summary of Contents for Bustec ProDAQ 3202
- Page 1 ProDAQ 3202 Installation Instructions 1. Remove the up to eight M2.5x6mm panhead screws attaching the front bezel to the function cards (If there is no function card installed in a slot and a blanking panel is used to cover the front bezel opening, do not remove it screws before detaching the front bezel).
- Page 2 ProDAQ 3202 Installation Instructions 3. Remove the M3x6mm countersunk screw attaching the function card cover to the enclosure top: 4. Slide off the function card cover in the direction shown: Rev. 1.0 Page 2 of 12...
- Page 3 ProDAQ 3202 Installation Instructions 5. Remove the two M3x6mm countersunk screws on each side holding the enclosure top in place: 6. Lift off the enclosure top: Rev. 1.0 Page 3 of 12...
- Page 4 ProDAQ 3202 Installation Instructions 7. Remove the seven M3x6mm panhead screws and M3 washers holding the PCB assembly in place: 8. Now turn the whole chassis plus assembly over and slide the PCB assembly forward by about 30mm (1 1/5 inches).
- Page 5 ProDAQ 3202 Installation Instructions 9. Plug the ProDAQ 3202 Voltage Reference into its position on the PCB: 10. Attach it using two M2.5x6mm panhead screws and two M2.5 washers (delivered with the ProDAQ 3202): Rev. 1.0 Page 5 of 12...
- Page 6 ProDAQ 3202 Installation Instructions 11. The assembled plug-in looks like this: 12. Turn the unit back over and slide the PCB assembly back into place. Avoid again scratching any tracks or damaging any parts while doing so. Rev. 1.0 Page 6 of 12...
- Page 7 ProDAQ 3202 Installation Instructions 13. Position the PCB assembly so that the connectors on the rear line up with their cut-outs and that the mounting holes of the PCB line up with the threaded holes underneath, then attach the PCB assembly to the bottom enclosure using the seven M3x6mm panhead screws and M3 washers removed in step 7: 14.
- Page 8 ProDAQ 3202 Installation Instructions 15. And attach it using the four M3x6mm countersunk screw removed in step 5: 16. Slide the function card cover back into place: Make sure that the lips are positioned correctly underneath its counterpart. Check also the alignment on the bottom.
- Page 9 ProDAQ 3202 Installation Instructions 17. Attach the function card cover to the enclosure top using the M3x6mm csk screw removed in step 3: 18. Slide the front bezel back into place: Rev. 1.0 Page 9 of 12...
- Page 10 ProDAQ 3202 Installation Instructions 19. Attach the front bezel to the enclosure top and function card cover using the two M3x6mm countersunk screws removed in step 1. Be careful to align the cut-outs for the power switch and LEDs correctly first: Then attach the function cards again to the front bezel using the eight M2.5x6mm panhead screws removed...
- Page 11 ProDAQ 6100 and navigating to “Function Cards & Options” / “Options”. With an installed and recognized ProDAQ 3202 it will show the model and serial number of the ProDAQ 3202 like this: Rev.
- Page 12 ProDAQ 3202 Installation Instructions Rev. 1.0 Page 12 of 12...
