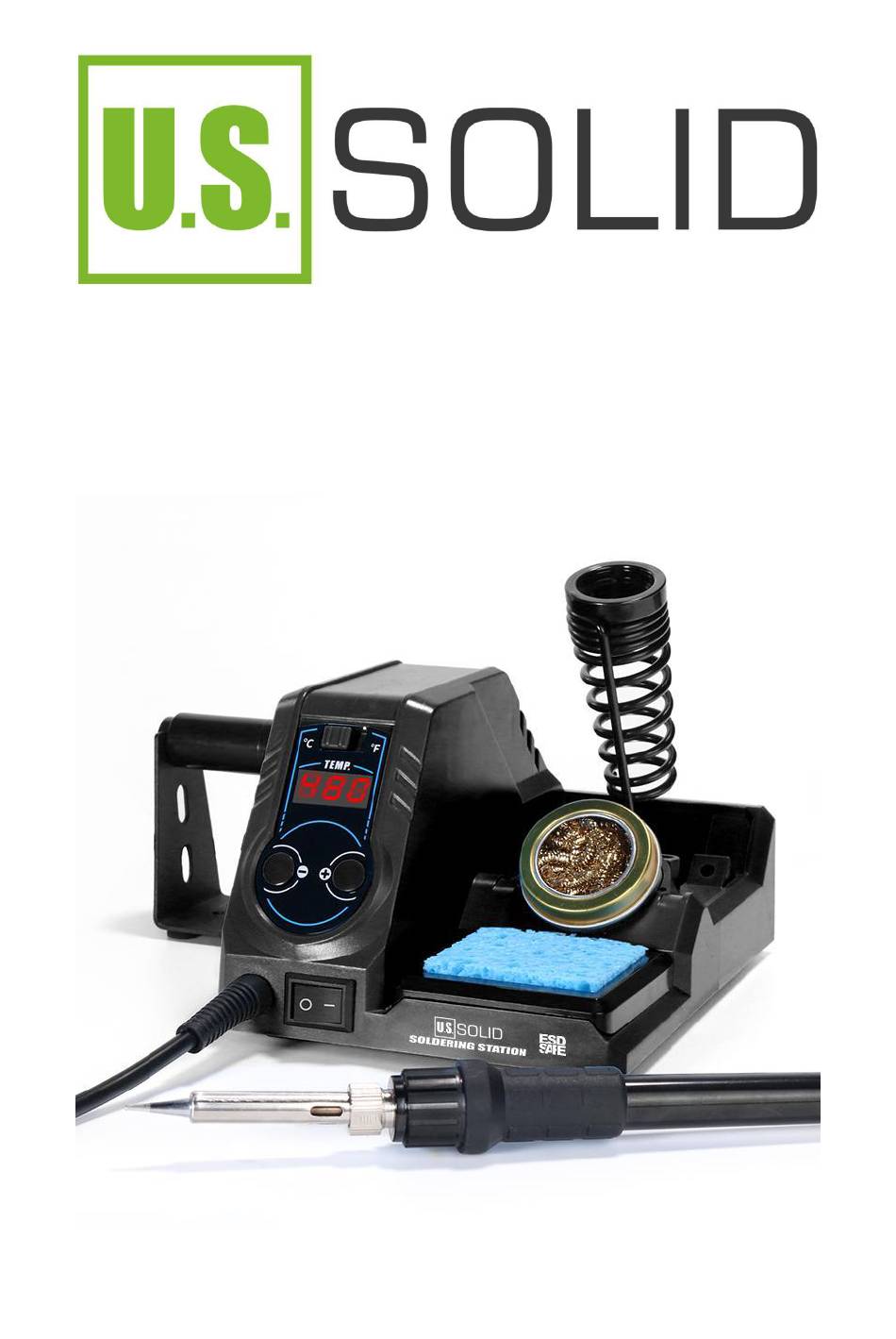

SOLDERING STATION
ESD SAFE, TEMPERATURE CONTROLLED, AND THERMOSTATIC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USS-SS00001 and is the answer not in the manual?

Questions and answers

Summary of Contents for U.S. Solid USS-SS00001

  • Page 1 SOLDERING STATION ESD SAFE, TEMPERATURE CONTROLLED, AND THERMOSTATIC...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION!!! WARNING!!! Read instruction manual before using. 1. To provide continued protection against risk of electric shock, connect to properly grounded outlets only. 2. Do not immerse in water. 3. Hot surface! Avoid contact! 4. Shock Hazard. To provide continued protection against electric shock, disconnect from power supply when not in use.
  • Page 3 10. Children should be supervised to ensure that they do not play with the appliance. 11. The soldering iron and desoldering iron are only to be used with the power supply unit provided with the appliance. 12. If the supply cord is damaged, it must be replaced by the manufacturer, a service agent, or similarly qualified persons.
  • Page 4 16. To ensure personal safety, please turn off the power switch after work is completed. When not in use for an extended period, please unplug the power cord. 17. Do not install nozzle when the hot air gun is turned on. The heat pipe and nozzle must be cooled before installing another nozzle.
  • Page 5 I. APPLICATIONS Model Number USS-SS00001 Control Unit Dimensions L160*W123*H113mm±5mm Operating Ambient Temperature 0℃〜40℃/32℉〜104℉ LOW‒90°C-300°C (194°F-572°F) Selective Temperature Range / HIGH‒200°C-480°C (392°F-896°F) Fahrenheit or Celsius Selector- 200℃〜480℃(392℉〜896℉) Display Soldering Tip to Ground Resistance <2ohms This unit is suitable for desoldering and soldering of various surface-mount components and through-hole components, such as SOP, DIP, SOIC, and many others.

  • Page 6: Parts List

    II. PARTS LIST 1. Holder (for Solder Wire Spool) 2. Low/High Temperature Range Selector (only one range can be selected at a time) 3. Temperature Display 4. Temperature Adjustment Buttons 5. Power Switch 6. Cord (Soldering Iron) 7. Soldering Iron 8.

  • Page 7: Operation

    III.OPERATION 1. Ensure the soldering iron is set up correctly. The station comes with a solder roll holder, install the solder roll holder. How to install: place the solder roll holder to the left of the station and align it with the installation holes on the left side of the station.
  • Page 8 stabilized, and be OFF when the station is cooling. Begin your operation when the station's temperature stabilizes and its operating indicator light blinks rapidly and regularly. CAUTION: Upon first use of the soldering iron tip, set the temperature to 250°C/482°F. When the soldering iron tip is just hot enough to melt solder, tin the soldering iron tip with a layer of solder (use of rosin-core solder is recommended) before setting the temperature to your desired value.
  • Page 9 °F / °C Temperature Display This function allows the station to comply with different user preferences for users in different regions. 1. When the power switch is OFF, press and hold the temperature increase button. 2. Then turn on the power switch, and the display will show “F” to indicate the station is in Fahrenheit display mode.
  • Page 10 Sleep Mode This function extends the lifespan of the soldering iron, conserves energy, and protects the environment. 1. When the power switch is OFF, press and hold the temperature decrease button. Then turn on the power switch, and the display will show “L10” to indicate the timer value of 10 minutes.
  • Page 11 When the temperature setting is greater or equal to 250°C/480°F, the station will cool to 200°C/392°F in sleep mode. When the temperature setting is less than 250°C/482°F, the station will cool to 90°C/194°F in sleep mode (Applicable to models with the LOW/HIGH Temperature Range Selector).
  • Page 12 Digital Temperature Calibration Temperature discrepancies may occur due to a change in the environment temperature or due to the replacement of the heating element or other components. You can correct such discrepancies with this function. The temperature calibration can help improve work efficiency and prolong the lifespan of the soldering iron.

  • Page 13: Maintenance And Precautions

    IV. MAINTENANCE & PRECAUTIONS 1. If a layer of oxidization forms on the surface of the soldering iron tip, you may falsely believe that the tip cannot heat up properly to melt the solder and do the tinning. However, the actual temperatures of both the heating element and tip are high.
  • Page 14 iron tip instead. 4. When placing the soldering iron back in the holder to idle after high-temperature operation, adjust the temperature to 250°C (482°F) or below for idling. Failure to do so, and leaving the soldering iron tip to idle on a high-temperature setting, will cause accelerated aging of the heating element and shorten the lifespan of the heating element and soldering iron tip.

  • Page 15: Troubleshooting

    V. TROUBLESHOOTING 1. "S-E" – This is an indication that the station’s sensor module is faulty. You need to replace the heating element (the heating element and the sensor modules). 2. "SLP" – This is an indication that the station is in sleep mode. 3.
  • Page 16 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com You can call one of our friendly customer service representative at +1(800) 209-4177...
