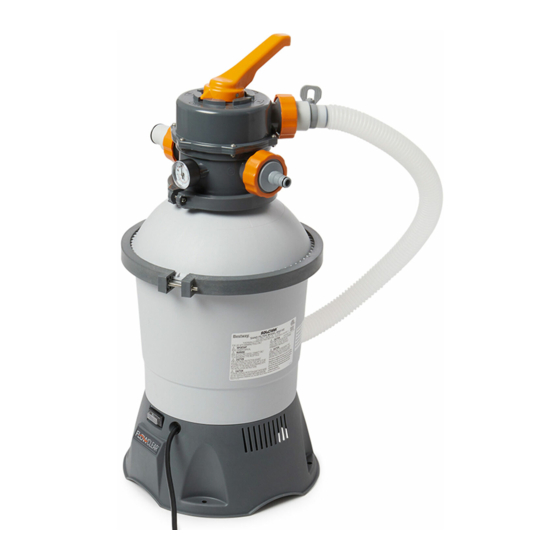

- Page 1 WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support 58516E Hmax 1.5 m OWNER’S MANUAL bestwaycorp.com/support Visit Bestway YouTube channel...
- Page 3 Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.
- Page 4 CAUTION: • TO ENSURE CONTINUED PROTECTION AGAINST SHOCK HAZARD,USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING. WARNING: • RISK OF ELECTRIC SHOCK. CONNECT ONLY TO A GROUNDING TYPE RECEPTACLE. CAUTION: • THIS PUMP IS FOR USE WITH STORABLE POOLS ONLY - DO NOT USE WITH PERMANENTLY-INSTALLED POOLS.
- Page 5 POOL SUCTION FITTING INSTRUCTIONS When installing and using this equipment, basic safety precautions shall always be followed, including the following: IMPORTANT SAFETY INSTRUCTIONS READ, FOLLOW, AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS. - Any modification that increases the flow rate of the circulation system shall require re-evaluation of the cover/grate and sump to ensure that the flow rating of the Suction Outlet Fitting Assembly (SOFA) is not exceeded.
- Page 6 7. Before using the product, please check the integrity of the head of the suction fitting. If the product is broken, please do not use it. 8. - All SOFAs shall be installed in accordance with the manufacturer’s installation instructions. - No modification shall be made to a SOFA structure or flow path unless the new configuration has been certified to the original SOFA.
-
Page 7: Specifications
SPECIFICATIONS Filter Diameter 270 mm Effective Fiter Area: 0.059 m (0.635 ft Max. Operating Pressure: 0.42 Bar (6 PSI) Working sand filter pressure: <0.25 Bar (3.5 PSI) 703 mm 270 mm Max. Water Temperature: 35˚C Sand: Not included Sand Size: #20 silica sand, 0.45-0.85 mm Sand Capacity: Approximately 8.5 kg... - Page 8 ASSEMBLY (You will need a screwdriver.) 1. Carefully remove all components from the package and check to ensure nothing is damaged. If equipment is damaged, Ø8 mm immediately notify the retailer from where the equipment was purchased. 2. The sand filter should be placed on solid, level 285 mm ground, preferably a concrete slab.
- Page 9 CONNECT TO THE POOL For 1.5 in(38 mm) connection Garden hose (not included) For Drain, Backwash, Rinse function P61318ASS16 P6680ASS16...
-
Page 10: Operation
STOP Before switching on, please read the manual carefully. GFCI TEST RESET RESET RESET TEST TEST TEST OPERATION CONTROL VALVE OVERVIEW WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function. Changing valve positions while the pump is running can damage the Control Valve, which may cause personal injury or property damage. - Page 11 Backwash: This function is used to Rinse: This function for initial startup, clean the sand bed; water is pumped cleaning, and sand bed leveling after down through the Collector Hub, Backwash; water is pumped upwards through the sand bed, and downwards through the sand bed, up deposited out of Port D.
-
Page 12: First Time Use Instructions
FIRST TIME USE INSTRUCTIONS Backwash and Rinsing must be performed to prepare the pump for its first use and to wash the sand. CAUTION: DO NOT DRY RUN THE SAND FILTER 1. Press down on the Control Valve handle and rotate to the Backwash function. 2. -
Page 13: Cleaning The Strainer
CLEANING THE STRAINER 1. Switch off the sand filter and set the Control Valve to the Closed function. 2. Replace the Debris Screens with Stopper Plugs to prevent water from escaping. 3. Remove the Strainer Cover by unscrewing it. 4. Take out the Strainer, remove any debris. 5. -
Page 14: Troubleshooting
TROUBLESHOOTING Problems Probable Causes Solutions - GFCI broken - For assistance, please visit the support section on Sand Filter does our website, www.bestwaycorp.com. not operate - Sand is too small - Recommend 0.45 mm to 0.85 mm #20 silica sand - Move the control valve from the - Stop the sand filter every time set the control valve backwash to the filter function... - Page 16 Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia Tel: Australia: (+61) 29 0371 388; New Zealand: 0800 142 101 Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL Exported by/Exporté par/Exportado por/Exportiert von/Esportato da Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited...
