Summary of Contents for Smarteck Electronics QT-06

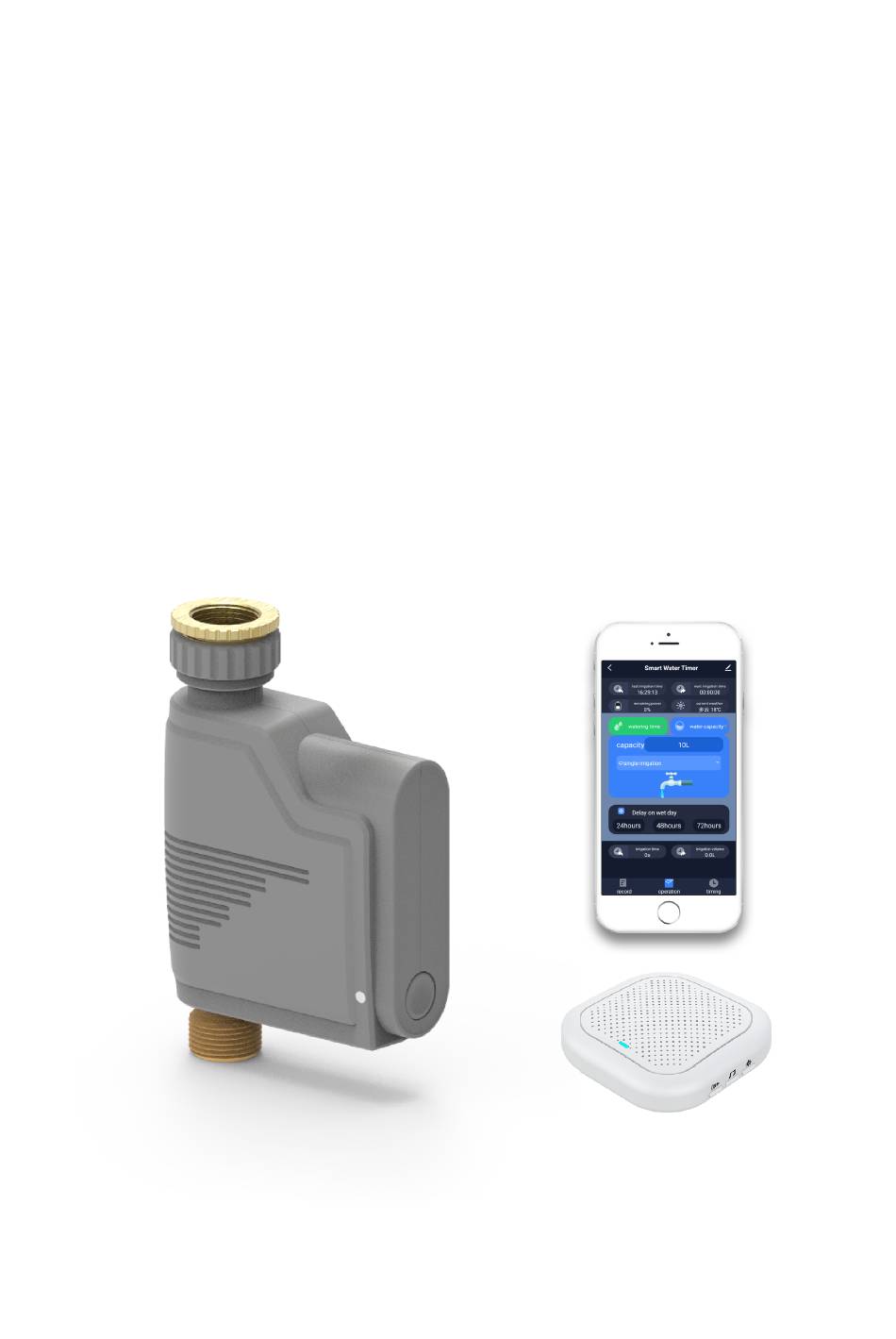

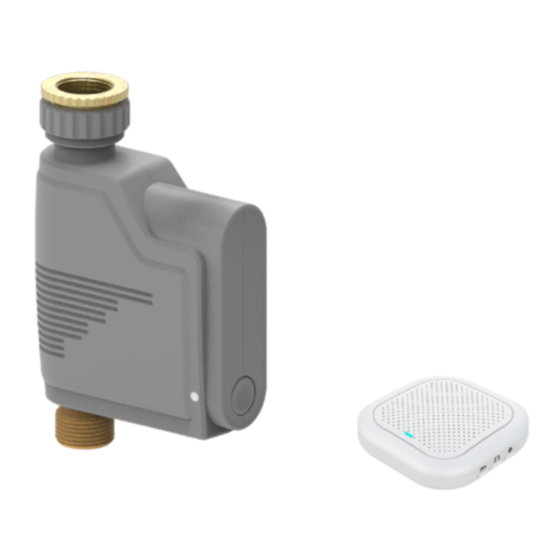

- Page 1 Smart Water Valve User Manual...
- Page 2 Contents 1. Product performance and function 2. Product parameters 3.Network connection instructions (1) The gateway connects with network tutorial (2) Add sub-device tutorial 4. The mobile APP interface introduction Remote control via APP Mobile phone/Tablet Large area sprinkler Smart water valve Dual-purpose nozzle 2.4Ghz Water pipe...
- Page 3 Overview Product performances and functions: ● Performances Controller operation: Remote control via APP, manually control on site, timing control via APP. Signal distance: The connection distance between the gateway and smart water timer is about 50 meters Battery: Standby time reaches 2 years by using 4 *AA alkaline dry batteries waterproof level:IP66，The smart water timer can be installed and used outdoors.
- Page 4 Product parameters ¾"water inlet ½"water inlet 1 inch internal thread water inlet Battery slot Pairing/Switch ¾"external thread outlet Product Product Smart gateway Smart water valve name name Operating ½"or ¾"&1" -10℃~+50℃ Caliber temperature Waterproof 0-95%RH Working Ip66 level No condensation humidity Withstand 0.2~8bar...
- Page 5 Gateway networking tutorial 1、Press the switch key for 10s, the red indicator light will switch to the flashing state 2、Open the smart home/Tuya smart APP to register and log in, 3、Click "+" in the upper right corner, or select "Add manually" 4、Click "Other"...
- Page 6 Gateway add sub-device Fast mobile network distribution through mobile APP 1、Open the APP gateway interface and select "Accessories" 2、Select "Quick Add" 3、Press the power button of the sub-device quickly twice, the gateway will send out a prompt ringtone, and the addition is successful 4、Add more sub-devices and repeat actions ②、③and ④（As shown).
- Page 7 Mobile APP Interface It's easy to understand and operate 1.Last irrigation time 1.Next irrigation time 2.Current weather 2.Remaining power Water capacity Watering time 1.Single irrigation 1. ingle irrigation 2.Cycle irrigation .cycle irrigation 3.Control switch button 3.Control switch button Delay watering in rain 1.
- Page 8 Q&A Can't the mobile APP connect to the gateway? 1.Follow the steps in the operating instructions to restart the connection once if it is not connected. 2.If you still can't connect, you can check several aspects to check whether the WIFI and mobile phone network are in normal use.
