1
LEG-UPPER
4
LOWER SUPPORT
X 4pcs
WINDMILL HEAD
8
Tools Required For Assembly
13mm Socket
& Wrench
Phillips
Screwdriver
Mallet

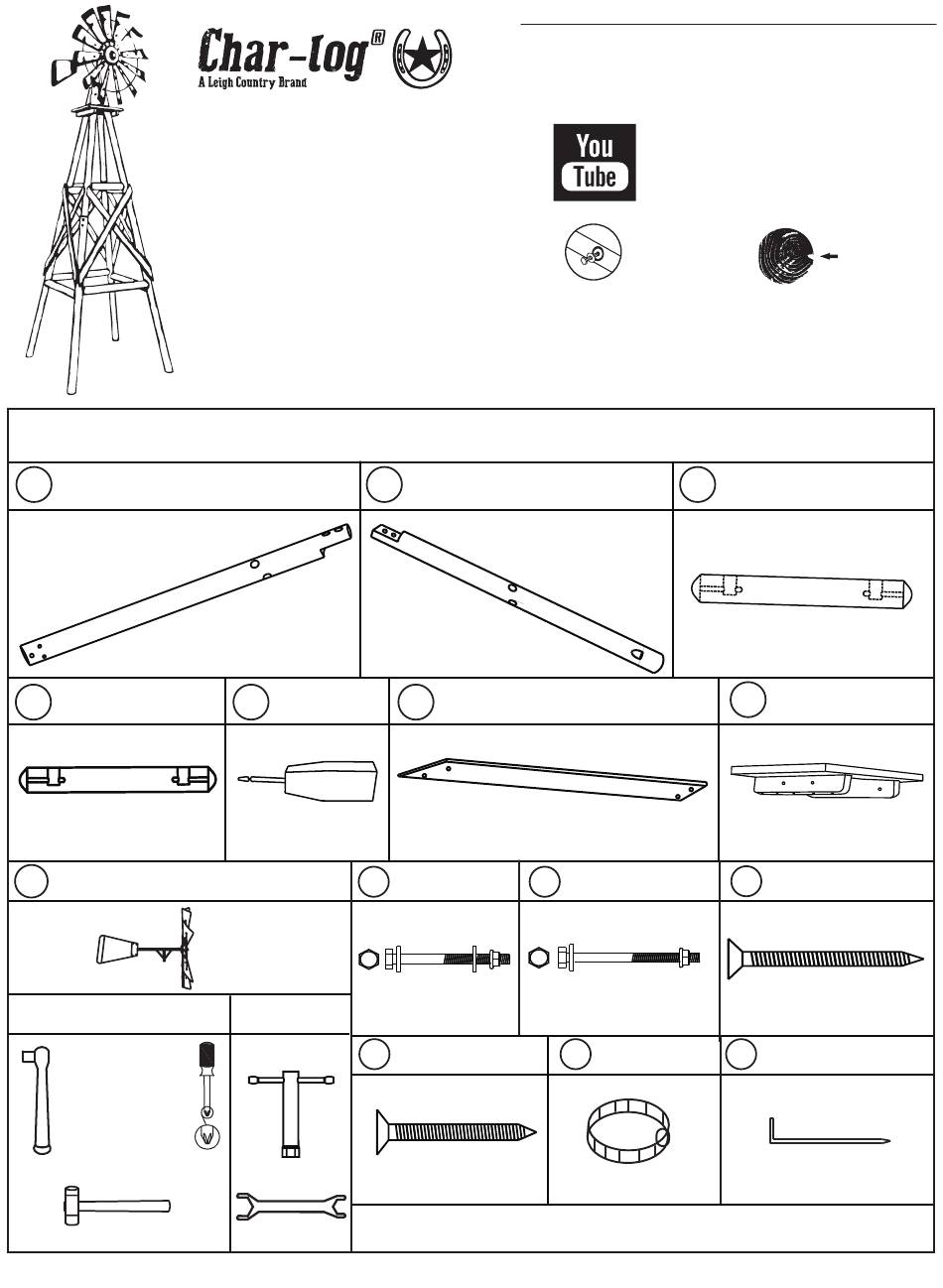

CHAR-LOG WINDMILL SERIES
ITEM # TX 20010, TX 20011, TX 22002, TX 26501 & TX 93485
PARTS AND HARDWARE LIST
2
1P & 1S x4
SHAFT
5
X 1pc
A
NUT & BOLT
X 1pc
Φ
Tools Included
D
SCREW
Power tools are not recommended while assembling this product.
IMPORTANT: READ CAREFULLY BEFORE BEGINNING
1. Do not tighten bolts until fully assembled.
2. Recessed holes to face outward.
3. Insert bolts with washer and secure with washer and nut.
4. Pre-checked side must always face downward or inward.
LEG-LOWER
2P & 2S x4
CROSS BRACE
6
N08-8
N08-12
B
NUT & BOLT
0.1"x3"
0.3"x4.7"
Φ
X 8pcs
S04-3
E
0.165"x1.4"
Φ
X 25pcs
Assembly video available at:
www.Youtube.com/LeighCountry.com
Recessed Hole
3
UPPER SUPPORT
7
PLATFORM
X 8pcs
S04-7
C
SCREW
Φ
X 16pcs
CLAMP
F
STAKE
X 4pcs
Pre-Checked
X 4pcs
X 1pc
0.17"x2.8"
X 16pcs
X 4pcs
Advertisement
Summary of Contents for Leigh Country CHAR-LOG Series
- Page 1 IMPORTANT: READ CAREFULLY BEFORE BEGINNING 1. Do not tighten bolts until fully assembled. 2. Recessed holes to face outward. 3. Insert bolts with washer and secure with washer and nut. 4. Pre-checked side must always face downward or inward. Assembly video available at: www.Youtube.com/LeighCountry.com Recessed Hole Pre-Checked...
- Page 2 STEP 2: STEP 1: Start with the Legs by connecting Connect the Upper Support the Upper parts to the Lower parts (3) and the Lower Support (4) (1P + 2P and 1S + 2S) by using the between the Legs (1) and (2) Bolts (A x 8).
- Page 3 WINDMILL HEAD (STEP 5) PARTS AND HARDWARE LIST MAIN SHAFT TAIL FAN BLADE X 1pc X 1pc X 12pcs HOB & TINES RING X 1pc X 1pc X 24pcs X 4pcs STEP 1: Tail Assembly STEP 2: Fan Head Assembly Loosen to secure to needle.
- Page 4 WINDMILL ANCHORING Leigh Country deems it to be the end user’s responsibility for determining the location and soil conditions for a windmill display setup. Anchoring the windmill base is very important to assure a long usable product life. It is the end user’s responsibility in properly anchoring the product.
- Page 5 First, find a level surface in your area that you want to anchor the windmill to. Depending on local soil conditions, it may be necessary for larger and deeper footings. Softer soils may need stronger footings. Then take the post hole digger and remove at least a 6” diameter x 12” deep of soil. 6”...
- Page 6 Limited Warranty and Care Instructions LIMITED ONE YEAR WARRANTY (NON-TRANSFERABLE) This product is covered under United General Supply’s (UGS) one (1) year limited warranty. To the original purchaser of this piece of furniture, cooler or accessory; UGS warrants that it will be free from defects in material and workmanship for up to one year from the date of purchase under normal use and proper care.
