Summary of Contents for atecpool ATEC E-5

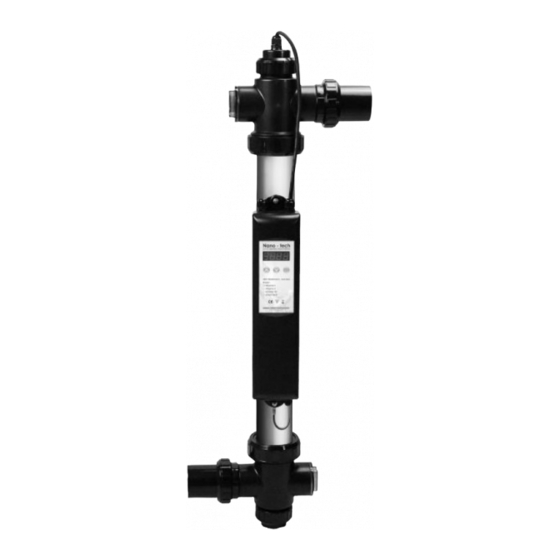

- Page 1 MANUAL INSTALLATION: MODELS: ATEC E-5 ATEC E-15 ATEC E-20 NATEC E-40 ATEC UV- C Ozone ATUV19111406...
-
Page 2: Table Of Contents
TA BLE OF C ONTENE NTS: 1. Safety warnings .............................3 2. Introduction ..............................3 2.1. How does the UV work? ..........................3 2.2. How does the Ozone work? ........................4 3. Main advantages ............................4-5 4. Pre-installation ...............................5 5. Technical Specifications ..........................5 5.1. Specifications for UV Systems ........................5 ....................6 5.2. -
Page 3: Safety Warnings
1.-SAFETY WARNINGS IMPORTANT: The instruction manual you are holding includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up. Keep this manual for future reference. The following safety instructions have to be taken into consideration when installing or using the Ultraviolet Unit:The unit is for swimming pool and Spas only. -
Page 4: How Does The Ozone Work
2-2.-HOW DOES THE OZONE WORK? A-Technologyies FZCO has developed a different model which combines the ozone and UV-C technology in one unique equipment. See Technical specifications for mode A TEC UV- C Ozone. ATEC UV- C Ozone model contains a high intensity Ultraviolet lamp different than the other UV models. -
Page 5: Pre-Installation
5.- TECHNICAL SPECIFICATIONS Max.flow Input Power MODELS Main Feature Type of UV-lamp rate(m³/h) ATEC E-5 TUV Model 16W 4P SE ATEC E-15 TUV Model 36T5 HE 4P SE ATEC E-20 TUV Model 36T5 HO 4P SE UV and Ozone ATEC UV- C Ozone... -
Page 6: Specifications For Atec Uv- C Ozone
0.6 gram Max. Ozone production UV and Ozone lamp. Life time 10000 hr. IP Protection IP 54 6.- SIZING ATEC E-5 ATEC E-15 / ATEC E-20 ATEC UV- C Ozone Way 1 Way 2 ATEC E-40 7.- PLUMBING INSTALLATION T h e U V S y s t e m c o m e s w i t h a l l i n t e r n a l c o m p o n e n t s a l r e a d y a s s e m b l e d a n d r e a d y t o b e i n s t a l l e d . O n l y t h e p i p e s c o n n e c t i o n s n e e d t o b e i n s t a l l e d b e f o r e s t a r t i n g u p t h e e q u i p m e n t . -
Page 7: Special Plumbing Installation Required For The Atec Uv-C Ozone
7-1.-SPECIAL PLUMBING INSTALLATION REQUIRED FOR THE MODEL ATEC UV-C Ozone The following instructions will be required for the installation of the model ATEC UV-C Ozone : 1. Fit the manometer onto the Venturi circuit using Teflon tape. Hand-tighten the manometer. 2. -
Page 8: Start Up
9.- START-UP Backwash the filter and ensure it is completely clean. Ensure the pool does not contain Copper, Iron nor algae. Check the pool balance and adjust the parameters as follow: ·pH: 7.2 – 7.6 ·Total alkalinity: 60 – 120 ppm ·Hardness: less than 120 mg/l ·Turbidity: less than 1 NTU ·TSS: less than 10 mg/l... -
Page 9: Flow Switch
b)- Schedule timer: This option allows you to schedule the working hours desired for the proper disinfection of the pool. · ‘MENU’ and push ▲ or ▼ until option ‘UV’. Press ‘MENU’ Press the bottom to select. · ‘UV00’ means midnight 00:00h; Pressing ▲ or ▼ you will move through all the hours in a day (from 0h to 24h.) UV01 means 01:00 am;... -
Page 10: Maintenace
The device must be cleaned twice a year. If there is an increase in algae and/or scale, the quartz glass tube in which the lamp is positioned must be cleaned using spirit vinegar or acid in a soft cloth. Operation hours Model ATEC E-5 ATEC E-15 9000hr. ATEC E-20 ATEC UV- C Ozone 10000hr. -
Page 11: Replacing The Electrical Unit
11.3.- REPLACING THE ELECTRICAL UNIT If the electrical unit needs to be replaced, first of all the earth connection (yellow wires) must be disconnected from the electrical housing. The entire box must be unscrewed and the earth wiring must be disconnected from the device. Unscrew the screw top and carefully disconnect the lamp holder from the lamp. -
Page 12: Exceptions That May Resultin Denial Of A Warranty Claim
13.1.- EXCEPTIONS THAT MAY RESULTIN DENIAL OF A WARRANTY CLAIM 1. Damage caused by careless handling, improper repackaging or shipping. 2. Damage due to misapplication, misuse, abuse or failure to operate and install the equipment as specified in this manual. 3.
