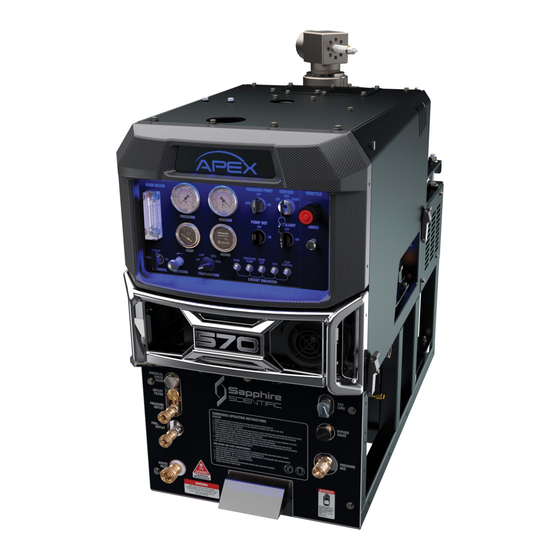

APEX 570
Operation and Service Manual
Manual P/N 108268 (49-053)
Revision M, August 2021
From Serial Number 2061

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APEX 570 and is the answer not in the manual?

Questions and answers

Lee
June 30, 2025

What is the thermostat for the Apex 570 and can I get it at AutoZone?

0
sharon
June 9, 2025

my clean water is dumping into my dirty water tank while I'm cleaning a carpet

0

Related Manuals for Sapphire Audio APEX 570

Summary of Contents for Sapphire Audio APEX 570

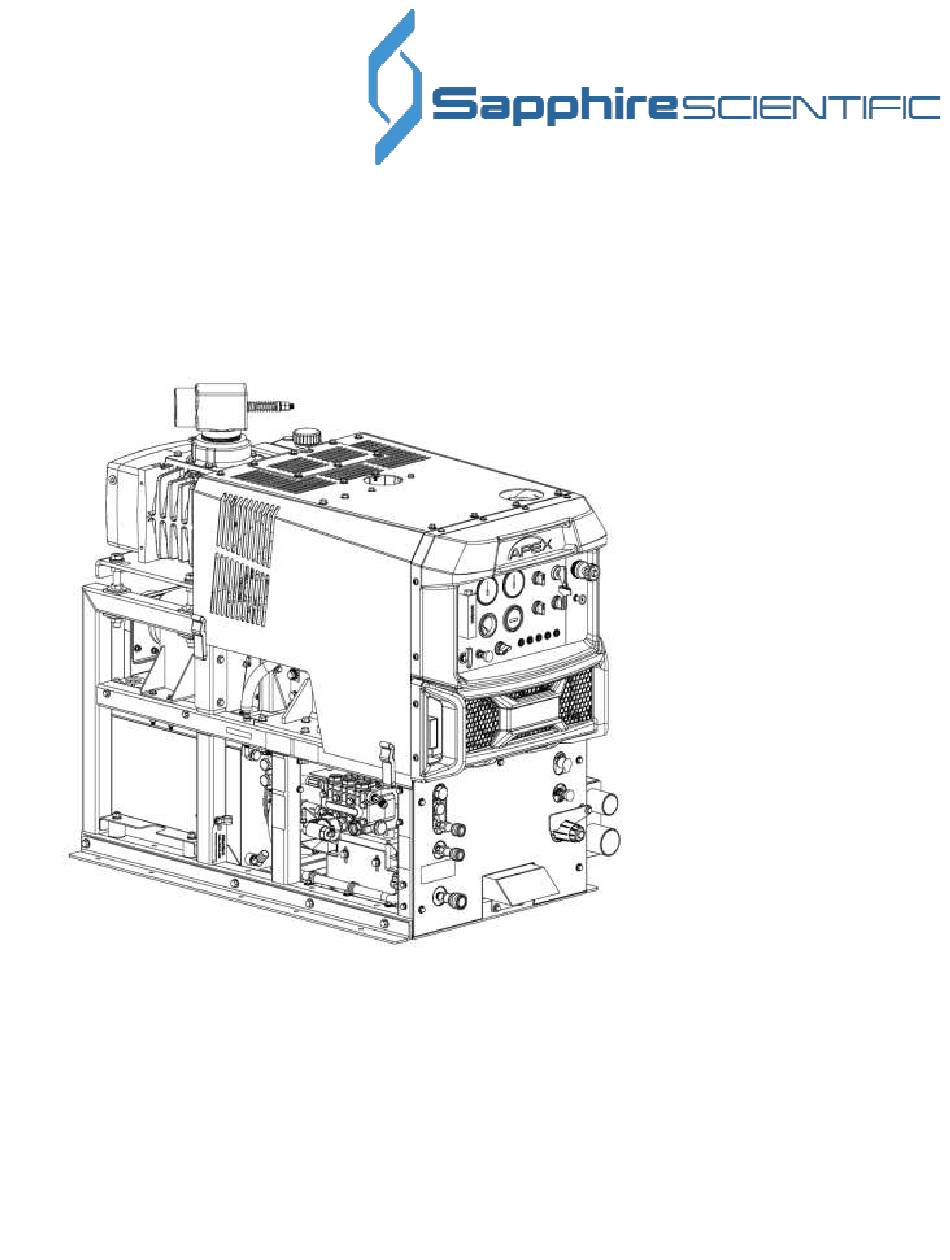

  • Page 1 APEX 570 Operation and Service Manual Manual P/N 108268 (49-053) Revision M, August 2021 From Serial Number 2061...
  • Page 3 Thank you for purchasing a Legend Brands product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to: https://www.legendbrandscleaning.com/Warranty For customer assistance: 866-445-3030 Page | I 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 4 SAPPHIRE SCIENTIFIC LIMITED WARRANTY Sapphire Scientific Model Apex 570 What Does This Warranty Cover? This warranty covers the Sapphire Scientific Model Apex 570 and is provided to the original purchaser only. How Long Does This Warranty Last? This warranty runs for: Two (2) years from the date of installation on parts and labor (Excluding normal maintenance items.) Factory installed original belts...

  • Page 5: Table Of Contents

    SECTION FIVE: PARTS LISTING AND REFERENCE ....................61 ILLUSTRATED PARTS LISTING ................................. 62 APEX 570 WIRING DIAGRAM ................................104 APEX 570 HOSE ROUTING AND FLOW DIAGRAM ........................105 OPTIONAL ACCESSORY - AUTOMATIC PUMPOUT ........................107 FUEL HOOK-UP KITS ..................................106...

  • Page 6: Section One: General Information

    It contains replacement parts numbers needed for ordering future parts. The model and serial number of your unit is located on the front left side of the frame as shown here: P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 7: Safety

    Please read all warnings carefully before operating the equipment. Sapphire Scientific uses this CAUTION symbol throughout the manual to warn of the possibility of damage to equipment or personal property. P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 8 11. Water under pressure can cause severe personal injury or fatality. Shut down unit, allow to cool down, and relieve system of all pressure before removing caps, valves, plugs, fittings, filters or hardware. 12. NEVER leave the vehicle engine running while the unit is in operation. P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 9 18. This unit produces high solution pressure. Improper use could result in injury. 19. California Proposition 65 Warning: Engine exhaust from this product contains chemicals known by the State of California to cause cancer, birth defects, or other reproductive harm. P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 10 4. Ensure that you have received proper training and are familiar with the start-up and shut-down procedures prior to operation. 5. DO NOT alter or modify your Model Apex 570 in any way. Use only replacement parts authorized by Sapphire Scientific. Modifications or use of unapproved parts could create a hazard and will void your warranty. This includes the use of any open ended hoses.

  • Page 11: Specifications

    7 - 8 lbf·ft Engine Front Lower Pulley Bolt 69 lbf·ft Vacuum Pump Hub 13 lbf·ft JET SIZING Sapphire Scientific recommends that the total floor tool tip size be #6 P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 12: Layout With 90 Gallon Waste Tank (In Inches)

    SECTION ONE: GENERAL INFORMATION LAYOUT WITH 90 GALLON WASTE TANK (IN INCHES) P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 13: Layout With 120 Gallon Waste Tank (In Inches)

    SECTION ONE: GENERAL INFORMATION LAYOUT WITH 120 GALLON WASTE TANK (IN INCHES) P a g e 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 14: Installation Requirements

    State and Federal laws must be maintained. 3. If mounting in a trailer, the MODEL Apex 570 console must be positioned so that it balances properly with respect to the trailer axle. Ten percent (10%) of the unit’s total overall weight (w/o accessories or water) should be on the tongue.

  • Page 15: Engine Requirements

    24 – 27 lbf·ft CHEMICAL REQUIREMENTS The SAPPHIRE SCIENTIFIC MODEL Apex 570 Truck mount unit’s unique last step chemical injection system can be used with a wide variety of water diluted chemical compounds, either acidic or alkaline, depending on the work to be performed.

  • Page 16: Receiving Your Truck-Mount Unit

    1. The unit should not show any signs of damage. If there is damage, notify the deliverer immediately. 2. Carefully check your equipment. The model Apex 570 should arrive with the following items as well as any additional optional accessories you may have ordered: EQUIPMENT LISTING •...
  • Page 17 Ford 2004 – 2010 108850 • Ford 2011+ 108605 • Ford Box Truck 2004+ 107445 • Ford Transit Connect 107279 • Nissan NV 107363 • Dodge ProMaster 108708 P a g e | 12 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 18: Section Two: Installation

    Vehicles vary in size and openings. Owners have different preferences on where in the vehicle they want their units positioned. Sapphire Scientific strongly recommends a side door installation for the model Apex 570. We do NOT recommend a rear door installation.
  • Page 19 ! Do not alter or modify your 570SS in any way. Use only replacement parts authorized by SAPPHIRE SCIENTIFIC, Inc. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your authorized Sapphire dealer for assistance. P a g e | 14 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 20: Installation Of Fuel Lines

    4. Inside the vehicle, attach the hose barb fitting and connect the fuel line from the console. 5. Drill a 1/2 inch hole nearby the bulkhead fitting for the fuel pump electrical extension harness to pass through. SEE DIAGRAM ON NEXT PAGE P a g e | 15 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 21 SECTION TWO: INSTALLATION FUEL LINE BULKHEAD INSTALLATION DIAGRAM P a g e | 16 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 22 Use the supplied Tek screws to install the lid of the fuel pump housing to the vehicle. NOTE: Install the fuel pump assembly close to the fuel source. P a g e | 17 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 23 Napa Gold 3054 filter which can also be purchased directly from us with Sapphire Scientific part number 36-212. P a g e | 18 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 24 Always mount fuel tanks where they will be protected from any vehicle collision. • When installing fuel lines from the fuel tank to the unit, use the proper size fuel line. P a g e | 19 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 25: Battery Connection

    FIRE EXTINGUISHER SAPPHIRE SCIENTIFIC, and many government agencies, recommend that a fire extinguisher rated for A, B, and C type fires be installed into any commercial vehicle. P a g e | 20 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 26: Console To Waste Tank Connections

    SECTION TWO: INSTALLATION CONSOLE TO WASTE TANK CONNECTIONS P a g e | 21 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 27: Section Three: Using Your Cleaning System

    This portion of the manual divides the unit up into systems and describes how each system works. Prior to proceeding into the operations and maintenance sections of this manual it is recommended that you acquire a basic understanding of how the unit functions. P a g e | 22 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 28: Water Heating System

    The hot solution mixture of water and chemicals then flows through the solution outlet manifold to the cleaning tool. Solution pressure is controlled by the Outlet Pressure Regulator. P a g e | 23 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 29 This cycle of heating and cooling is how the unit maintains a desired water temperature while cleaning. P a g e | 24 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 30: Vacuum System

    This protects the vacuum pump from water damage. Note: Waste tank level shut off will not shut the unit off due to high levels of foam. The use of a quality de-foamer is recommended. P a g e | 25 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 31: Chemical Pumping System

    The chemicals then flow through the chemical metering valve to the solution outlet. This valve controls the rate of flow of chemical into the cleaning solution, which is indicated on the flow meter. P a g e | 26 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 32: Preparation And Operation

    This section of the operator’s manual explains how to prepare, start, operate, shut down and maintain your Sapphire Scientific model Apex 570 mobile cleaning unit. The model Apex 570 unit is easy to operate, however only trained operators should proceed.
  • Page 33 The chemical selection valve allows you to start, stop or prime the chemical flow. 3. WATER PRESSURE GAUGE This gauge registers the amount of pressure in the water system. P a g e | 28 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 34 The engine choke control knob. Pull to open the choke for engine ignition. NOTE: For a greater explanation of gauges, see the section “Gauge Readings and Settings” below. P a g e | 29 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 35 The outlet filter catches debris in the solution stream before it exits the unit for the cleaning tool. 3. SOLUTION OUTLETS The pressure outlet is where you connect your solution hose. The Apex 570 has 2 outlets for 2 separate solution hoses.
  • Page 36 This valve must be maintained in accordance with the maintenance table in this manual. 9. VACUUM INLET HOSE PORTS The vacuum inlets are where you connect your vacuum hoses. The Apex 570 has one 2 inch and one 2-1/2 inch ports. Always cap unused ports to maintain proper vacuum levels.
  • Page 37 Sapphire Scientific recommends that the total floor tool size does not exceed #6. Using larger jet sizes on your model Apex 570 unit may reduce cleaning temperatures. PRIMING THE CHEMICAL PUMP NOTE: Sapphire Scientific recommends that the chemical pump be primed whenever the water pump is on. This eliminates possible pressure fluctuations and water pump pulsations related with running the chemical pump dry 1.
  • Page 38 For heavily soiled carpets, the wand may be used in a scrubbing action, with chemical solution applied in both push and pull strokes, provided that the final stroke is a pull stroke with no chemical injection. P a g e | 33 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 39 DUAL WAND OPERATION The model Apex 570 has sufficient capacity for dual wand operation with minimal pressure loss at each wand. The pump pressure and temperature can remain at the same levels as for single wand operation. The chemical flow rate may be set slightly higher than for single wand operation.
  • Page 40 NOTE: The setting is also dependent on the type of chemical used and the concentration ratio of chemical to water. Always use the LOWEST flow rate that properly cleans the affected areas. Excessive chemicals can cause damage to the items being cleaned. P a g e | 35 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 41 14. Clean the vehicle interior, unit, tools, hoses etc., as needed. Inspect ALL equipment and accessories for any damage, leaks, wear, etc. P a g e | 36 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 42: Freeze Protection / Descaling

    You can purchase a pre-assembled winterizing hose from Legend Brands, part number 68-168. Alternatively, you can make a short hose with 1/4” male quick connect to a 3/4” male quick connect. P a g e | 37 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 43 Open the tool valve until anti-freeze begins to flow from the tool. Repeat this procedure with all hoses and tools as necessary. Disconnect and store the hoses and tools once they have been filled with anti-freeze. P a g e | 38 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 44 DO NOT drain used anti-freeze on the ground or into storm drains. Dispose of anti-freeze only in an approved location. Observe Local, State and Federal laws when disposing of anti- freeze. P a g e | 39 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 45: Section Four: Service And Maintenance

    (3) Change water pump crankcase oil after first 50 hours of operation. (4) Inspect after first week of operation, and remove any debris present. Inspect again after 2 to 4 weeks. P a g e | 40 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 46: Apex 570 Service Interval Chart

    SECTION FOUR – SERVICE AND MAINTENANCE Apex 570 SERVICE INTERVAL CHART SERVICE INTERVALS – EVERY 50 HOURS High Pressure Hoses Inspect hoses for wear, damage or impending rupture. Replace if damaged. Engine Change engine oil after first 50 hours of operation.

  • Page 47: Maintenance And Service Adjustments

    This section of the operator’s manual contains the service and maintenance information for the model 570. A planned preventative maintenance program will ensure that your Apex 570 has optimum performance, long operating life, and a minimum amount of down time.
  • Page 48 Adjust valves to .0057 - .0073 inches every 1000 hours. • Adjust the engine speed to 3000 RPM max. DO NOT attempt to adjust without a tachometer and NEVER adjust the engine above 3000 RPM P a g e | 43 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 49 NOTE: Two drains are on your vacuum pump. Ensure that both sides of the vacuum pump are filled to their proper level when servicing. Vacuum Pump Oil Capacity Shaft End 1.25 pints Gear End 2 pints P a g e | 44 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 50 40 lbf·ft Engine Fan Mounting Bolts 7 – 8 lbf·ft Vacuum Pump Hub #38-032 13 lbf·ft Note: Engine flywheel is factory set at 40 to 43 lbf·ft P a g e | 45 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 51 The chemical pump should be rebuilt every 500 hours. This involves changing the diaphragm, check valves, and inspecting the disk. DO NOT attempt to reuse o-rings after the check valves have been removed. Replace all o-rings when servicing check valves. P a g e | 46 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 52 SPRING, CHECK VALVE ASSY. 27-010 POPPET, CHECK VALVE ASSY 27-004 INSERT, SEAT-CHK VLV ASSY TM 27-011 SEAT, CHECK VALVE ASSY. 41-008 ORING, ½ ID 5/8 OD P a g e | 47 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 53 3. Loosen the valve nut and remove the valve stem with long nose pliers. 4. Clean and lubricate stem. 5. Reassemble pressure regulator. 6. Check the port cap o-rings for proper lubrication as well. P a g e | 48 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 54 Applying anti-seize grease to the threads will allow easier removal of filter when cleaning or replacement is required. RECOVERY TANK STRAINER BASKET The recovery tank strainer should be emptied and cleaned on a daily basis. P a g e | 49 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 55 All high-pressure solution hoses must be rated for 3000 PSI at 250 deg. F. Thermoplastic hoses do not meet this requirement and should not be used. Severe burns and injury may result if the hoses do not meet these requirements. P a g e | 50 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 56 Inspect and clean at least once a month or as needed. Hard water deposits can build and reduce water flow. WYE STRAINER SCREEN P a g e | 51 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 57 3. Once the belts are replaced, turn the adjusting screws clockwise to tension the belts until proper tension is achieved (1/2” deflection in the center of the belts, half-way between the pulleys). P a g e | 52 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 58 NOTE: Do not over tighten the screws holding on the upper and lower front end bezel, doing so may damage these components. Figure 1 - Top and Side Bezel Screws P a g e | 53 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 59 SECTION FOUR – SERVICE AND MAINTENANCE INSTRUMENT PANEL ACCESS Figure 2 - Right and Left Side Views Figure 3 - Instrument Panel Access P a g e | 54 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 60: Troubleshooting

    SYSTEM. Do not alter or modify your model Apex 570 in any way. Use only replacement parts authorized by Sapphire Scientific. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your authorized Sapphire dealer for assistance.
  • Page 61 Manual. DO NOT restart the engine until the cause is determined and corrected. No ignition in the engine or the engine is Refer to the Kubota Engine Operation and Maintenance malfunctioning. Manual. P a g e | 56 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 62 (while cleaning, engine RPM is normal but vacuum is higher than expected) PROBABLE CAUSE SOLUTION Readjust vacuum relief valve to 13” Hg. Vacuum relief valve requires adjustment. Improper throttle adjustment. Adjust throttle to set desired vacuum pressure. P a g e | 57 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 63 Hose inner lining is constricted. Remove restriction or replace hose. Air leak in chemical supply line, priming valve Check for air leaks. Replace faulty parts. or metering valve. P a g e | 58 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 64 Defective cylinder in the pressure pump. Measure the pump volume. If the pump volume is less than normal, refer to “Loss of Solution Volume” in this section. P a g e | 59 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 65 Pump-out circuit breaker on control panel has After inspecting waste pump to determine the cause of the been tripped. tripped circuit breaker, press the reset button. P a g e | 60 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 66: Section Five: Parts Listing And Reference

    FUEL FILTER KIT ......................102 DECALS ........................103 WIRING DIAGRAM ....................104 HOSE ROUTING/FLOW DIAGRAM ................105 OPTIONAL ACCESSORY: AUTOMATIC PUMPOUT ............ 107 FUEL HOOK-UP KITS ....................110 P a g e | 61 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 67: Illustrated Parts Listing

    SECTION FIVE: PARTS LISTING AND REFERENCE ILLUSTRATED PARTS LISTING 70-570, CONSOLE, SAPPHIRE APEX 570 P a g e | 62 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 68 SECTION FIVE: PARTS LISTING AND REFERENCE 70-570, CONSOLE, SAPPHIRE APEX 570 P a g e | 63 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 69 SECTION FIVE: PARTS LISTING AND REFERENCE 70-570, CONSOLE, SAPPHIRE APEX 570 P a g e | 64 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 70 SECTION FIVE: PARTS LISTING AND REFERENCE 70-570, CONSOLE, SAPPHIRE APEX 570 BOM TABLE P a g e | 65 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 71: Frame And Enclosures

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-934, FRAME AND ENCLOSURES P a g e | 66 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 72 SECTION FIVE: PARTS LISTING AND REFERENCE 69-934, FRAME AND ENCLOSURES P a g e | 67 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 73 SECTION FIVE: PARTS LISTING AND REFERENCE 69-934, FRAME AND ENCLOSURES BOM TABLE P a g e | 68 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 74: Water Pump Bracket Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-946, WATER PUMP BRACKET ASSEMBLY P a g e | 69 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 75 SECTION FIVE: PARTS LISTING AND REFERENCE P a g e | 70 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 76 SECTION FIVE: PARTS LISTING AND REFERENCE P a g e | 71 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 77: Instrument Panel

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-936, INSTRUMENT PANEL ASSEMBLY BOM TABLE P a g e | 72 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 78: Engine Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE P a g e | 73 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 79 SECTION FIVE: PARTS LISTING AND REFERENCE P a g e | 74 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 80 69-940, ENGINE ASSEMBLY 3 OF 3 NOT SHOWN IN DRAWING VIEWS: 34-016, THERMOSTAT, KUBOTA 160 DEG 36-045, SWITCH, OIL PRESSURE KUBOTA 36-173, FILTER, OIL KUBOTA WG 972 P a g e | 75 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 81 SECTION FIVE: PARTS LISTING AND REFERENCE P a g e | 76 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 82: Vacuum Pump Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-942, VACUUM PUMP ASSEMBLY P a g e | 77 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 83: Vacuum Relief Valve Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-049, VACUUM RELIEF VALVE ASSEMLBY P a g e | 78 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 84: Pressure Pump Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-941, PRESSURE PUMP ASSEMBLY P a g e | 79 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 85 68-180, PRESSURE PUMP BREAKDOWN AVAILABLE FOR SERVICE: 36-463, SEAL KIT, HTS PUMP SERIES (20MM PLUNGER SEAL REPLACMENT KIT) 36-467, VALVE KIT, HTS PUMP SERIES (HIGH TEMPERATURE VALVE REPLACMENT KIT) P a g e | 80 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 86: Chemical Pump

    SECTION FIVE: PARTS LISTING AND REFERENCE 46-056, PUMP, CHEMICAL GENERAL 100906 P a g e | 81 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 87: Coolant Heat Exchanger

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-967, COOLANT HEAT EXCHANGER P a g e | 82 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 88: Thermal Well

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-965, THERMAL WELL ASSEMBLY P a g e | 83 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 89 SECTION FIVE: PARTS LISTING AND REFERENCE 69-965, THERMAL WELL ASSEMBLY BOM TABLE P a g e | 84 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 90: Radiator And Overflow Bottle

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-937, RADIATOR AND OVERFLOW BOTTLE ASSEMBLIES P a g e | 85 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 91: Solution And Bypass Manifolds

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-975, SOLUTION AND BYPASS MANIFOLDS P a g e | 86 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 92 SECTION FIVE: PARTS LISTING AND REFERENCE 69-975, SOLUTION AND BYPASS MANIFOLDS BOM TABLE P a g e | 87 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 93: Pressure Regulator

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-966, PRESSURE REGULATOR ASSEMBLY P a g e | 88 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 94: Pressure Regulator Latch

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-962, PRESSURE REGULATOR LATCH ASSEMBLY P a g e | 89 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 95: Water Inlet And Regulator Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-970, WATER INLET AND REGULATOR ASSEMBLY P a g e | 90 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 96: Vacuum Inlet Bracket

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-438, ASSY, VACUUM INLET BRACKET P a g e | 91 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 97: Belt Cooling Fan

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-961, BELT COOLING FAN AND PULLEY 68-414, COOLING FAN INTERNAL ASSEMBLY P a g e | 92 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 98: Diverter Lockout Valve

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-974, DIVERTER LOCKOUT VALVE ASSEMBLY P a g e | 93 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 99: Temperature Control Module

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-634, ASSY, TEMPERATURE CONTROL MODULE P a g e | 94 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 100: Gallon Waste Tank

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-926 90 GALLON WASTE TANK ASSEMBLY P a g e | 95 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 101 SECTION FIVE: PARTS LISTING AND REFERENCE 69-926 90 GALLON WASTE TANK ASSEMBLY TABLE P a g e | 96 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 102: Gallon Waste Tank

    SECTION FIVE: PARTS LISTING AND REFERENCE 69-925 120 GALLON WASTE TANK ASSEMBLY P a g e | 97 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 103 SECTION FIVE: PARTS LISTING AND REFERENCE 69-925 120 GALLON WASTE TANK ASSEMBLY TABLE P a g e | 98 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 104: Waste Tank Ports Kit

    SECTION FIVE: PARTS LISTING AND REFERENCE 48-142 WASTE TANK PORTS KIT P a g e | 99 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 105: Waste Tank Hoses Kit

    SECTION FIVE: PARTS LISTING AND REFERENCE 48-134 WASTE TANK HOSES KIT P a g e | 100 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 106: Fuel Pump Assembly

    SECTION FIVE: PARTS LISTING AND REFERENCE 68-030 FUEL PUMP AND HOUSING ASSEMBLY P a g e | 101 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 107: Fuel Filter Kit

    SECTION FIVE: PARTS LISTING AND REFERENCE 68-194 FUEL FILTER KIT P a g e | 102 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 108: Decals

    44-066, DECAL, WARNING ELECTRIC 44-085, DECAL, WARNING ROTATING 44-067, DECAL, WARNING READ MANUAL SHOCK MACHINERY 44-079, DECAL, UNLEADED FUEL ONLY 44-090, DECAL, WARNING MANIFOLD MAINTENANCE 44-312, DECAL, 570 EMBLEM P a g e | 103 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 109: Apex 570 Wiring Diagram

    SECTION FIVE: PARTS LISTING AND REFERENCE APEX 570 WIRING DIAGRAM P a g e | 104 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 110: Apex 570 Hose Routing And Flow Diagram

    SECTION FIVE: PARTS LISTING AND REFERENCE APEX 570 HOSE ROUTING AND FLOW DIAGRAM P a g e | 105 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 111: Fuel Hook-Up Kits

    SECTION FIVE: PARTS LISTING AND REFERENCE FUEL HOOK-UP KITS HOSE IDENTIFICATION CHART (SEE HOSE ROUTING DIAGRAM) P a g e | 106 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 112: Optional Accessory - Automatic Pumpout

    SECTION FIVE: PARTS LISTING AND REFERENCE OPTIONAL ACCESSORY - AUTOMATIC PUMPOUT 124982 AUTOMATIC PUMP-OUT ASSEMBLY P a g e | 107 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 113 SECTION FIVE: PARTS LISTING AND REFERENCE OPTIONAL ACCESSORY (PART OF 124982) 124889 WASTE PUMP OUT KIT 124979, HARNESS, PUMP OUT (PRE-WIRED BATTERY WIRES, HARNESS PIGTAIL AND RELAY JUMPER) NOT SHOWN P a g e | 108 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 114 SECTION FIVE: PARTS LISTING AND REFERENCE OPTIONAL ACCESSORY (PART OF 124982) 124883 VALVE BRACKET ASSEMBLY P a g e | 109 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...

  • Page 115: Fuel Hookup Kits

    FTTG, BRB 1/4P X 5//16H BR 18-028 HOSE, 3/16 X 25 (1/8P X 1/8P NO COVER) 14-011 CLAMP, HOSE FUEL # 6 14-000 CLAMP, HOSE #12 P a g e | 110 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 116 FTTG, BULKHEAD 1/4 IN BRASS 21-116 ELL, 1/8 FP X 1/8 FP BRONZE 66-030 ADAPTOR,FUEL NECK(CHEVY) 18-027 HOSE, 3/16 X 5 (1/8P X 1/8P NO CVR) P a g e | 111 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 117 FTTG, BRB 1/8P X 5/16 H BR 21-039 ELL,1/4 IN LG STREET BRASS 21-006 FTTG, BRB 1/4P X 5//16H BR 21-086 FTTG, BULKHEAD 1/4 IN BRASS P a g e | 112 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
  • Page 118 HOSE, 3/16 X 25 (1/8P X 1/8P NO COVER) 21-086 FTTG, BULKHEAD 1/4 IN BRASS 21-006 FTTG, BRB 1/4P X 5//16H BR 21-039 ELL,1/4 IN LG STREET BRASS P a g e | 113 108268/49-053 Rev M LEGEND BRANDS MODEL APEX 570...
