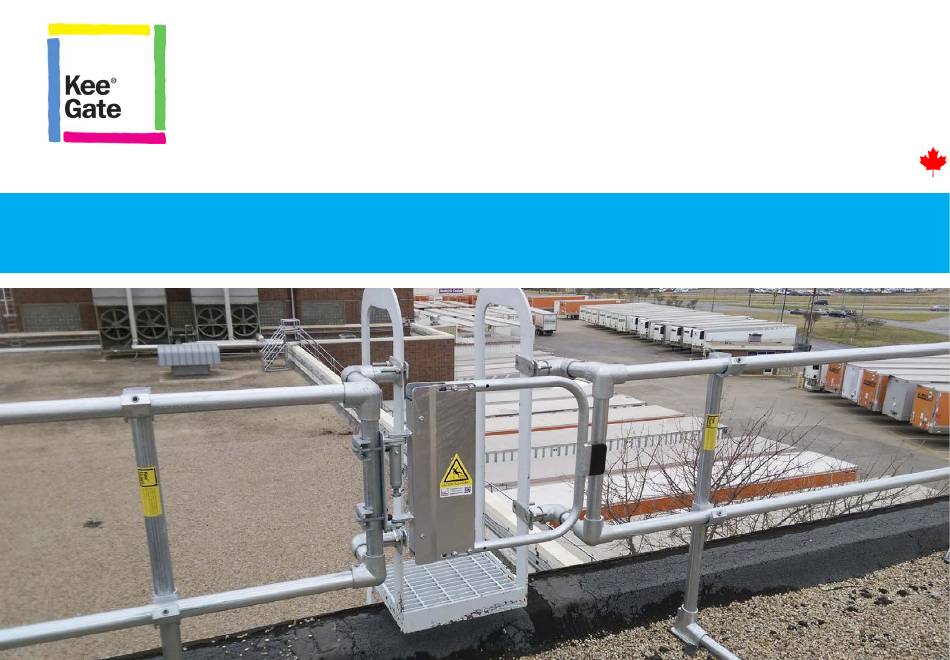

- Page 1 R E L I A B L E S A F E A C C E S S Single and Double Gates Operation & Maintenance Manual...
-
Page 3: System Overview
1.8m (70.86”) for the double gate. easily to all variants of the KEE KLAMP & KEEGUARD systems as Connecting the “KEE GATE ” to the supporting structure/post/ well as Safe Access Solutions such as Mobile Access... -
Page 4: Testing & Certification
SYSTEMS DISTRIBUTORS Tested in accordance with the following (See Specification All Systems comply with the following:- KEE GATE is available as a supply and installation service or Section for full details) :- Work at Height Regulations. component supply only. Products are available from Kee Safety EN 13374 Class A. - Page 5 Recommended installed height of KEE GATE is 42” in the USA depending on the structure it is level to another; such a barrier may or may not have openings through it.”...
- Page 6 Part No. Description Part No. Description (in) (in) (in) (lbs) (mm) (mm) (mm) (kg) SGNA018GV 18" Gate - Galvanized SGNA018GV 18" Gate - Galvanized 16.5 37lbs 10oz 16.8 SGNA018PC 18" Gate - Powder Coated SGNA018PC 18" Gate - Powder Coated SGNA021GV 21"...
-
Page 7: Tools Required
Mounting and tensioning single gate spring TOOLS REQUIRED You will need the following in order to install the Kee Gate: • Marker Pen • Tape Measure • 1 No 15/16” Ring Spanners • 3/16” Allen Key • 1 No ½” socket •... - Page 8 Mounting and tensioning single gate spring F. To extend the gates width to the required opening simply G. Establish the additional distance required so the striking H. Extend the gate by pulling to the required distance. loosen the hex nuts and bolts on the bottom guardrail using a plate strikes the required post.
- Page 9 Caution:- Continue to hold the ratchet firmly When installing Kee Gate on a pitched roof it is essential that the gate is mounted vertically level to the horizontal. This can be and do not release until the lock nut is tightened. Now remove accommodated by using standard 90 degree Elbows (15-8) (4No required per gate).
- Page 10 Note:- Installing Kee Gate When installing Kee Gate on a pitched roof it is essential that the gate is mounted vertically level to the horizontal. This can be accommodated by using standard 90 degree Elbows (15-8) (4No required per gate).
- Page 11 Mounting double gates and tensioning spring TOOLS REQUIRED You will need the following in order to install the Kee Gate: • Marker Pen • Tape Measure • 1No 3/8” Ring Spanner • 1No 5/32” Ring Spanner • 1No 15/16” Ring Spanner •...
- Page 12 Mounting double gates and tensioning spring G. Divide the distance recorded in step E by 2, mark F. Disconnect the tubular gate from the hinge assembly by H. Using a hacksaw or similar carefully cut through the top and loosening the top & bottom cast clamp grub screw, using a hex this measurement on gate top and bottom tubes as shown.
- Page 13 Double Gate Components Double Gate - Galvanized - SGDBLEUGV / SGDBLNAGV Spring Loaded, self-closing safety gate. Manufactured from steel to EN 10255. 33.7mm diameter tube x 3.2mm wall thickness to meet requirements of EN 13374 & EN 14122. Specify SGDBLEUGV to include European fixing pack or SGDBLNAGV for NA fixing pack. Material : Galvanized steel to BS EN ISO 1461 ASTM A53.
- Page 14 Single Gate Components 466mm 500mm European Gate - Galvanized - SGEU500GV Spring Loaded, self-closing safety gate. Manufactured from steel to EN 10255. 33.7mm diameter tube x 3.2mm wall thickness to meet requirements of EN 13374 & EN 14122. Complete with fixing pack.
- Page 15 Kee Gate Recertification Periodic inspections by a competent person are recommended by the manufacturer. The frequency will depend upon the environment, location and usage but should be at least every 12 months. • Visually inspect the complete installed product in relation to the client’s needs. Establish if any modifications and/or additional products are required to reflect any refurbishment requirements or additional plant &...
- Page 16 Canada Kee Safety, Ltd. 40 North Rivermede Road, Units 6 - 7 Concord, Ontario L4K 2H3 Tel: (905) 669 1494 Fax: (905) 669 4347 Toll Free: (877) 505 5003 www.keesafety.ca...
