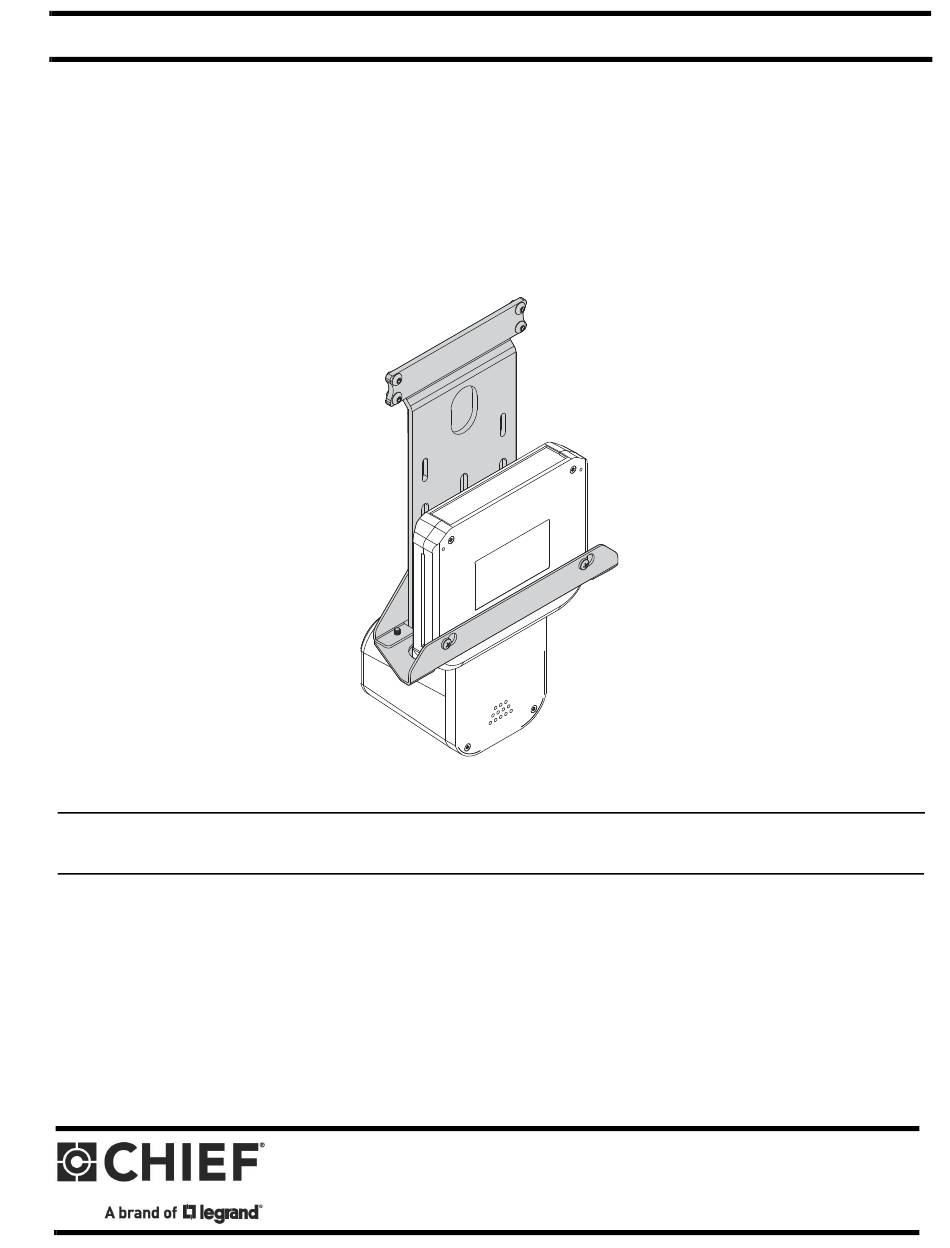

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Thinstall IntelliSHOT® ™ Camera Bracket Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description TA210E...
- Page 2 The information contained in this document is subject follow all instructions can result in serious personal injury, to change without notice or obligation of any kind. Legrand damage to equipment, or voiding of factory warranty! It is the makes no representation of warranty, expressed or implied, installer’s responsibility to make sure all accessories are...
- Page 3 Installation Instructions TA210E LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
- Page 4 TA210E Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/8" 7/16" 5/32" (included) 1/8" (included) PARTS C (1) [Camera bracket] B (1) [Extension bracket] N (1) A (1) [Attachment bracket] [Hanging bracket] D (1) E (4) F (3) [Backing bracket] G (6) #10-24 x 3/8"...
- Page 5 Installation Instructions TA210E Installation Shelf Assembly (F) x 3 Use three 1/4-20 x 7/8" button head cap screws (P), three 1/4" washers (G) and three 1/4"20 lock nuts (Q) to connect attachment bracket (N) to either extension bracket (B) or hanging bracket (A).
- Page 6 TA210E Installation Instructions TS3XX or iCF30 Installation If already installed, remove display from faceplate. See swing arm installation instructions for details. Use four #10-24 x 1/2" Phillips head screws (H) and four #10-24 lock nuts (K) to connect hanging bracket (A) to faceplate.
- Page 7 Installation Instructions TA210E Camera/Component Installation (J) x 2 WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all equipment and accessories mounted on the TA210E brackets does not exceed 10 lbs (4.54 kg) per bracket.
