Summary of Contents for Kenko SKY WALKER SW-0

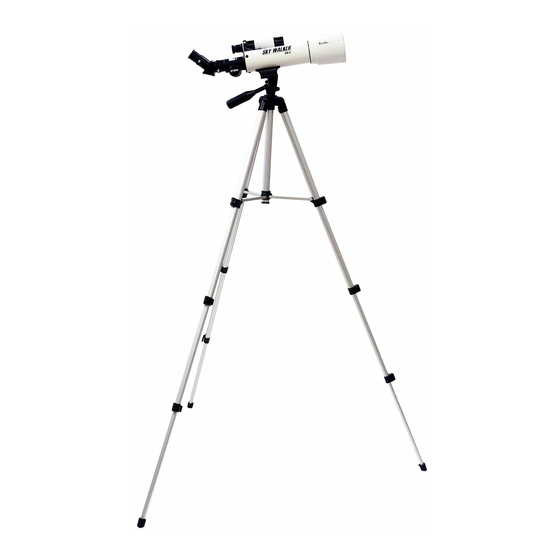

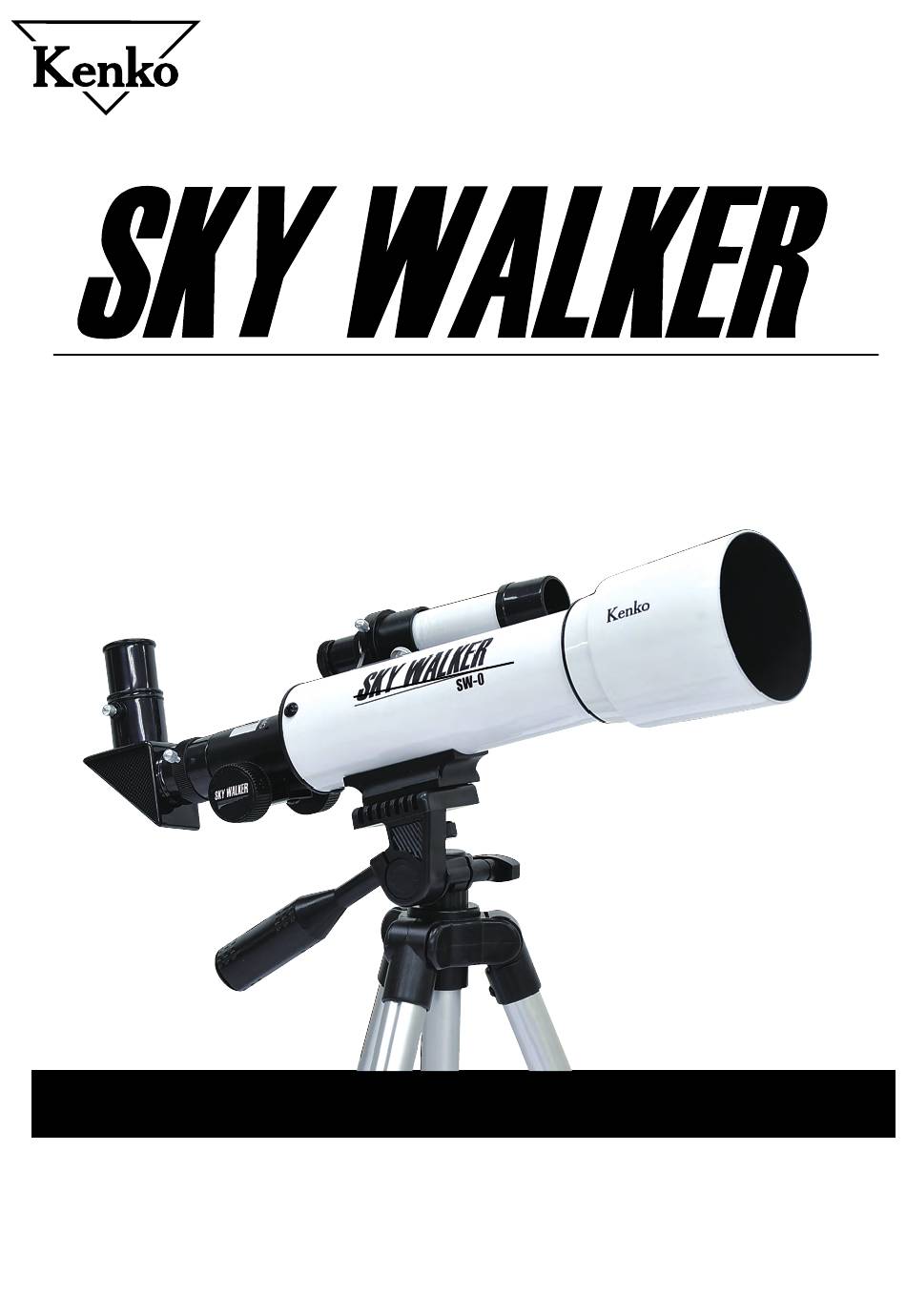

- Page 1 SW-0 Operating Instructions...
-
Page 2: Safety Precaution
Please do not leave Please pay extra attention telescope at places that when children are using sunlight can reach. This the telescope. The mount may result in setting fire and tripod sections may due to the concentrated pinch users finger if not light from the optics. careful. Please store properly after each use. Children may accidentally swallow the cap Keep all plastic bags (form packaging) and eyepiece. Get immediate medical away from children to avoid danger of attention if such situation occurs. suffocation or choking. Before reading this instruction manual: ●This booklet is the instruction manual for SKY WALKER SW-0 Telescope. Although the shape of the telescope in the pictures may be different, the operating method is the same. ●It is prohibited to copy or reproduce parts or all parts of this instruction manual. ●The specification, design or other information in this instruction manual may be changed and edited from time to time without notification. ●When operating the telescope, please follow the instructions in this manual. Pay special attention to the WARNINGS and CAUTIONS listed in this booklet for your safety. ●This instruction manual is written clearly and comprehensively. If there are sections or statements that is not clear, has wrong descriptions or misspelled, please feel free to inform us. ●Kenko Tokina Company Limited will not be responsible for any losses, damages or claims from a third person against the users due to improper use of the telescope. ... -
Page 3: Package Contents
Package Contents Be sure to check all listed items are included with your purchase. Three kinds of Eyepiece 20ｍｍ 12.5ｍｍ 4ｍｍ Telescope Optical Tube 3x Barlow Lens Tripod Finder Diagonal Erecting prism Part Name of the merchandise ① ⑧ ⑦ ② ①Telescope Optical Tube ⑨ ②Hood ④ ③ ③Objective Lens（Interior） ⑥ ④Azimuthal Mount ⑩ ⑪ ⑤Elevator Locking Screw (Reverse Side) ⑥Telescope Tube swing Locking Screw ⑤ ⑦Finder Optical Axis, Adjustment Screw (3 locations) ⑫ ⑧Finder ⑬ ⑨Eyepiece ⑩Diagonal ⑪Focus Knob ⑭ ⑫Altitude motion fixing shaft ⑬Tripod ⑭Tripod Extender Lock... -
Page 4: Setting Up The Tripod
安全上のご注意 Assembly ◆天体望遠鏡をご使用の前に◆ This section covers the assembly instructions for your SKY WALKER SW-0 telescope. It is highly recommended that the first setup of the telescope should be done indoors. This way it will be easier to identify all the various parts and familiarize yourself with the correct assembly procedure before attempting out in the field. 1.Setting Up the Tripod 3.Attaching the Finder to the Telescope Optical Tube Stand the tripod upright and pull the tripod legs apart until each leg is fully extended (Fig-1). As necessary, Attach the finder to the proper location on the adjust the leg-length releasing the tripod extender lock telescope optical tube. The finder should be aligned (Fig-2). before using the telescope (See page 5 for proper aligning of the finder.). Finder Tripod Extender Lock （Fig-1） （Fig-2） Mounting Image 4.Installing the Eyepiece Adjust the height of tripod by extending the elevator part by loosening the elevator locking screw. To observe an erect image with the telescope, you must use an eyepiece. For astronomical observation, you should use diagonal and eyepiece. Firstly, remove Reverse Side both ends of caps on diagonal, Attach the eyepiece with the star diagonal like shown on the picture below and tighten the locking screws. For observation object on the ground, attach the eyepiece with the erecting prism like shown on the picture below. (See page 6 for attaching method) Telescope Tube Swing Locking Screw ●To observe celestial objects ●To observe objects on the ground Eyepiece Eyepiece... -
Page 5: Aligning The Finder Scope
安全上のご注意 Aligning the Finder Scope ◆天体望遠鏡をご使用の前に◆ ●What is a finder scope? If you try to find a star with a telescope from the very beginning, it is very hard to catch the target astral object due to high-powers and narrow field of view of the telescope. The finder has a lower-powers and wider field of view compare to the main telescope and it is easier to find the positional relations between the stars. You can see the reticle in the center field of the finder and set the target astral object at this cross point.In order to smoothly introduce the target astral object to the main tube through the finder scope, the finder must be collimated (aligned) with the telescope first. Please align the optical axis of the finder scope through the following steps before observing. ●Steps to align the finder scope By adjusting (tighten or loosen) the 3 adjust- ment screws on the finder bracket, the direction It is better to carry out most of this procedure of the finder can be changed. during the daytime. 20ｍｍEyepiece Adjustment screws （3locations） Locking Screws Erecting prism For example, by tightening the adjustment screw 1) Aim the telescope at a small object that is on the top and loosening the two adjustment about several km away, such as a chimney top screws on the bottom, the finder can be turned or tip of an antenna. to face upwards (see the picture below for reference). Ｔightening the adjustment screw 2) Center the object in the eyepiece. Ｌoosen the adjustment screws 【View observed by telescope-tube】 4) When the object seen through the main tube has been centered on the crosshair of the If it is not focused, slowly turn the focusing finder, slowly tighten the adjustment screws knob until the object comes into focus. equally to fix the finder. ... - Page 6 安全上のご注意 Using your telescope ◆天体望遠鏡をご使用の前に◆ ●To observe celestial objects ●To observe celestial objects with higher magnification 1) You can find the target celestial objects with your eyes. It is easier to find out with the By placing a 3X Barlow lens between the telescope planisphere or other star maps. and the eyepiece, magnification can increase 3 times more. However, it will darken and lower the resolution of the image. For this reason, please use the 3X Barlow lens only for high power observation. 3xBarlow Lens Eyepiece 2) Before using the telescope, identify your object with your eyes first. Afterwards, turn the altitude adjustment rod to move up and down. Look through the finder scope at the same time and set the object on the cross point of the finder. ●To observe objects on the ground Normally, image you see through the telescope and the finder scope will be upside down. Erecting prism can erect the upside down image. (The finder can only provide an upside down and reversed image) 3) Set the 20mm eyepiece on the telescope. After the target celestial object has entered the field Eyepiece of view of the main tube, turn the focusing knob until the object comes into focus. Eyepiece Erecting prism Focus Knob 4) If you can already see your target celestial object, try to change to the 12.5mm or 4mm eyepiece, which has a higher magnification.(See page 4 to find how to calculation the magnifica- tion) CAUTION: Never observe the sun directly through your telescope. This is very ...
- Page 7 安全上のご注意 Troubleshooting ◆天体望遠鏡をご使用の前に◆ Read the instruction manual and try these trouble-shooting tips before taking the telescope in for repair. Problem:#1 I cannot see any images through the telescope Possible problems and solutions Q) Have you set the eyepiece? A) Set the eyepiece. Q) Is there any condensation on the objective lens or the eyepiece? A) Fan the objective lens or eyepiece until it is dry. If the problem is persists, move the telescope back to indoor for natural drying. Q) Is the magnification too high? A) Use the 20mm eyepiece at the beginning stage. Q) Is the image out of focus? A) Slowly turn the focusing knob until it gets focused. Q) Are the finder and the main tube looking at different places? A) Confirm whether the finder and the main tube are looking at the same star or not. Try to do the alignment again if necessary. Problem #2 I do not know which star I am looking at Possible problems and solutions Q) Is the finder and the main tube looking at different places? A) Confirm whether the finder and the main tube are looking at the same star or not. Try to do the alignment again if necessary. Q) Is the telescope correctly facing the target star? A) Confirm that the target has been set on the center of the crosshair of the finder scope. Q) Is the magnification too high? A) Use the 20mm eyepiece at the beginning stage. If you have checked the above problems but still experiencing problems with your telescope, please contact the dealer that you bought the telescope from or branch offices of Kenko Tokina Co., Ltd.
-
Page 8: Specifications
安全上のご注意 Specifications ◆天体望遠鏡をご使用の前に◆ DESCRIPTION SPECIFICATIONS Optical Type Reflection Focal Length 360ｍｍ(14.17 in) Aperture (mm) 50ｍｍ (1.97 in) Aperture Ratio 1 ： 7.2 Limiting Stellar Magnitude 10.2 Light Gathering Power Resolution 2.4arc seconds Finder 5x 24ｍｍ Eyepiece 4ｍｍ 90x （ 270x） ( ): when used 12.5ｍｍ 28.8x （ 86.4x） the 3x Barlow Lens 20ｍｍ 18x （ 54x）...
