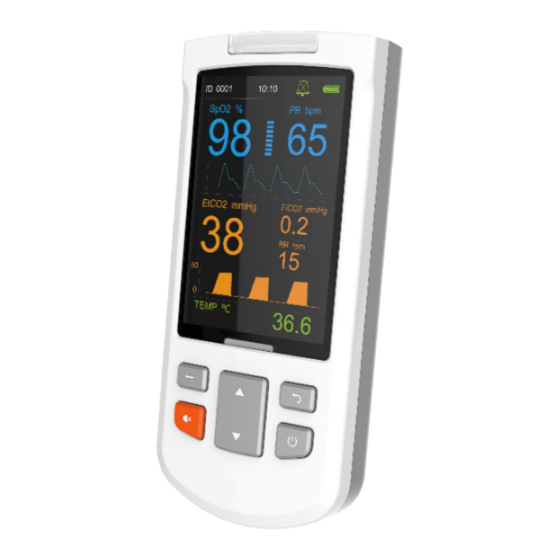

Handheld vital sign monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

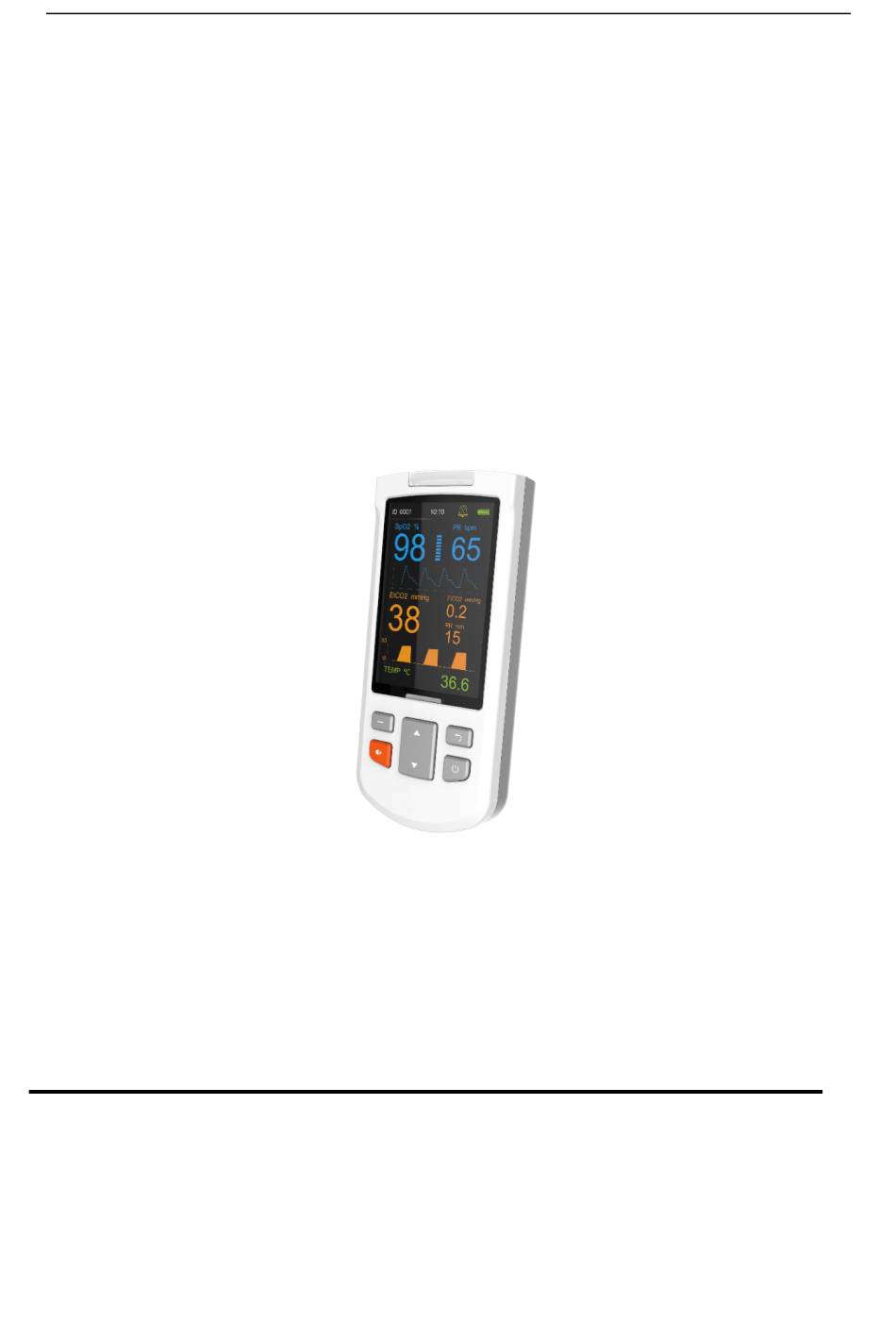

HIMA Plus Handheld Vital Sign Monito
Company name: Qinhuangdao Kapunuomaite Medical Equipment S&T Co.,Ltd.
Address: 2 Area, 5th Floor, No.10 Standard Workshop, Yanghe Road,
Economic-Technological Development Area，Qinhuangdao City, Hebi Province,
China.
ZIP code: 066000
User Manual
Tel: +86-335-8595611

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIMA Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Capnomed HIMA Plus

Summary of Contents for Capnomed HIMA Plus

  • Page 1 HIMA Plus Handheld Vital Sign Monito User Manual Company name: Qinhuangdao Kapunuomaite Medical Equipment S&T Co.,Ltd. Address: 2 Area, 5th Floor, No.10 Standard Workshop, Yanghe Road, Economic-Technological Development Area，Qinhuangdao City, Hebi Province, China. ZIP code: 066000 Tel: +86-335-8595611...
  • Page 2 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Email: info@capnomed.cn Web site: www.capno-med.com...

  • Page 3: Table Of Contents

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Contents Product Overview............................- 4 - 1.1.Application background.........................- 4 - 1.2.Intended use............................- 6 - 1.3.Product structure............................ - 6 - 1.4.Working, transportation and storage conditions................- 6 - 1.5.Technical specifications........................- 6 - 1.6.Product Safety Classification.......................

  • Page 4: Product Overview

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 1. Product Overview 1.1 Application background The handheld vital signs monitor integrates blood oxygen measurement, end-expiratory carbon dioxide monitoring, body temperature monitoring and other functions. It uses a color display to display blood oxygen saturation, pulse rate, EtCO2, respiration rate, body temperature, and system information.
  • Page 5 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） b End-breathing carbon dioxide concentration (EtCO2) Human tissue cells produce CO2 through metabolism, which is then transported to the lungs through capillaries and veins through the body, and is excreted from the body during exhalation.

  • Page 6: Intended Use

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） calculate the carbon dioxide concentration in the breathing gas mixture based on the ratio of the light of the two measurement channels. 1.2 Intended use Hand-held vital signs monitors are suitable for medical institutions to perform spot...
  • Page 7 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） The total light output power of the sensor led is less than 15mw. Anti-interference Automatic anti-interference Anti-interference Strong anti-hypoperfusion ability, strong anti-hypoperfusion ability, PR ability amplitude can reach 0.2% under the displayed value of blood oxygen.

  • Page 8: Product Safety Classification

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 1.6 Product Safety Classification Classified by type of protection against electric shock: internal power supply equipment; According to the degree of protection against electric shock: BF. Classified according to the degree of protection against ingress of liquid: IPX3;...
  • Page 9 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） approved by authorized personnel It can only be used in the occasions specified in the manual, and can only be used for the purposes described in the manual. During use, do not apply external force to the well-connected gas path.
  • Page 10 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Before use, the operator should check whether the host is damaged to ensure the normal operation of the instrument. If there is a problem with the measurement accuracy, check the patient's physical signs and whether the instrument is normal.

  • Page 11: Matters Needing Attention

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） After the instrument is turned on, please check whether all the indicators on the instrument are normal. Since SpO2 measurement passes through arteries, obstruction of blood flow under any conditions may result in inaccurate measurement of blood oxygen saturation and pulse rate.

  • Page 12: Appearance Of The Instrument

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Appearance of the instrument The appearance of the instrument is shown in the figure Keys: The instrument has six keys, which are as follows button Features menu Alarm mute Cursor up Cursor...

  • Page 13: Instructions For Use

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Instructions for use 4.1 Unpacking Take out the host and accessories from the packing box, and save the packing box for use during transportation or storage. Check whether the instrument is damaged, if there is any problem, please contact the supplier immediately.
  • Page 14 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 4.2.3. Connect the blood oxygen probe to the Y-shaped blood oxygen probe interface, or you can directly insert the blood oxygen sensor into the probe socket, and then insert the carbon dioxide sensor module into the Y-shaped carbon dioxide sensor interface, and buckle it to prevent Falling off during the test 4.2.4.

  • Page 15: Factors Affecting Performance

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 4.2.6 Inspection of the blood oxygen probe and EtCO2 module Before use, carefully read the instructions for use of the probe and EtCO2, including all warnings, cautions and instructions. Check the probe and EtCO2 module carefully before use to ensure that there is no damage.

  • Page 16: Boot

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） In patients with severe cardiopulmonary diseases, the V/Q ratio is imbalanced. EtCO2 measured by nasal oxygen tube sampling cannot be used as an indicator of ventilatory function. PaCO2 must be measured at the same time as a reference.

  • Page 17: Shutdown

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） The specific operations are as follows: The power indicator light is green. Enter the main menu, the instrument emits a beep meter. After connecting the patient to the instrument with the blood oxygen probe, the pulse search icon will be displayed in the status bar.

  • Page 18: Volume Setting

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） In the main menu interface, press the OK key to enter the menu interface, the cursor stays at the "Volume Setting", press the up and down keys to move the cursor, when the cursor stays at the content that needs to be set, press the OK key to set the content where the cursor stays.

  • Page 19: Alarm Settings

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 5.2. Alarm settings From the main interface, press the confirm key to enter the menu interface, press the down key, when the cursor moves to the alarm setting, press the confirm key to enter the...
  • Page 20 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Yellow warning light flashes Pulse rate value flashes Flashing with red Adjustable in the range The alarm tone is high temperature in bars in the alarm of 35～38.5 Didi Didi Didi bar;...

  • Page 21: Time Setting

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） The temperature The alarm bar shows that the The alarm tone is low. probe falls off temperature probe flashes; low battery The battery icon turns red After setting, press the return key to return to the previous interface.

  • Page 22: System Settings

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） ID is used to set the ID number of the result that needs to be stored. When the cursor moves to the ID, press the OK key to enter the ID setting interface, and set by the up and down keys and the confirm key.

  • Page 23: File System

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） are 6 brightness adjustable, adjust by the up and down keys. Measurement There are three test modes for adults, children and babies, which can be mode adjusted by the up and down keys.

  • Page 24: Maintenance And Maintenance Of The Instrument

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） content Method of operation file When the cursor stays at the position of the file, press the confirm key to query the saved monitoring results. system When the cursor stays at the position of the system, press the confirm key to...
  • Page 25 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Breathing loop connector is off, Check the distance between circuit leaks the tracheal tube and the threaded tube The carbon dioxide Check the connection waveform disappears and between the threaded tube and...

  • Page 26: Battery Use And Maintenance

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） repair. 6.2. Battery use and maintenance 6.2.1. Charging When the battery indicator starts to flash, charge the battery in time. Insert the TYPC port of the data cable into the charging port at the lower end of the instrument, and insert the USB port of the other end of the data cable into the USB port of the charger.

  • Page 27: Waste Treatment

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） Note: 1. Dilute the cleaning solution according to the manufacturer's instructions or use the lowest possible concentration each time. 2. Do not immerse part of the equipment in liquid. 3. Do not pour liquid on the equipment or accessories.

  • Page 28: Alarm And Indication

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 7. Alarm and indication The instrument is equipped with an alarm status indicator and a sound alarm. The operator should face the display of the instrument and operate and observe at a distance of 0.3m to 2m.

  • Page 29: Mute

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 7.3. Mute When the alarm sound is off, the yellow alarm mute indicator is located at the top of the display, that is, the alarm mute indicator will light up. Press the alarm mute button again to reactivate the audible alarm.

  • Page 30: Sound Characteristics

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 0～150 0～150 Inhaled carbon dioxide (mmHg) Suffocation sec Note: 1. This instrument can only store one alarm preset; 2. After the instrument is powered off and restarted or the instrument is restarted, the instrument automatically saves the shutdown preset alarm threshold;...

  • Page 31: Description

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 8.1．Description HIMI Plus Handheld Vital Sign Monito only suitable for professional healthcare environment . 8.2．precautions in use Using accessories, transducers and cables other than those specified may result in increased electromagnetic emission or decreased electromagnetic immunity of the patient monitoring equipment.
  • Page 32 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） ±6 Contact Electrostatic discharge (ESD) ±6 kV Contact discharge discharge IEC 61000-4-2 ±8 kV air ±8 kV air Electrical fast transient/burst ±2 KV to power cord IEC 61000-4-4 ±1 KV to input/output ——...
  • Page 33 HIMA Plus Handheld Vital Sign Monito User Manual（1.0） IEC61000-4-3 Frequency b) (W) TEST (Test (MHz) (MHz) LEVEL specifications (V/m) TETRA Pulse ENCLOSURE –390 modulation PORT b) 18 Hz IMMUNITY to GMRS FM c) RF wireless –390 460, ± 5 kHz...

  • Page 34: Quality Promise

    HIMA Plus Handheld Vital Sign Monito User Manual（1.0） 2450, LTE Band 5240 WLAN Pulse 100 – 802.11 modulation 5240 5 800 b) 217 Hz 5785 NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m. The 1 m test distance is permitted by IEC 61000-4-3.
