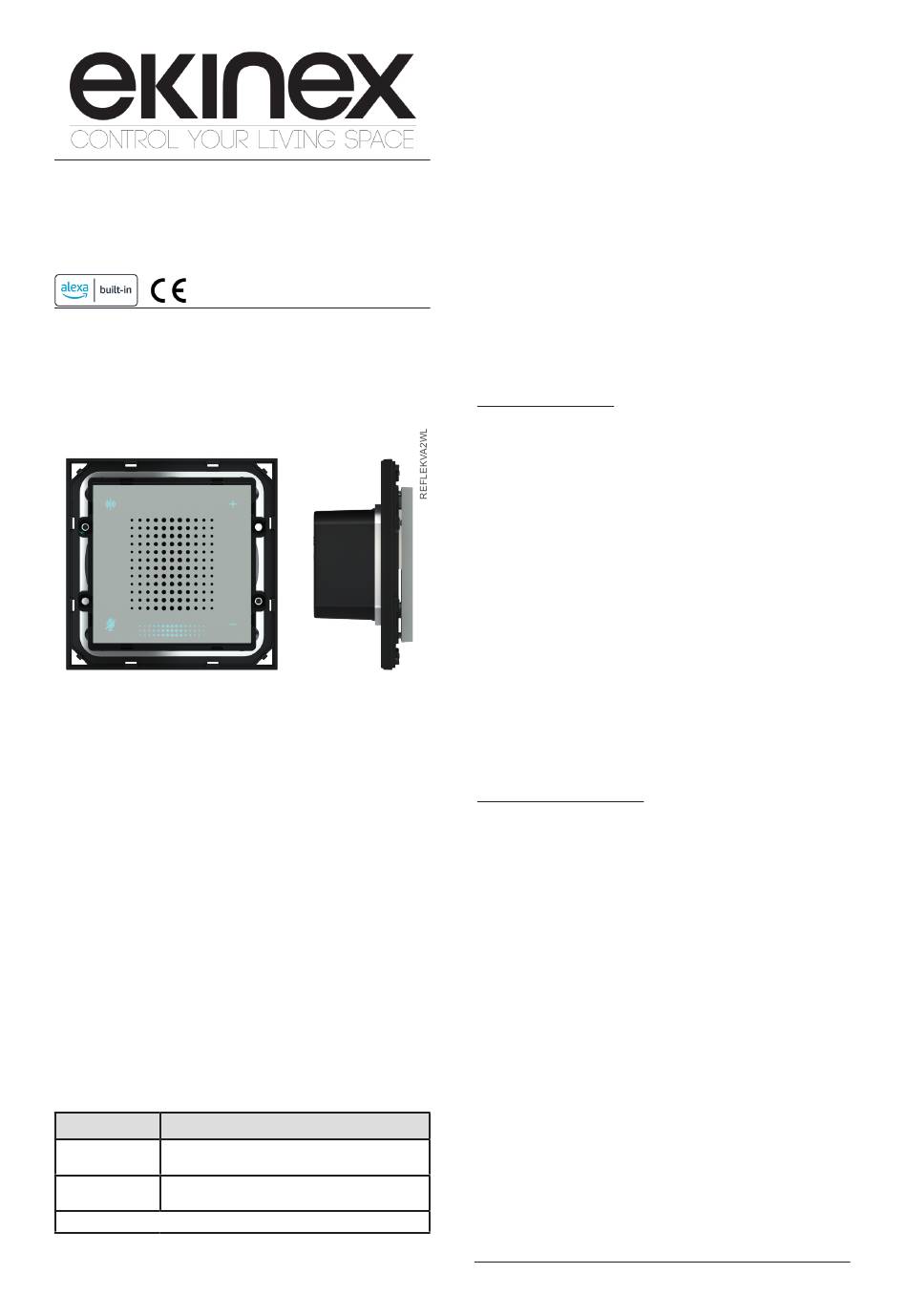

Amazon Alexa voice assistant for wall-
mounting installation
Code: EK-VA2-WL
Voice assistant for wall-mounted box installation, based
on Amazon Alexa platform and built-in Alexa certified.
Compatible with Deep and Surface series plates. Equip-
ped with Wi-Fi and Bluetooth connections, it can be instal-
led in any home system.
Description
The ekinex
EK-VA2-WL -... device is a voice assistant
®
for wall installation with Wi-Fi and Bluetooth connections,
based on the Amazon Alexa platform and Alexa built-in
certified. The device is aesthetically and mechanically
compatible with the current ekinex
ti series, so that it can be installed both in a 2-place or
3-place box. Programming is intuitive and is done via
Bluetooth connection via a special app, available for both
iOS and Android smartphones. The interface with 4 RGB
LED backlit keys allows to manually activate the voice as-
sistant, activate / deactivate the microphone and adjust
the speaker volume. The device can integrate with the
KNX network via the ekinex
or the ekinex
EK-BW1-TP voice control interface. It is
®
also supplied with a front cover already connected in pla-
stic material, which can be painted on request in the same
finishes in plastic, metal or Fenix NTM
in the catalog. The device is powered at 12-24Vdc with an
external power supply (not supplied by ekinex
Versioni
Product code (*)
Voice assistant (electronic device + cover) for
EK-VA2-WL-...
round or square wall-mounting box
Voice assistant (electronic device + cover) for
EK-VA2-WL-...-R
rectangular 503 wall-mounting box
(*) To be completed with the extension for colour
Datasheet STEKVA2WL_EN
71 series and 20ven-
®
Delégo supervision system
®
shades available
®
).
®
Description
Main functional characteristics
• Cloud-based voice assistant
• Amazon Alexa built-in certification
• Ability to request information and manage compatible
devices, apps and services to perform specific actions,
including smart home commands
• Stand-alone operations via Wi-Fi and Bluetooth con-
nection
• Programming via Bluetooth with iOS 9.1 or Android 5.1
(or higher) apps
• Integration with KNX network via ekinex
pervision system or ekinex
interface
• Interface with 4 backlit buttons with RGB LEDs for ma-
nual activation, ON / OFF microphone, speaker volume
adjustment
• Front cover in plastic material, paintable on request in
the same plastic, metal or Fenix NTM
ble in the catalog
Other characteristics
• Housing in plastic material
• Wall installation in flush mounting box
• Protection degree IP20 (installed device)
• Classification climatic 3K5 and mechanical 3M2 (accor-
ding to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 59 g
• Dimensions 65 x 65 x 38.5 mm (LxHxW)
Technical data
• Power supply: 12-24 Vdc (min. 9 Vdc)
• Input current in stand-by: 150 mA @ 12Vdc
• Maximum input current: 300 mA @ 12Vdc
• Speaker output power: 1 W
• Audio reception range: 5 m (in optimal ambient audio
condition)
• Array of 2 microphones
• Wireless device compliant with 802.11b/g/n standard,
frequency 2.412 - 2.484 GHz
• Bluetooth version 4.2 connectivity
• Maximum power: 7.2 W
Environmental conditions
• Operating temperature: - 5 ... + 45°C
• Storage temperature: - 25 ... + 55°C
• Transport temperature: - 25 ... + 70°C
• Relative humidity: 95% not condensing
Delivery
The metal support, the fixing screws (2 pairs), the termi-
nal block for the connection to the power supply and the
front cover (already connected to the voice assistant) are
delivered with the device.
Finishing plate and possible frame
The device has to be completed with a ekinex
plastic, metal or Fenix NTM
have (at least) a 60 x 60 mm window and is used in com-
bination with a plastic adapter for mounting with the Deep
or Surface series.
1
Delégo su-
®
EK-BW1-TP voice control
®
finishes availa-
®
plate in
®
material. The plate must
®
