NN106
MULTI INPUT MIXER
USERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NN106 and is the answer not in the manual?

Questions and answers

Related Manuals for Formula Sound NN106

Summary of Contents for Formula Sound NN106

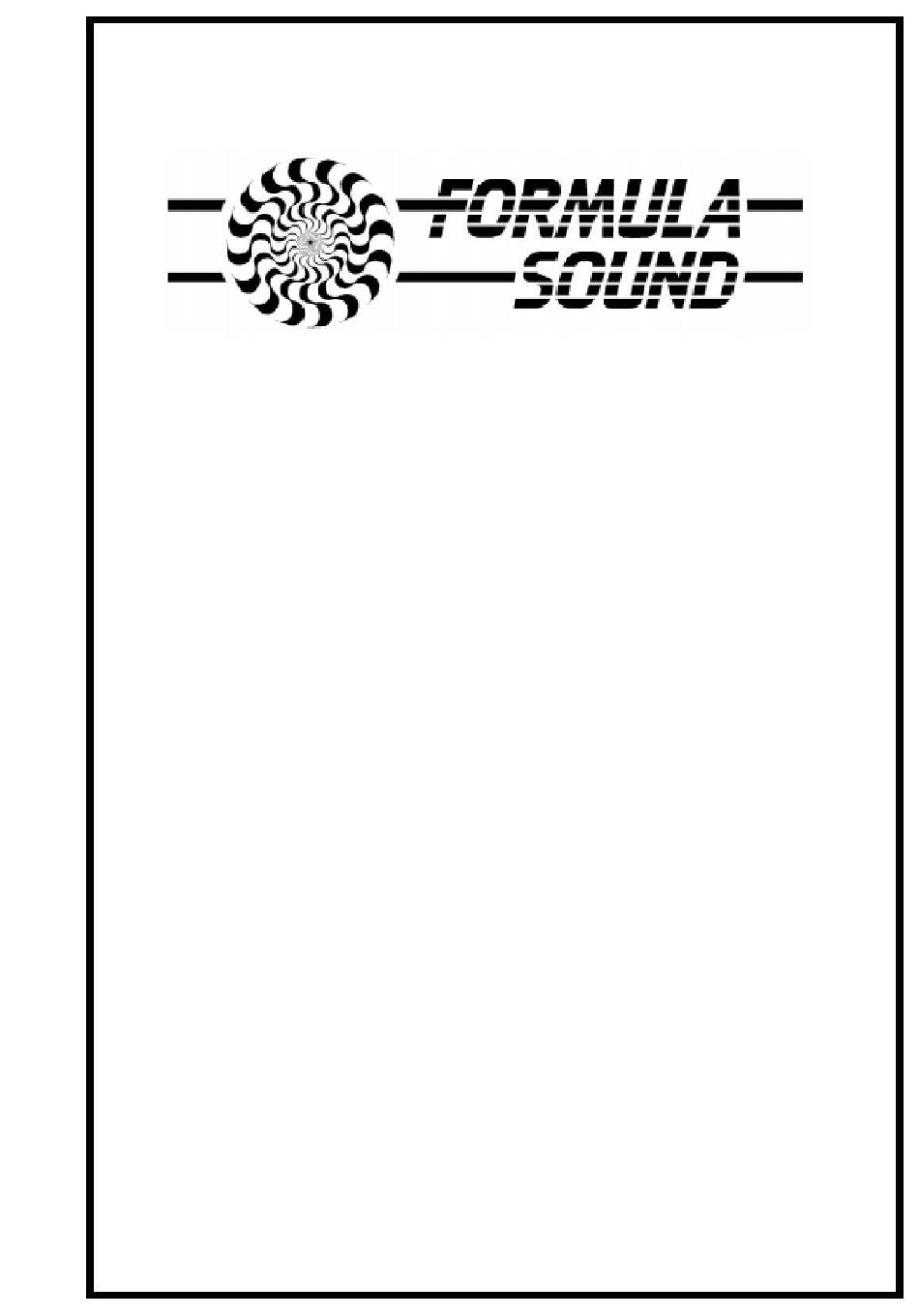

  • Page 1 NN106 MULTI INPUT MIXER USERS MANUAL...
  • Page 2 NN106 INTRODUCTION The features and layout of the NN106 are intended to provide the user with a creative tool suitable for DJ mixing, live mixing and home studio mixing. The NN106 has 6 channels, each channel has four inputs selectable by a rotary switch, the fourth input is fed from a single dual stereo USB input.
  • Page 3 unbalanced operation with no loss of signal, master level is indicated on a stereo 12 LED meter with volume control below the meter. There is an insert (stereo jack) in the master output enabled by a push switch and a VOICEOVER facility enabled by a switch and operated by the console MIC plus any channel MIC selected to the MIC buss providing the MIC buss is set to be out of the booth.
  • Page 4 Mechanical and Power Supply Dimensions (Excluding. Knobs & connectors): Width 342mm (13.5") Height 355.3mm (14"-8RU) Depth 110mm (4.33"). Power Supply There is a fully regulated power supply that is designed to operate on 220-240Vac or 110- 120Vac. Voltage is factory set. THE POWER SUPPLY MUST HAVE A MAINS EARTH CONNECTION, THE EARTH OF THE MIXER IS TESTED BEFORE SHIPPING HOWEVER THE USER MUST ENSURE THE POWER SUPPLY THE MIXER IS CONNECTED...

  • Page 5: Input Channels

    Input Channels All channels have 4 inputs, the required input is selected on a rotary input select switch at the top of the channel. Each channel has a MIC input, line input and a feed from one of the 2 USB stereo inputs.

  • Page 6: Usb Input

    Channels 1 & 2 have a balanced stereo line input is on a pair of ¼” 3 pole jack sockets for input switch position 3. Channels 3 – 6 have a phono input on RCA phono connectors on input switch position 3, this phono input has an input capacitance selection switch (4 positions) and a gain trim accessible through the back panel.

  • Page 7: Output Section

    NN106 earth). The Amanero USB module provides 2 stereo channels, these 2 channels are routed to all 6 channels of the NN106 and each channel can selects USB stereo 1 or USB stereo 2 on a recessed switch.

  • Page 8: Master Output

    Master output The master output is on a pair of balanced XLR connectors, there is a 12 LED stereo meter and volume control labelled MASTER. There is a voiceover facility in the master section which allows a signal on the microphone buss to automatically reduce the music level by an adjustable amount.
  • Page 9 The AUX contains a summed signal of each channel with AUX selected, the level of the summed AUX 1 signal is adjusted by the volume control marked AUX. The AUX signal is balanced stereo on a pair of ¼” jack sockets. ZONE output A balanced stereo zone output is provided on a 6 pin rectangular connector, the zone output is controlled by a remote panel (not included) that connects to an adjacent 3...

  • Page 10: Record Output

    MONO and SUB BASS outputs There is a pair of ¼” 3 pole jacks on the back panel with balanced outputs for mono and sub-bass.. Record output A record output is provided on a pair of RCA phono sockets. Remote mute The remote mute connection is on a 2 pin rectangular connector, shorting pin 1 and pin 2 will mute the mixer with the exception of the console microphone and any channel microphones set to MIC buss with MIC buss selected post booth.
  • Page 11 2:1 compression. Generally the factory setting is suitable for most uses of the compressor but following this routine should help if you want an individual setting. Formula Sound Limited Unit 23; Stadium Business Centre North End Road...
  • Page 15 6 A message will pop up to say the Superstereo driver is installed. 7 Once you have pressed the finish button, you can then connect to the NN106 USB port. 8 To configure the soundcard for use goto Hardware and Sound in the control panel and click on Manage audio devices.

  • Page 16: Technical Specification

    APPENDIX 5 Technical specification All figures are at 230V setting and 20 C room temperature. Power supply 230V +/- 10% or 115V +/- 10%. Parameter Rating Noisefloor, 0dB output setting channel faders down <-80dB Phono noise floor, 0dB setting, 1 channel fader up. <-56dB (Deck connected) Mic input, 0dB setting EIN...
  • Page 17 FORMULA SOUND LIMITED UNIT 23; STADIUM BUSINESS CENTRE; NORTH END ROAD; WEMBLEY; MIDDLESEX; HA9 0AT TELEPHONE +44 (0)208-900-0947 FAX +44 (0)208-903-8657 www.formula-sound.co.uk email info@formula-sound.co.uk E.U. CERTIFICATE OF CONFORMITY We declare that the products listed conform to the following directives and standards...
