INCRA Router Tables & MagnaLOCK Plates

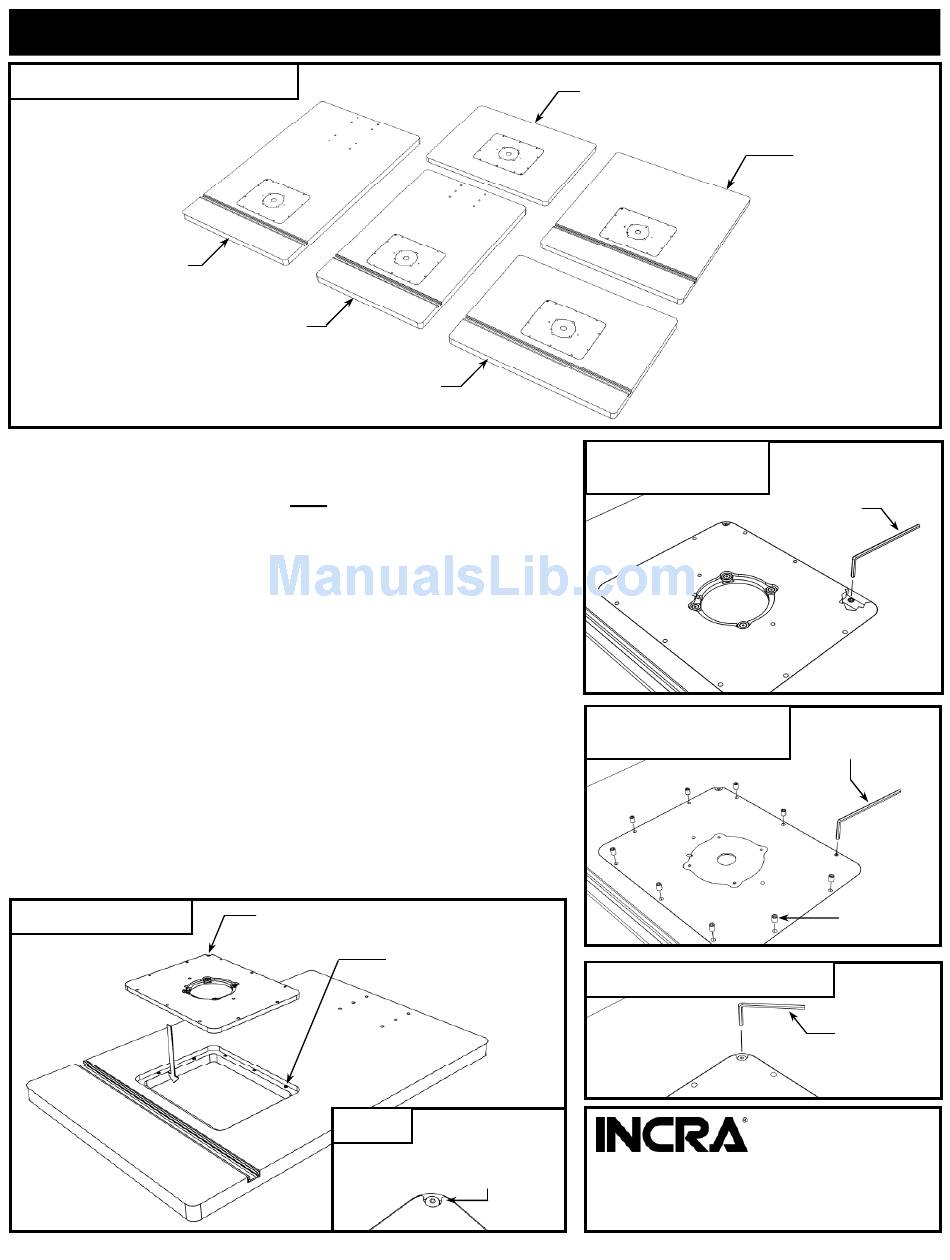

Fig. 1 INCRA Router Tables
27" x 43" Offset Router Table
Optimized for LS25 Positioner
24" x 36" Offset Router Table
Optimized for LS17 Positioner
Step 1. Install Magna-LOCK plate in router cutout.
Rotate the cam screw in one corner with the 1/8" hex key until the head
clears the inside of the plate recess AND the head is JUST BELOW
the top surface of the plate, Fig 2A. Now orient the plate as shown in
Fig. 2, and lower it into the table. DO NOT tighten the cam screw yet.
Step 2. Adjust plate levelers for INCRA tables.
Using the 5/32" hex key, adjust the (10) 5/16-18 x 1/2 socket head
screws to level the plate flush with the top surface of the router table,
Fig. 3.
Step 2A. Adjust plate levelers for Non-INCRA tables.
First install the (10) 1/4-20 x 3/8 socket set screws in the plate. Then,
using the 1/8" hex key, adjust all (10) of these set screws to level the
plate flush with the top surface of the router table, Fig. 3A.
Step 3. Lock plate in table.
Turn the cam screw clockwise to firmly lock plate in the table, Fig. 4.
Only light clamping pressure is needed to immobilize plate. Do not
over tighten. Be sure the cam screw is below the surface of the plate,
but not so far down that it is bottomed out.
Fig. 2 Install plate
24" x 32" Center Mount Router Table
For INCRA Wonder Fence
See detail in Fig. 2A
5/16-18 x 1/2 socket head
screws (factory installed) - (10)
Fig. 2A
28" x 21" Left Side TS Router Table
For INCRA TS-III Table Saw Fence System
Fig. 3 Level plate
INCRA router tables
Fig. 3A Level plate
Non-INCRA router tables
Fig. 4 Lock plate in table
Cam screw is rotated to
clear inside of plate
recess, and should be
www.incra.com
below surface of plate.
1
28" x 32" Right Side
TS Router Table
For INCRA TS-III Table
Saw Fence System
5/32" hex key
Second: Adjust
with1/8" hex key
First: Install (10)
1/4-20 x 3/8
socket set screws
1/8" hex key
Made in America by:
Taylor Design Group, Inc.
PO Box 810262
Dallas, TX 75381
Phone: 972-242-9975
