GENERAL DESCRIPTION

The TAU-RI-01 remote indicator is an output device which, activated by the control panel, switches on its red light in the event of an emergen-
cy fire alarm. It is battery powered and doesn't need any system cabling installation.
The activation command is sent from the control panel to the indicator through the wire to wireless translator interface modu le and other
possible wireless expander modules. It is intended to be used within the HyfireTaurus range of products.

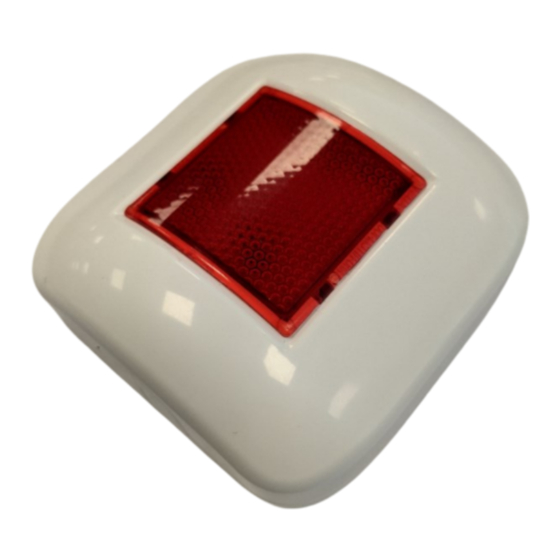

Picture 1

DEPLOYMENT PROCEDURE

1) Select a location for the remote indicator. See LOCATION SELECTION.
2) Unbox the remote indicator from its packaging.
3) Power up the remote indicator. See POWERING UP - FIRST TIME USE / POWERING UP - RECOVERY.
4) Link the remote indicator to the system. See LINKING - WAKE-UP / LINKING - ONE-BY-ONE.
5) Install the back cover. See FIXING THE BACK COVER.
6) Install the device onto the back cover. See HOW TO REMOVE AND REINSTALL THE FRONT COVER.
7) Test the remote indicator. See TESTING.

LOCATION SELECTION

Select a location for the remote indicator that conforms to your local applicable safety standards and that is in a good posi tion for sending /
receiving wireless signals to / from the father TAU-TRM-01, TAU-CEM-01 or TAU-EXM-01 network device.
Mount the remote indicator as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors,
cables (especially from computers), otherwise the operating distance may greatly drop.
The TAU-RI-01 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless communication
quality.
Hyfire Wireless Fire Solutions Ltd - Unit B12a, Holly Farm Business Park, Honiley, Warwickshire,
CV8 1NP - United Kingdom
Wireless Remote indicator
Link program
switch
It is advisable to use the TAU-STK-01 survey kit
to locate a good wireless installation location.
TAU-RI-01
Tamper
switch
Battery B
housing
Battery A
housing
www.hyfirewireless.com
1
