Summary of Contents for Aqualin YL21076

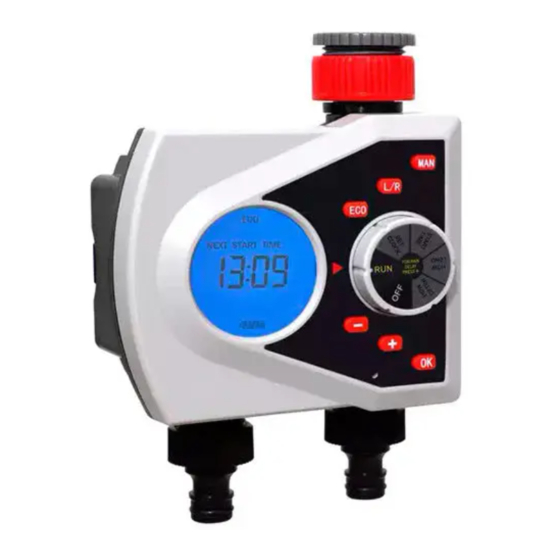

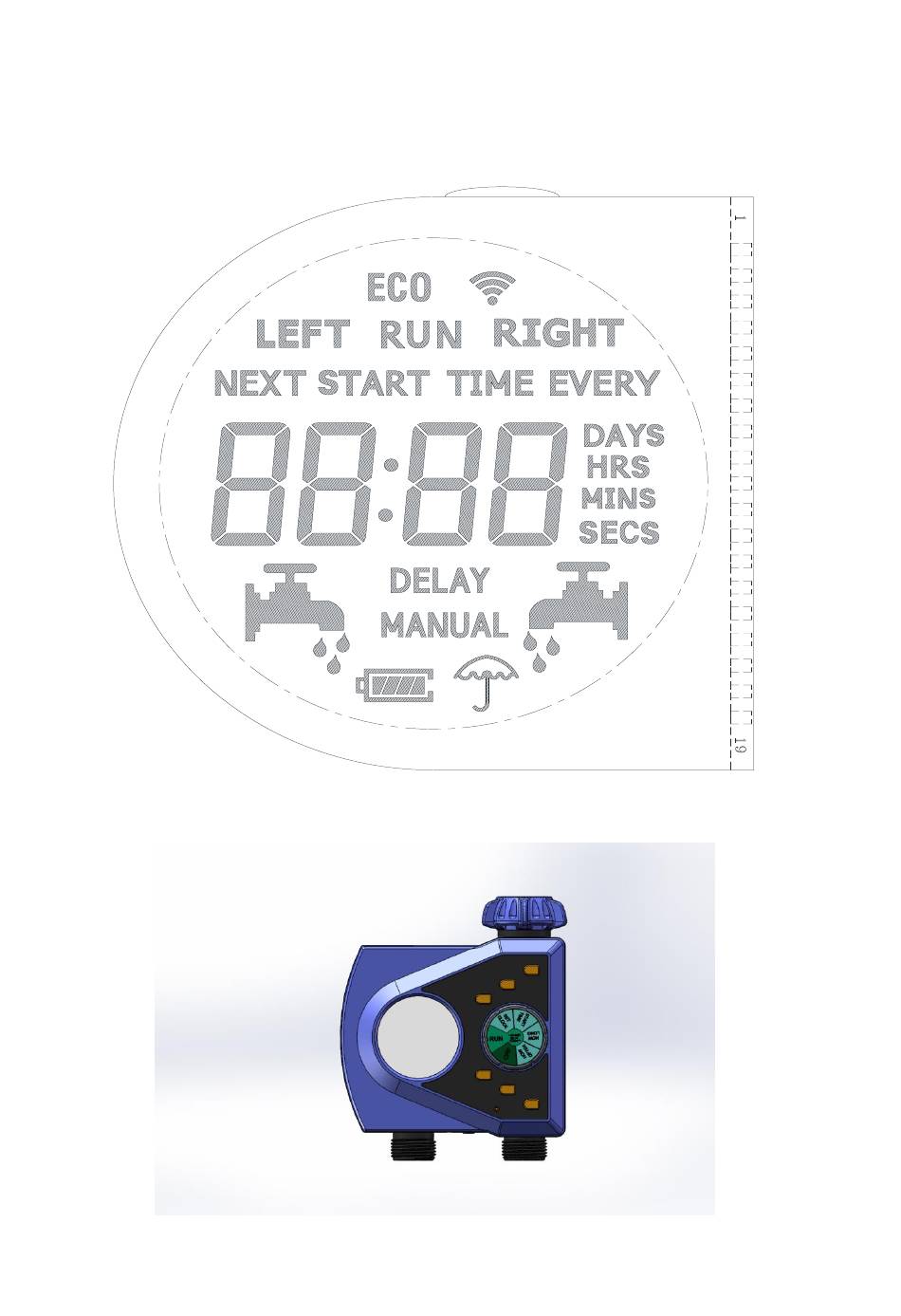

- Page 1 YL21076 Double Outlet Water Timer Manual Dial and button...
- Page 2 Button description: MAN: manual watering, 1-240 mins, default is 30 mins +: When timer is under settings, + serves as a plus button; when dial is at AUTO, + serves as a setting button for Rain Delay -: serves as a minus button OK: to confirm a setting L/R: to shift between left or right valve ECO: Ecological watering...
- Page 3 MANUAL: to set one time manual watering from 1-240 mins When dial is at RUN, if press MAN button, timer will entering manual watering mode, display shows as picture 6 Press L/R button to choose left or right valve(as picture 6 or 7) ...
- Page 4 Display will show clock time and OFF (as picture 12) every 2 seconds in alternative. Battery sign: Voltage is over 3V: battery sign is full(as picture 13) Voltage is at 2.6V-3V: battery sign is half(as picture 14) Voltage is below 2.6V: battery sign is empty and the sign will blink quickly(as picture 15) (valves are closed, auto and manual watering are both closed) How to set: ...
- Page 5 How to set clock time Turn dial to SET CLOCK, as picture 16 Digits for hours will blink, make settings and confirm by pressing OK button, then digits for minutes will blink, make settings and confirm by pressing OK button ...
- Page 6 How to set How Long (1-240 mins) Turn dial to HOW LONG, as picture 21 Press L/R button to shift between left and right valve(as picture 22 and 23) Press OK button or + button, to confirm valve, display will show as picture 22 or 23, then is ok to set the watering duration ...
- Page 7 How to set How Often( 4 hrs, 6hrs, 12hrs, or 1-15 days Turn dial to HOW OFTEN, as picture 25 Press L/R button to shift between left and right valve(as picture 25 and 26) Press OK button or + button, to confirm valve, display will show as picture 25 or 26, then is ok to set the how often ...
- Page 8 Rain sensor or moisture sensor connection At the bottom of the timer, there is a connection point for rain sensor or moisture sensor. The sensor type is NC(normally closed). When it is activated, the switch is off, then timer will skip all auto run watering programs, until rain is over or soil go dry again.
- Page 9 Smaller watering duration can be set from 1 minutes to larger watering duration, pause watering time can be set from 1-240 mins Display will show ECO icon after setting is saved...
