SloanLED 601146 Installation Manual

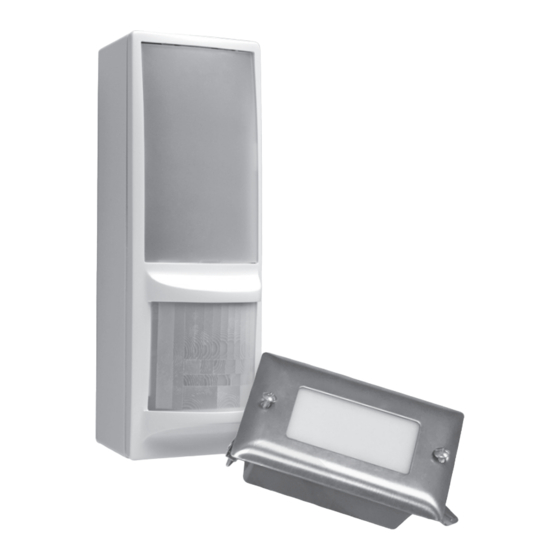

Touchless Occupancy Indicator System
Installation Guide for 601146, 601147, 601148, and 601153

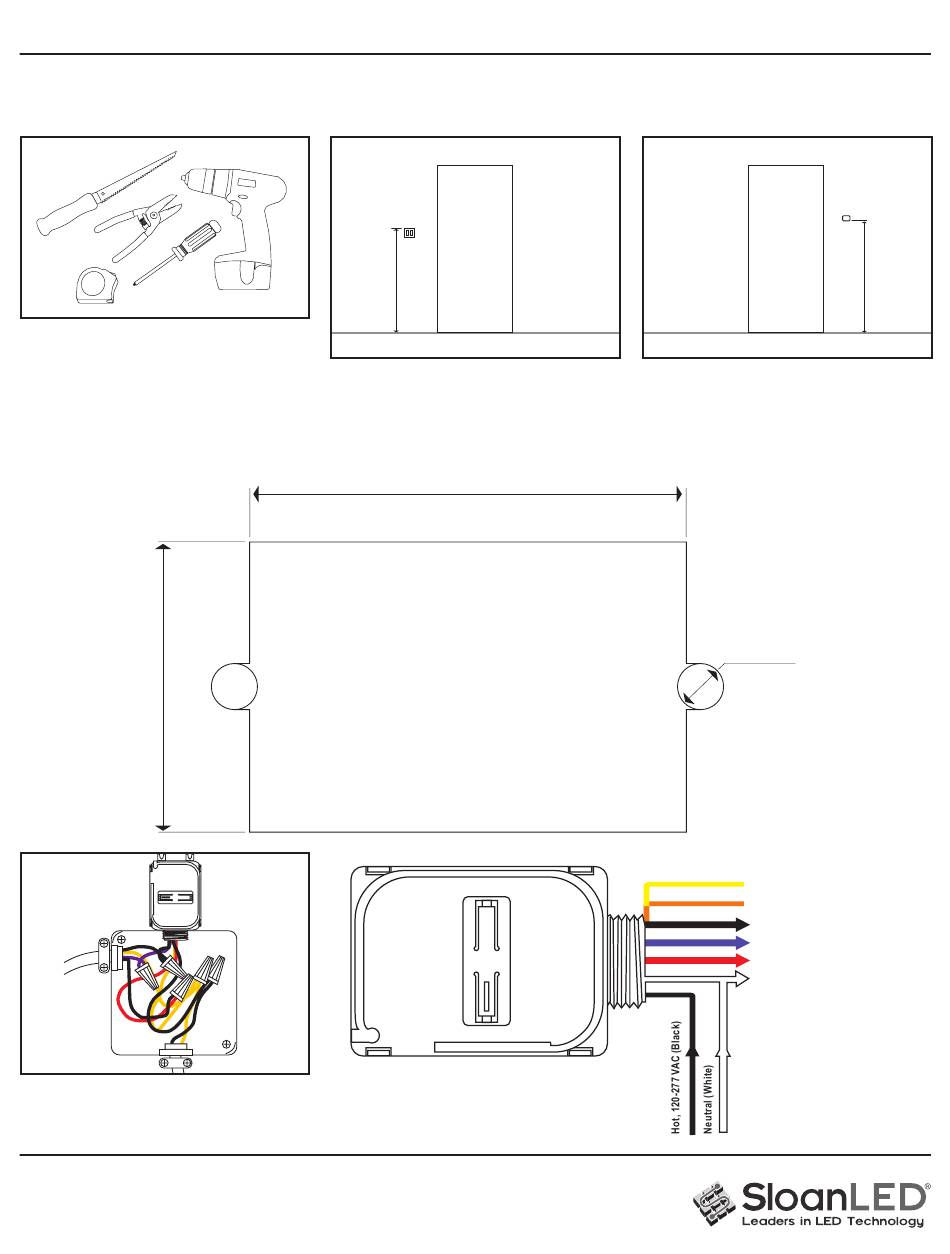

Occupancy Indicator Light Installation

1. Tools required: Wire strippers, drill, tape
measure, screwdriver, and drywall saw.
Cutout template
2.375"
(60 mm)
4. Receiver mounting: Wireless receiver
mounts to electrical box using threaded
connector as shown.
Inside restroom
H
2. Wireless receiver and indicator light
location: Locate switch inside restroom.
Measure height to top of outlet box.
(shown to scale)
5. AC voltage wiring: Connect line voltage to
BLACK wire and neutral to WHITE wire. RED
and YELLOW wires are not used.
3.5625"
(91 mm)
Outside restroom
3. On opposite side of wall (outside of restroom),
measure 3" (76 mm) above height of switch
and make cutout for indicator light as shown
in "Cutout Template" shown below.
Ø .375" (10 mm)
External sensor in
12V DC out
0-10V- (Gray)
0-10V+ (Purple)
Relay load (Red)
H+3"
(76 mm)
Yellow wire
capped, not used
Orange, Gray,
and Purple wires:
Connect to indicator
light connector
Red wire capped,
not used
PAGE 1 OF 3
