TRM84

4 input - 8 tuner

DVBS/S2 to DVBT/C transmodulator

USER MANUAL V1.0

Table of Contents

Need help?

Do you have a question about the TRM84 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anttron TRM84

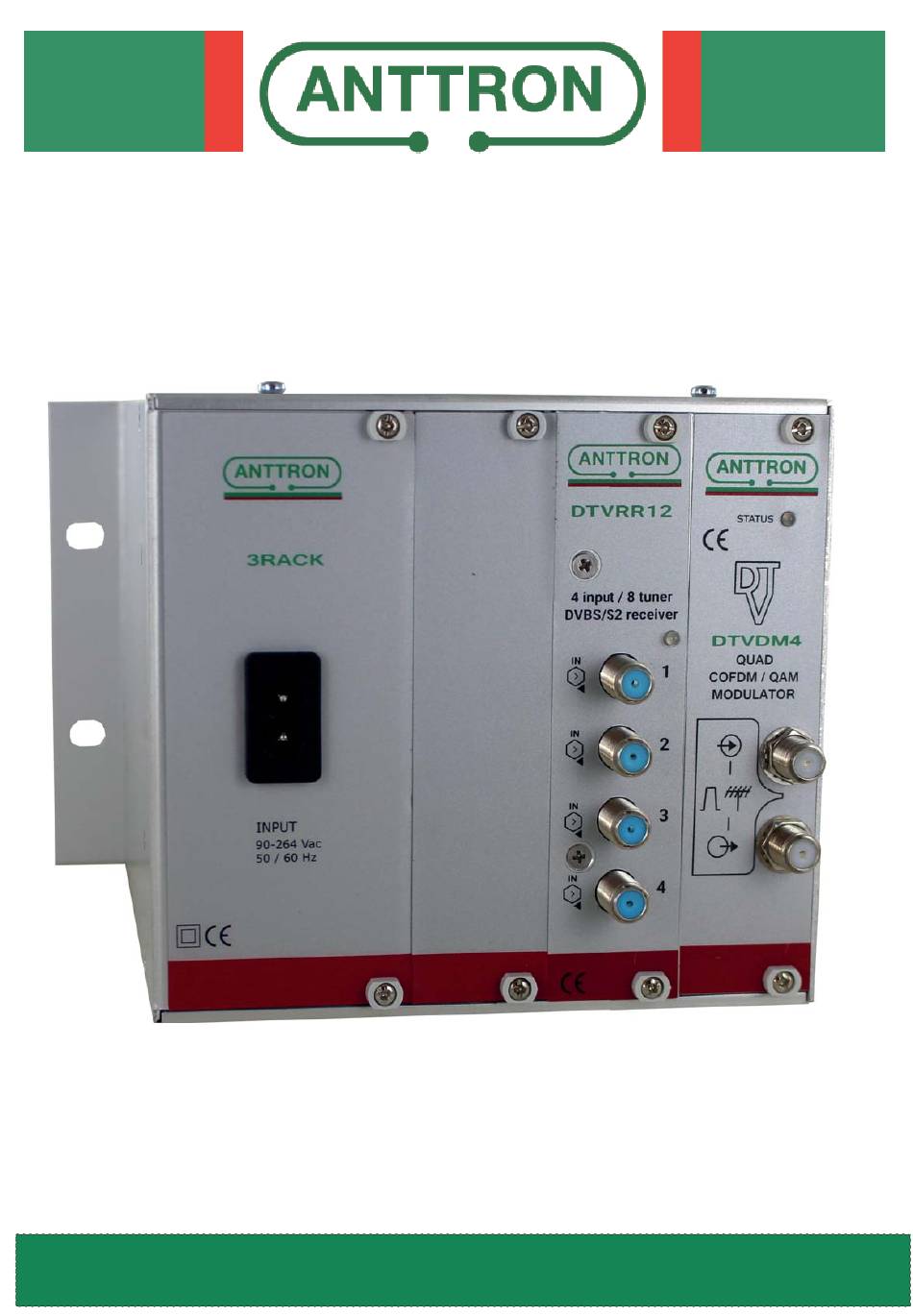

Page 1 TRM84 4 input - 8 tuner DVBS/S2 to DVBT/C transmodulator USER MANUAL V1.0...
Page 2: Table Of Contents

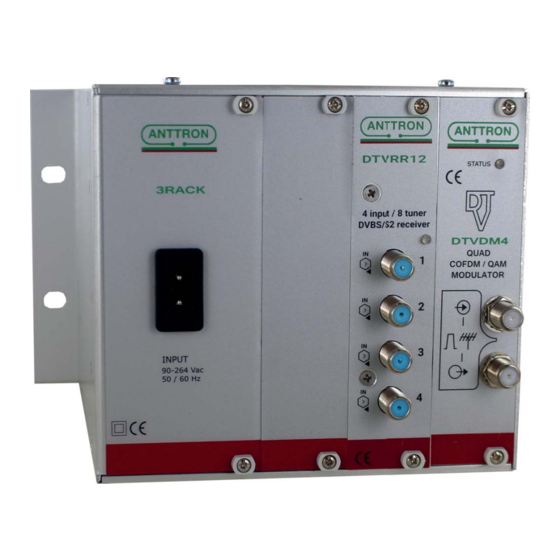

USER MANUAL Application The TRM84 is composed of a 3RACK with a DTVRR12 and DTVDM4F module. The combination of these modules allows the conversation of satellite signals using DVBS or DVBS2 modulation in DVBT or DVBC signals. The DTVRR12 module has 4 inputs and integrates a 4x8 multiswitch. The 8 tuners (A,B,C,D,E,F,G,H) can select the satellite signal from inputs 1,2,3 and 4.
Page 3: Safety Considerations
TRM84 USER MANUAL 1. - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before carrying out maintenance operation or modiﬁ...
Page 4: Description Of The Different Elements
TRM84 USER MANUAL 2 - Description of the different elements AC input Satellite input 1 Satellite input 2 Satellite input 3 Satellite input 4 RF input RF output USB connection (for PC connection) RJ45 connection (for LAN or webconnection) ANTTRON ©2022...
Page 5: Installing The Software Dtviface
After installation, you can startup DTVIface using the new icon available in the program list in the Start menu of your computer. Once the TRM84 connected with the USB cable and after starting up the unit, please launch DTVIface. You should see the following screen.
Page 6: Programming
TRM84 USER MANUAL 4- Programming 4.1 - Programming the DTVRR12 First of all, deﬁ ne for each input (1..4) the tone, polarity and DiSEqc command. Once deﬁ ned, program the necessary tuners (A,B,C,D,E,F,G and H) . For each tuner needed, please follow this procedure :...
Page 7: Setting The Parameters Of The Modulator
TRM84 USER MANUAL If the status for a tuner is GREEN, then the list of programs received will be shown. In the list you will ﬁ nd following information : Satellite tuner : A, B,C, D, E, F, G, or H Service ID of the received program Service name of the received program.
Page 8: Adding Services (Programs) To The Modulator
TRM84 will reboot itself and will start up again with a DVBC modulator. 5.2 - Other parameters The Rate is the bit rate at which the DTVRR12 sends it transport stream to the modulator. For TRM84 please set this the maximum rate.
Page 9: Miscellanous
In order to go back to the factory settings of the TRM84, please move your mouse over the following button : Then right click, and left click. All your settings will be erased and the TRM84 will go back to its factory settings.
Page 10: Rebooting Your Headend
TRM84. 5.8 - Saving and loading a conﬁ guration DTVIface allows to save the settings you have made on the TRM84 on your PC. Afterwards this conﬁ guration can be reloaded in the TRM84 or in another TRM84.
Page 11 After modiﬁ cation of this window, a ﬁ lter symbol will appear in the list indicating that for this program an audio ﬁ lter is in place. 6 - LEDs on TRM84 6.1 - LED on DTVRR12 When the unit starts up, the LED status on the DTVRR12 is caracterised by a quick toggle between red and green.
