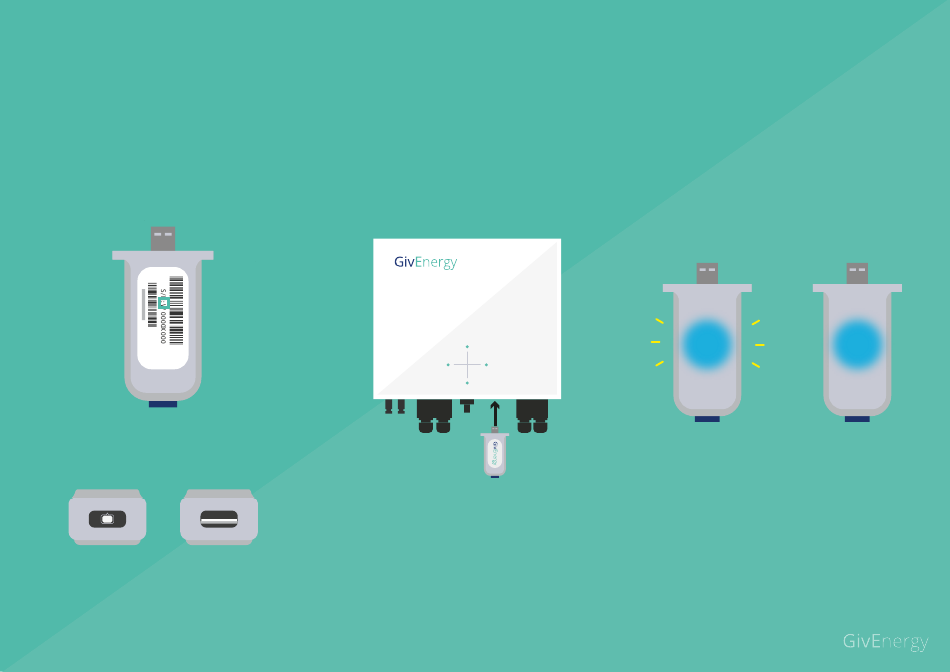

Setting up your WiFi Dongle
USB Dongles come in 2 varieties, WiFi and 4G.
WiFi dongle serial
numbers start
with W
You can tell the difference by removing
the blue rubber cap at the base of the
device and taking a look inside.
WiFi has a
4G has a
reset button
SIM card slot
Insert the dongle into the USB port
on the underside of the GivEnergy Hybrid
Inverter.
IMPORTANT! Please ensure the dongle is
screwed into the bottom of the
inverter on both sides.
The WiFi dongle can be powered up on the
USB port on the underside of the inverter,
or another USB supply if the inverter
is not yet powered up.
Flashing light
Connecting
Connected
Solid light
Advertisement
Table of Contents
Related Manuals for GivEnergy WE Series
Summary of Contents for GivEnergy WE Series
- Page 1 WiFi dongle serial Insert the dongle into the USB port The WiFi dongle can be powered up on the numbers start on the underside of the GivEnergy Hybrid USB port on the underside of the inverter, with W Inverter. or another USB supply if the inverter is not yet powered up.
- Page 2 WE / WF Serial Number Dongles Connecting to the dongle Connecting to the dongle Select Mode Access your WiFi settings. Open your Select web browser Mode Selection. Select the WiFi network (preferably Google that matches the dongle Chrome). Select serial number. STA mode.
- Page 3 WZ Serial Number Dongles Connecting to the dongle Connecting to the dongle Select Mode Access your WiFi settings. Open your Select Work Mode. web browser Select the WiFi network (preferably Google Select that matches the dongle Chrome). STA mode. serial number. Type 10.10.100.254 Click Save.
- Page 4 WE and WF serial number dongles are 2.4 gHz, WZ serial number dongles Router the GivEnergy Dongle are 2.4gHz and 5gHz. and the Internet router need to communicate. Ensure the dongles W###### WiFi network is password protected in the AP Settings page.
